Summary of Contents for Miele professional PM 1210

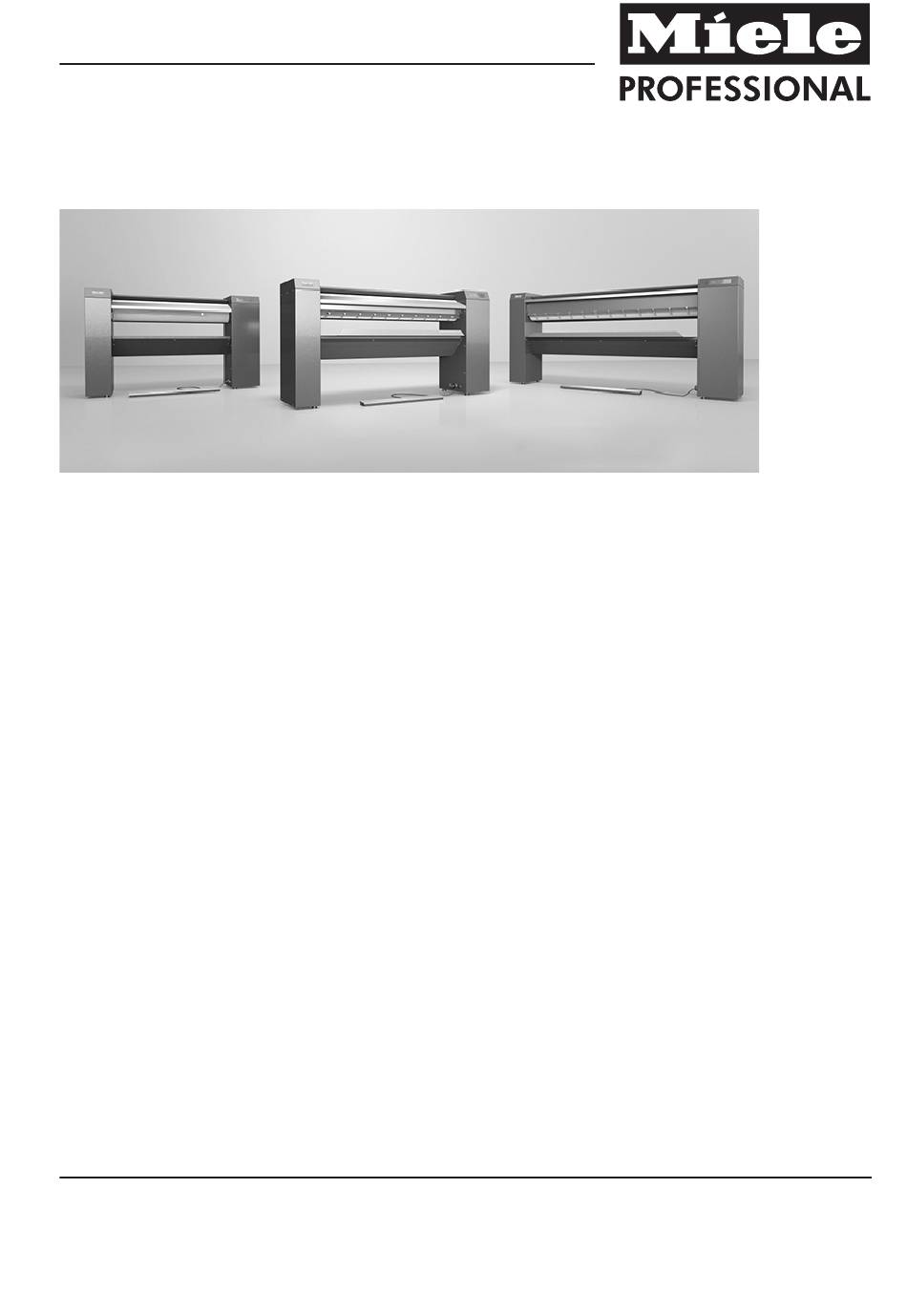

- Page 1 Operating instructions Commercial flatwork ironer PM 1210 PM 1214 PM 1217 To avoid the risk of accidents or damage to the en-AU, NZ appliance, it is essential to read these instructions before it is installed and used for the first time.
-
Page 2: Table Of Contents
Contents Caring for the environment .................... 4 Warning and Safety instructions.................. 5 Correct application........................ 5 Technical and electrical safety ..................... 5 Operation..........................6 Using accessories ........................ 6 Notes on the use of this flatwork ironer ................6 Guide to the appliance ...................... 8 Touch display ........................ - Page 3 Contents Removing the roller cover .................... 26 Fitting the roller cover..................... 27 Miele Professional Service ....................27...
-
Page 4: Caring For The Environment
Caring for the environment Disposal of the packing material The transport and protective packaging has been selected from materials which are environmentally friendly for disposal, and can normally be recycled. Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. -
Page 5: Warning And Safety Instructions
Warning and Safety instructions Please read these instructions carefully before using the flatwork ironer for the first time. They contain important information on the safety, use and maintenance of the flatwork ironer. This prevents both personal injury and damage to the appliance. If other persons are being shown how to operate the flatwork ironer, they must be given these important safety instructions and/or be made aware of them. -
Page 6: Operation
Warning and Safety instructions This flatwork ironer is only completely isolated from the electricity supply when switched off at the mains circuit breaker or it is switched off at the wall socket and the plug is withdrawn from the socket (if applicable). Operation ... - Page 7 Warning and Safety instructions Smooth out folds as far away from the infeed on the infeed table as possible. Feed pillow cases and duvet covers into the ironer with the open end first. Do not take hold of the corners from the inside. Do not take hold of straps or ties etc. from the inside of garments.
-
Page 8: Guide To The Appliance
FlexControl foot switch Infeed table Pick-off bands Finger guard Height-adjustable screw feet Roller Plinth (optional) Heater plate with cover Laundry box Laundry outfeed table Option PM 1210 PM 1214 PM 1217 Swing out bar Flexible laundry feed Leaf-spring padding Plinth... -
Page 9: Touch Display
Guide to the appliance Touch display The buttons on the touch display can be activated by a light touch with the finger. When a button is pressed, it is highlighted with a bar underneath. ... - Page 10 Guide to the appliance Display in roller speed selection mode Button Button For switching the flatwork ironer on and For increasing the roller speed. off. Button Button ...
-
Page 11: Display Symbols
Guide to the appliance Display symbols Pre-selection and temperature display in Prompt to activate the finger guard °C/°F Heating on / temperature increasing Pre-selection and roller speed display // Service indicator for cleaning and waxing Roller speed range ... -
Page 12: Finger Guard
Guide to the appliance Finger guard The finger guard is a safety feature which must be checked daily for proper functioning before the machine is used. Risk of injury due to lack of finger guard function! A malfunctioning finger guard function can lead to serious injury. Shut down the flatwork ironer immediately. -
Page 13: Swing Out Bar
Guide to the appliance Swing out bar (Optional accessory for PM 1214) Ironed laundry can be placed over the swing out bar to prevent creasing. Flexible laundry feed for throughfeed or return feed (Optional accessory for PM 1217) The flexible laundry feed mechanism enables laundry to be fed through to the back of the ironer for removal. -
Page 14: Using For The First Time
Using for the first time Cleaning and waxing the heater plate before first use Before using for the first time, the heater plate must be cleaned and waxed (see “Cleaning and care”). Clean the heater plate by passing through a Miele cleaning cloth ... -
Page 15: Operation
Residual moisture For a good result and optimum ironing performance the laundry should have the following residual moisture levels, depending on model: PM 1214, PM 1217: 15-25% residual moisture PM 1210: 15% residual moisture The ideal residual moisture level depends on the composition of the fabric. Preparing for use Switch on the on-site mains switch. -
Page 16: Ironing Temperature
Operation Ironing Select the temperature according to the type of fabric. temperature Fabric Symbol Temperature Preset value Nylon/rayon 100 - 110 °C 110°C Silks/woollens 111 - 150 °C 125°C Cottons/linens 151 - 185 °C 180°C Temperature selection buttons The temperature can be selected either by using the temperature selection buttons or the ... -
Page 17: Selecting The Ironer Speed
Operation Selecting the PM 1210/PM 1214: ironer speed Symbol Speed range / min Low speed range 1.5 - 2.2 Medium speed range 2.3 - 3.2 High speed range 3.3 - 4 PM 1217 Symbol Speed range / min ... -
Page 18: Changing The Preset Roller Speed For A Roller Speed Selection Button
Operation Changing the Press the roller speed button that you want to change the speed preset roller for. speed for a roller Keep it pressed in. The bar will light up underneath it and the current speed selection speed will appear in the display. button Press the ... -
Page 19: Pauses In Ironing
10 minutes), the temperature can be reduced to a value between 50–70 °C (factory default setting = 60 °C). The values must be set at the service level by Miele Professional Service. After a period of inactivity which can be preset, the ironer will switch to standby mode. -
Page 20: After Ironing
If the ironing process is paused during the run-on time, you must purchase more ironing time to restart the flatwork ironer. Miele Professional Service can change the duration of the run-on time to a value between 0–5 minutes. At the end of the run-on time, the heater plate disengages and the roller comes to a standstill. -
Page 21: Notes
Notes Changing the temperature unit (°C / °F) The temperature unit can be changed from °C to °F by Miele Professional Service. Favourites setting Using the Favourites button, the most used combination of temperature and roller speed can be saved so that they can be accessed quickly and easily. -
Page 22: Fault Messages
Control system fault If the fault message appears again, repeat the procedure or switch the ironer off and back on. If the fault persists, please call Miele Professional Service. In the event of a malfunction, please call Miele Professional Service. -
Page 23: Cleaning And Care
The ironers PM 1210, PM 1214 (from serial No. 120610687 onwards) and PM 1217 (from serial No. 120610797 onwards) all come with a cleaning and waxing indicator (red indicator symbol ). -
Page 24: Cleaning With The Cleaning Cloth
Cleaning and care Cleaning with the Use the Miele cleaning cloth for cleaning the heater plate. cleaning cloth As the cleaning cloth is narrower than the heater plate, the entire plate cannot be cleaned in one go. It is necessary to feed the cleaning cloth through the ironer several times, gradually moving it down the width of the heater plate. -
Page 25: Waxing The Heater Plate
Cleaning and care Feed the cleaning cloth through the ironer again. Repeat the process until you have arrived at the right side of the infeed table and have cleaned the entire width of the heater plate. The heater plate must be waxed after every cleaning process. Waxing the heater plate To start the waxing function, first press the ... -
Page 26: Roller Padding
The roller cover on the PM 1217 with leaf-spring padding roller cover must only be removed or replaced by Miele Professional Service. Otherwise there is the risk of damage to the leaf-spring padding. Please note that the laundry pick-off bands on the roller need to be fully retracted one after the other before removing the roller cover. -
Page 27: Fitting The Roller Cover
Service should check whether the carbon brushes in the drive motor need to be replaced as well. Miele Professional Service In the event of a malfunction, please call Miele Professional Service. Miele will require the model and serial number [SN] of the flatwork ironer. - Page 28 Miele Australia Pty. Ltd. ACN 005 635 398 ABN 96 005 635 398 Melbourne: 1 Gilbert Park Drive Knoxfield, VIC 3180 Telephone: 1300 731 411 service.prof@miele.com.au www.miele-professional.com.au info@miele-professional.com.au Miele New Zealand Limited IRD 98 463 631 Level 2, 10 College Hill Freemans Bay Auckland 1011 New Zealand...
