Summary of Contents for Miele professional PM 1210

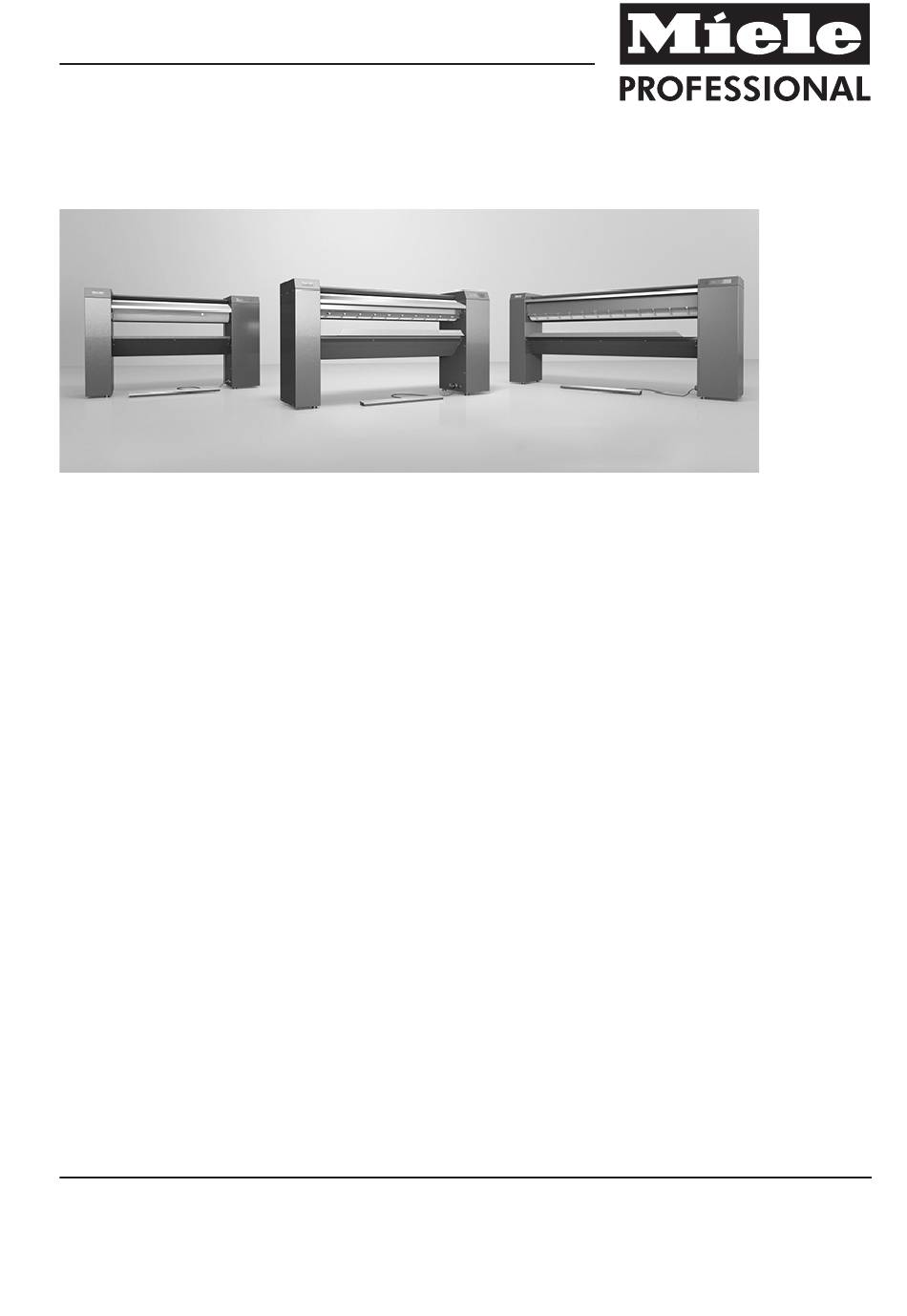

- Page 1 Operating instructions Commercial flatwork ironer PM 1210 PM 1214 PM 1217 To avoid the risk of accidents or damage to the en-GB machine, it is essential to read these instructions before it is installed and used for the first time.
-
Page 3: Table Of Contents
Contents Caring for the environment .................... 5 Warning and Safety instructions.................. 6 Appropriate use ........................6 Technical and electrical safety ..................... 6 Operation..........................7 Using accessories ........................ 7 Notes on the use of this ironer ..................... 7 Guide to the machine ...................... 9 Touch display ........................ - Page 4 Contents Padding instructions......................28 Removing the ironing cloth .................... 28 Fitting the ironing cloth.................... 29 Miele Service ........................29...
-
Page 5: Caring For The Environment
Caring for the environment Disposal of the packing material The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled. Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. -
Page 6: Warning And Safety Instructions
Warning and Safety instructions Please read these operating instructions supplied with the ironer before using it for the first time. They contain important information on the safety, use, and maintenance of the ironer. This prevents both personal injury and damage to the appliance. If other persons are being shown how to operate the ironer, they must be given or made aware of these important safety instructions. -
Page 7: Operation
Warning and Safety instructions This ironer is only completely isolated from the electricity supply when switched off at the mains isolator, or the mains fuse is disconnected. Operation This ironer must not be operated unsupervised. This ironer can only be used by people with reduced physical, sensory, or mental cap- abilities or lack of experience or knowledge if they are supervised whilst using it or have been shown how to use it in a safe way and understand and recognise the consequences of incorrect operation. - Page 8 Warning and Safety instructions Smooth out folds as far away from the infeed on the infeed table as possible. Feed pil- low cases and duvet covers into the ironer with the open end first. Do not take hold of the corners from the inside.
-
Page 9: Guide To The Machine
FlexControl footswitch Laundry infeed table Laundry pickers Finger guard Height-adjustable screw feet Roller Plinth (optional) Heater plate with cover Laundry box Laundry outfeed table Optional PM 1210 PM 1214 PM 1217 Swing out bar Flexible laundry feed Leaf-spring padding Plinth... -
Page 10: Touch Display
Guide to the machine Touch display The buttons on the touch display can be selected by pressing lightly. The button that is currently selected will be highlighted with a bar underneath. ... - Page 11 Guide to the machine Display in the roller speed selection mode button button Switches the ironer on and off. Increases the roller speed button button Pauses the ironing process. Decreases the roller speed button button...
-
Page 12: Display Symbols
Guide to the machine Display symbols Pre-selection and display of temperature Activate the finger guard in °C / °F Ironer heater element on / heater plate temperature is rising Pre-selection and display of roller speed // Service display for cleaning and waxing Roller speed range ... -
Page 13: Finger Guard
Guide to the machine Finger guard The finger guard is a safety feature that must be checked daily for proper functioning be- fore the machine is used. Risk of injury due to lack of finger guard function. A malfunctioning finger guard function can lead to serious injury. Shut down the flatwork ironer immediately. -
Page 14: Swing Out Bar
Guide to the machine Swing out bar (for PM 1214 as an optional accessory) Freshly ironed items can be placed over the hinged swing out bar to prevent creasing. Flexible laundry feed for outfeed laundry removal (for PM 1217 as an optional accessory) The flexible laundry feed mechanism enables the ironed laundry to be fed through to the back of the ironer for removal. -
Page 15: Preparing The Laundry
Preparing the laundry Residual moisture For an excellent finish and optimum ironing performance, the laundry that is to be ironed should have the following levels of residual mois- ture, depending on the type of ironing being carried out: PM 1214, PM 1217: 15–25 % residual moisture PM 1210: 15 % residual moisture The ideal level of residual moisture depends on the textile's proper- ties. -
Page 16: Commissioning
Commissioning Cleaning and waxing before use It is essential to clean and wax the heater plate before it is used (see “Cleaning and maintenance”). Clean the heater plate by passing the cleaning cloth across the en- tire width of the roller. After cleaning the heater plate, wax it using the waxing cloth and ... -
Page 17: Use
Preparing for use Turn on the on-site main switch for the power supply. Press the button to switch on the ironer. The red symbol flashes. Now activate the finger guard by lifting it. The ironer switches to the normal operating mode. The ironer is only ready to use if the finger guard has been activated properly. -
Page 18: Ironing Temperature
Ironing temperat- The ironing temperature should be selected according to the type of fabric being ironed. Fabric Symbol Temperature Preset value Nylon / artificial silk 100–110 °C 110 °C Silks / woollens 111–150 °C 125 °C Cottons / linens 151–185 °C 180 °C Temperature selection buttons The ironer temperature can be set either via the temperature selection buttons or alternatively via the ... -
Page 19: Speed Of Ironer
Tip: Before starting to iron, allow the roller to rotate for about five minutes while unloaded so that the temperatures of the heater plate and roller can equalise. Speed of ironer PM 1210 / PM 1214: Symbol Speed range / min Low speed range 1.5–2.2 Medium speed range 2.3–3.2... -
Page 20: Changing The Value Of A Spin Speed Selection Button
Changing the Press the spin speed selection button you want to change the value value of a spin for. speed selection The bar will light up underneath the selected button and the current button spin speed value will appear in the display. Press the ... -
Page 21: Pauses In Ironing
Press the button to go into Pause mode when the ironer is Pauses in ironing switched on. In Pause mode, the roller stops and the heater plate disengages. The ironer heater element will initially remain switched on during this. Press the button to start ironing again. -
Page 22: After Ironing
After ironing After ironing, let the roller run for about 5 minutes at the minimum heating temperature without feeding in any laundry to dry out the padding completely. Switch off the ironer by pressing the button. The heater plate disengages and the fan runs for 10 minutes to cool down the machine. -
Page 23: Notes
Notes Changing the temperature unit The temperature unit display can be changed from °C to °F by Miele Service. Favourites setting Using the button, the most frequently used combination of tem- perature and roller speed can be saved so that it can be accessed quickly and easily. -
Page 24: Fault Messages
Notes Fault messages When a fault occurs, ironing is interrupted, the button flashes and a four-digit code appears in the display. Pressing the flashing button acknowledges the fault (the fault is stored in the fault memory). The button flashes and the ironing process can be restarted. Fault code Fault F 0... -
Page 25: Cleaning And Maintenance
Cleaning and maintenance Cleaning the heater plate Regular cleaning and maintenance of the heater plate is essential for protecting the roller drive and the padding. Refer to the instructions in the Miele Ironing Handbook. Always wax the heater plate after clean- ing. - Page 26 Cleaning and maintenance Cleaning with the Use the cleaning cloth for cleaning the heater plate. cleaning cloth Since the cleaning cloth is narrower than the heater plate, you can- not clean the entire heater plate width by feeding the cloth through once.
-
Page 27: Waxing The Heater Plate
Cleaning and maintenance Now lay the cleaning cloth back on the infeed table, but this time move it slightly to the right. The cleaning strip must again face the heater plate. Feed the cleaning cloth through the ironer again. ... - Page 28 Cleaning and maintenance Feed the wax cloth into the ironer from the left or right side at the necessary intervals across the entire working width of the ironer. Press and hold the button for at least 3 seconds once waxing is ...
- Page 29 Cleaning and maintenance After this, press and hold the button for longer than 3 seconds to deactivate the maintenance position. Wire wool residues may fall onto the laundry infeed table while the ironing cloth is being taken off. These residues must be removed. Switch on the ironer by pressing the button.
- Page 30 United Kingdom Miele Co. Ltd. Fairacres, Marcham Road Abingdon, Oxon, OX14 1TW Professional Sales, Tel: 0845 365 6608 E-mail: professional@miele.co.uk Malaysia Internet: www.miele.co.uk/professional Miele Sdn Bhd Australia Suite 12-2, Level 12 Miele Australia Pty. Ltd. Menara Sapura Kencana Petroleum ACN 005 635 398 Solaris Dutamas No.
