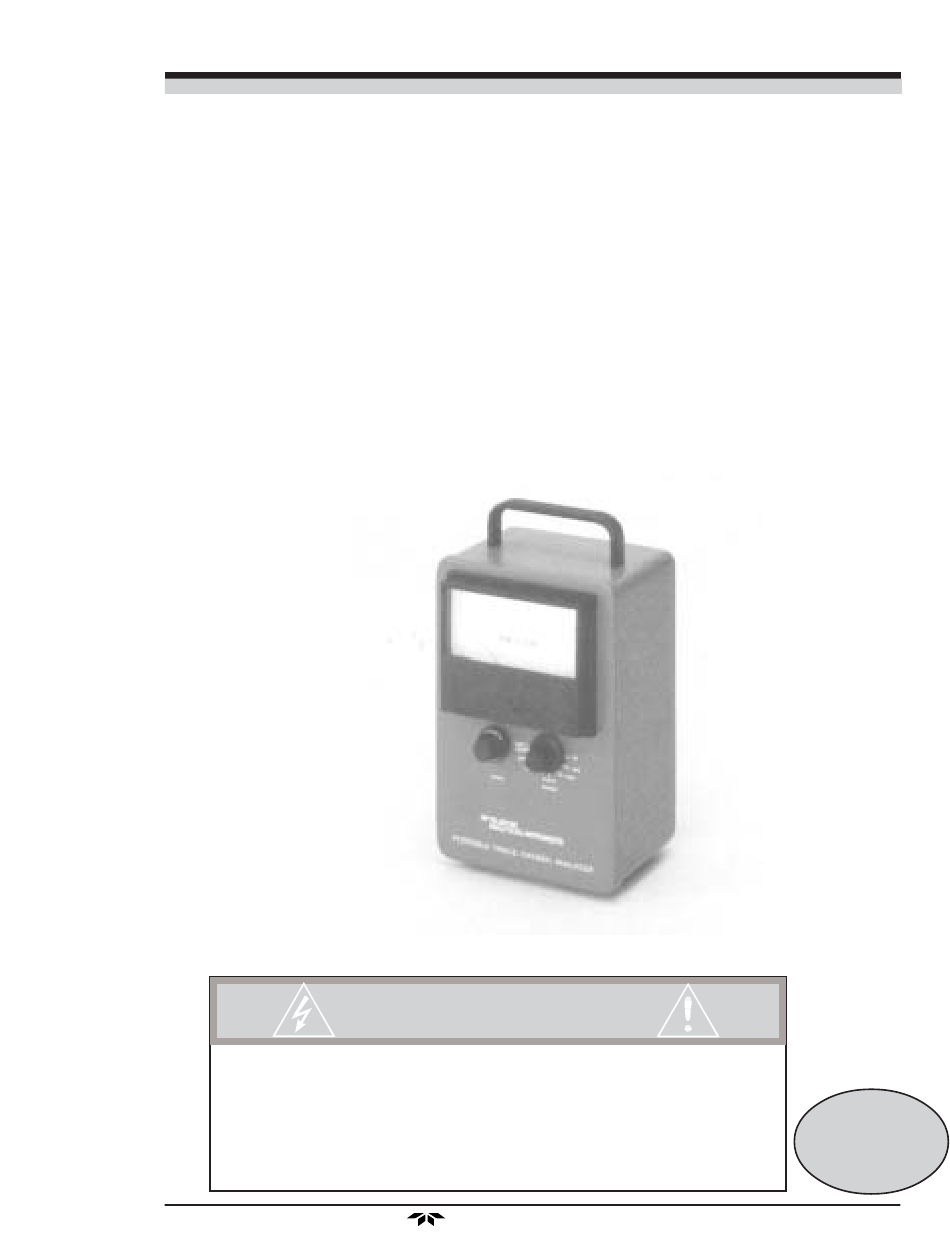

Teledyne Analytical Instruments 311PC Instruction Manual

Percent oxygen analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Percent Oxygen Analyzer
I
NSTRUCTION
M
P
ERCENT
HIGHLY TOXIC AND OR FLAMMABLE LIQUIDS OR GASES MAY BE PRESENT IN THIS MONITORING
SYSTEM.
PERSONAL PROTECTIVE EQUIPMENT MAY BE REQUIRED WHEN SERVICING THIS SYSTEM.
HAZARDOUS VOLTAGES EXIST ON CERTAIN COMPONENTS INTERNALLY WHICH MAY PERSIST FOR
A TIME EVEN AFTER THE POWER IS TURNED OFF AND DISCONNECTED.
ONLY AUTHORIZED PERSONNEL SHOULD CONDUCT MAINTENANCE AND/OR SERVICING. BEFORE
CONDUCTING ANY MAINTENANCE OR SERVICING CONSULT WITH AUTHORIZED SUPERVISOR/
MANAGER.
311 PC
ODEL
O
XYGEN
DANGER
Teledyne Analytical Instruments
Model 311PC
M
ANUAL
A
NALYZER
P/N M61392
03/06/00
ECO # 00-0060
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 311PC and is the answer not in the manual?

Questions and answers

Related Manuals for Teledyne Analytical Instruments 311PC

Summary of Contents for Teledyne Analytical Instruments 311PC

  • Page 1 Percent Oxygen Analyzer Model 311PC NSTRUCTION ANUAL 311 PC ODEL ERCENT XYGEN NALYZER DANGER HIGHLY TOXIC AND OR FLAMMABLE LIQUIDS OR GASES MAY BE PRESENT IN THIS MONITORING SYSTEM. PERSONAL PROTECTIVE EQUIPMENT MAY BE REQUIRED WHEN SERVICING THIS SYSTEM. HAZARDOUS VOLTAGES EXIST ON CERTAIN COMPONENTS INTERNALLY WHICH MAY PERSIST FOR P/N M61392 A TIME EVEN AFTER THE POWER IS TURNED OFF AND DISCONNECTED.
  • Page 2 Teledyne Analytical Instruments, 16830 Chestnut Street, City of Industry, CA 91749-1580.

  • Page 3: Table Of Contents

    4.3 Cell Replacement ............4-2 4.4 Cell Warranty ............... 4-3 4.5 Transduction and Temperature Compensation .... 4-3 Appendix Specifications ..............A-1 Recommended Spare Parts List for Model 311PC ..... A-2 Drawing List ................ A-2 Material Safety Data Sheet ..........A-3 Teledyne Analytical Instruments...
  • Page 4 Percent Oxygen Analyzer Model 311PC Teledyne Analytical Instruments...

  • Page 5: Introduction

    Introduction 1 Introduction Description The Teledyneg Analytical Instruments (TAI) Model 311PC is a por- table, intrinsically safe percent oxygen analyzer which can be operated without an external power source and reliably calibrated without the use of cumbersome, questionable, so-called “certified” calibration gases.

  • Page 6: Outstanding Features

    1 Introduction Model 311PC Outstanding Features The following unique features are incorporated into the Model 311PC: • Micro-Fuel Cell The Micro-fuel Cell (U.S. Pat. Nos. 3,767,552 and 3,668,101) is a sealed electrochemical transducer with no electrolyte to change or electrodes to clean. When the cell reaches the end of its useful life, it is merely thrown away and replaced, as one would replace a worn out battery in a flashlight.
  • Page 7 Only when the selector switch is placed in the OFF position will the neon lamp on the back plate of the Model 311PC light up to indicate power to the battery charging circuit.
  • Page 8 1 Introduction Model 311PC • Compact Packaging The instrument is housed in 6- X 9- X 5- in aluminum case that is equipped with a carrying handle and foot pads. When in use, the analyzer should be placed in an upright position on a level surface (off level positioning will detract from meter accuracy).

  • Page 9: Installation

    ¼ ampere of current will be periodically re- quired to recharge the instrument’s battery power supply. An internationally approved 3 wire detachable power cord is provided with the instrument and should be stored in a safe place when not in use. Teledyne Analytical Instruments...
  • Page 10 2 Installation Model 311PC Teledyne Analytical Instruments...

  • Page 11: Operation

    Operation 3 Operation Introduction The Model 311PC is supplied completely assembled and ready for instant use. The Micro-fuel Cell is packaged separately and should be installed prior to use (see Section 3.2). The integral shut-off valves in the quick disconnect sample fittings, if not disturbed, will provide a seal from oxygen in the air and extend the life of the Micro-Fuel cell when the instru- ment is not used for extended periods of time (week—months).

  • Page 12: Positive Pressure Sampling

    3 Operation Model 311PC Positive Pressure Sampling When connecting the instrument to a positive pressure sample source, always proceed as follows: 1) Before making any connections to the instrument, establish a flowrate in the sample line of from 0.1–10 liters/min using a throttle valve between the positive pressure source and the instrument inlet (1–2 liters/min is suggested).

  • Page 13: Calibration

    TAI feels that the interval between calibrations should be dictated by the customer’s application. The Model 311PC should be calibrated using a span gas with a known oxygen concentration. Ambient air (20.9% ) is recommended for calibra- tion.

  • Page 14: Calibration Procedure Using Calibration Gas

    3 Operation Model 311PC 3) Install the plastic tube equipped male disconnect fitting in either of the analyzer’s sample ports, and a blank disconnect fitting in the other port (direction of sample flow is of no importance). A pump is recommended on the plastic tube. Pump the tube until the meter reading is stable.
  • Page 15 5) Immediately after step 4 has been accomplished, disconnect the calibration source gas fitting at the analyzer sample port, and plug in either the sample or a source of zero gas. Always disconnect the source fitting first, immediately followed by the vent fitting. 3–5 Teledyne Analytical Instruments...
  • Page 16 3 Operation Model 311PC 3–6 Teledyne Analytical Instruments...

  • Page 17: Maintenance

    Maintenance Battery Power Supply Service The Model 311PC is designed to be intrinsically safe, and therefore is for use only when it is not connected to the AC power line. TAI suggest that an overnight recharge be accomplished every four (4) weeks of con- tinuous use.

  • Page 18: Routine Maintenance

    4 Maintenance Model 311PC Routine Maintenance Beyond adhering to a battery recharge schedule, no routine mainte- nance is required, as there are no moving parts in the instrument other than the meter movement. The Micro-fuel Cell is a sealed, modular component that should be replaced only when faulty.

  • Page 19: Cell Warranty

    Cell Warranty The Class B-1 cell employed in the Model 311PC is warranted for six (6) months of service. With regard to spare cells, service time starts when the cell is removed from its shipping package.
  • Page 20 4 Maintenance Model 311PC Notes: This curve assumes continuous exposure. Intermittent exposure will extend life. In general, the CO effect is cumulative and the average CO concentration should be used to find the predicted cell life. Cells can be used to make spot check...
  • Page 21 4. Adjust R2 (designated as R2 on schematic C37936 and designated on the A3 PCB module assembly as R28) for 0 + 1 mV at output of A2, pin 6. 5. Verify that the offset is the same on all ranges. 6. Reconnect cell. 4–5 Teledyne Analytical Instruments...
  • Page 22 4 Maintenance Model 311PC 4–6 Teledyne Analytical Instruments...

  • Page 23: Appendix

    Percent Oxygen Analyzer Appendix Appendix Specifications TBE/AI Sales Order Number: Instrument Model Number: 311PC Instrument Serial Number: Micro-fuel Cell Class: B-1 Accuracy: ±2% of scale at constant temperature; ±5% of full scale over the operating temperature range. Operating Temperature Range: 30 F to 125 Response and Recovery: At the specified flowrate (1–2 l/min)

  • Page 24: Drawing List

    Appendix Model 311PC Recommended Spare Parts List for Model 311PC QTY PART NO. DESCRIPTION F1122 IEC Fuse, 1/4 Amp. (for 220V units) F1123 IEC Fuse, 1/2 Amp. (for 110V units) C06689-B1 Micro-fuel Cell, Class B-1 B-9905 Battery Lamp A minimum charge is applicable to spare parts orders.
  • Page 25 Percent Oxygen Analyzer Appendix NOTE: The MSDS on this material is available upon request through the Teledyne Environmental, Health and Safety Coordinator. Contact at (626) 934-1592 A–3 Teledyne Analytical Instruments...
  • Page 26 Appendix Model 311PC A–4 Teledyne Analytical Instruments...

  • Page 27: Material Safety Data Sheet

    Boiling Point/Range: 100 to 115 °C 1744 °C Specific Gravity: 1.09 @ 20 °C 11.34 >14 Solubility in Water: Completely soluble Insoluble Percent Volatiles by Volume: None Appearance and Odor: Colorless, odorless solution Grey metal, odorless A–5 Teledyne Analytical Instruments...
  • Page 28 Appendix Model 311PC Section III – Physical Hazards Potential for fire and explosion: The electrolyte in the Micro-Fuel Cells is not flammable. There are no fire or explosion hazards associated with Mi- cro-Fuel Cells. Potential for reactivity: The sensors are stable under normal conditions of use.
  • Page 29 The information is believed to be correct but does not purport to be all inclusive and shall be used only as a guide. Teledyne Analytical Instruments shall not be held liable for any damage resulting from handling or from contact with the above product.
  • Page 30 Appendix Model 311PC A–8 Teledyne Analytical Instruments...
