NorthEast Monitoring DR181 Hook-Up Manual

7-Electrode, 3-Channel

Patient Preparation

• Select area over bone, where appropriate, avoiding muscle
areas and breast tissue.
• Clean electrode sites aggressively with alcohol and use a
razor to remove hair.
• Abrade electrode sites with a scrub pad or gauze. Allow
sites to dry before applying electrodes.
• Firmly snap electrodes to the lead wires.
• Apply electrodes to appropriate sites. Press adhesive
border firmly for consistent adhesion.
• To help alleviate tension, loop and tape lead wires down.
Tape
Tape
NorthEast Monitoring, Inc.
141 Parker Street, Suite 111
Maynard, MA 01754 USA
www.nemon.com
advancing Holter technology

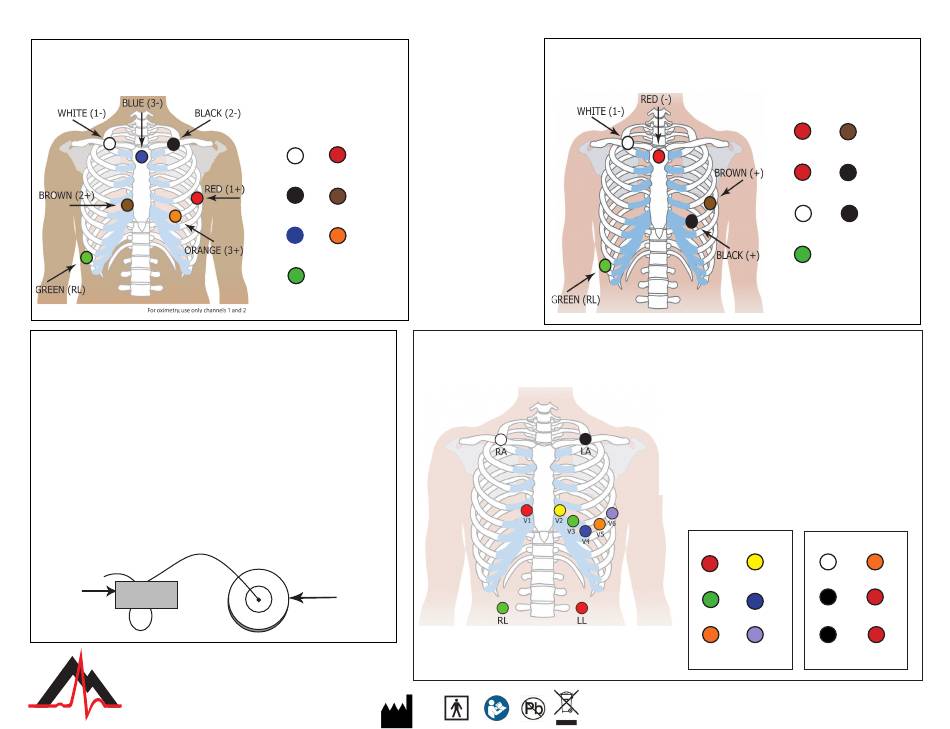

DR181 Hook-Up Guide for Holter
Electrodes
-- +
Ch 1
mod.V5
WHITE RED
Ch 2
mod.V1
BLACK BROWN
Ch 3
lead III
BLUE ORANGE
GREEN (Ground)
Electrode
Electrode
phone: [+1] 978-461-3992
fax: [+1] 978-461-5991
toll free USA: 866-346-5837
email: info@nemon.com
5-Electrode, 3-Channel
10-Electrode, 12-Lead
RA right mid-clavicular
LA left mid-clavicular
RL right iliac crest
LL left iliac crest
V1 4th intercostal space, right of sternum
V2 4th intercostal space, left of sternum
V3 between V2 and V4
V4 5th intercostal space, mid-clavicular line
V5 5th intercostal space, anterior axillary line
V6 5th intercostal space, mid-axillary line
Precordial Leads
V1
V3
V5
NEMM033 - Rev-C - English - January 2016
Electrodes
-- +
Ch 1
CM5
RED BROWN
Ch 2
aVF
RED BLACK
Ch 3
lead II
WHITE BLACK
GREEN (Ground)
Holter Leads
Ch 1
V2 RA V5
Ch 2
V4
LA V1
Ch 3
V6 LA V1
