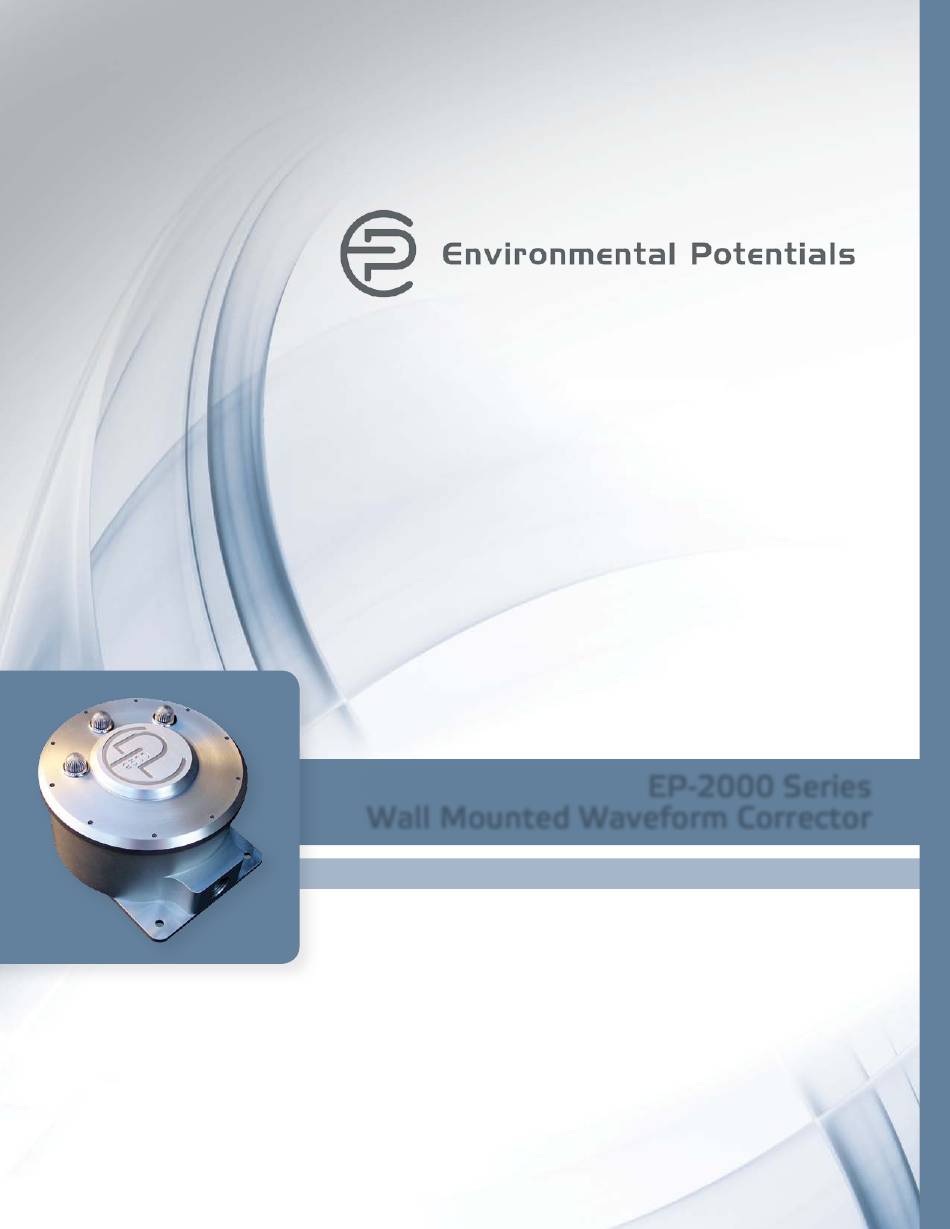

- Page 1 Power Quality For The Digital Age EP-2000 Series Wall Mounted Waveform Corrector Installation and Maintenance Manual EP-2000 • EP-2050 • EP-2500 • www.ep2000.com 800.500.7436...
-
Page 2: Five Year Warranty
– Servicing FIVE YEAR WARRANTY • Environmental Potentials will replace or repair any product from the EP-2000 product line as long as it was not damaged during installation or damaged from faulty installation. • EP warranty registration card must be filled out and received by Environmental Potentials within 15 days of installation. - Page 4 Then connect black phase C to phase C of 30 A breaker. 3Y600 380V Last connect green ground to ground bus bar or panel. Ground is case ground only and should NOT be connected to neutral bus bar. EP-2000 Series INSTALLATION GUIDE...
- Page 5 Three Phase Delta Installation THREE PHASE DELTA PRODUCTS EP-2000 EP-2500 VOLTAGE MCOV 3 Phase Delta 3 Wire 3 phase delta 3 wire 3D240 264V Connect black phase A to phase A of the 30 A breaker. Next connect black phase B to phase B of 30 A breaker. 3D480 528V Then connect black phase C to phase C of 30 A breaker.
-
Page 6: Side Mounting
Ensure you have considered all of these options before mounting. attempting internal installation. WARNING • ALWAYS have a professional electrician with proper safety equipment perform installation. • Any attempt to open unit voids warranty. EP-2000 Series INSTALLATION GUIDE... -
Page 7: Maintenance
Wiring WYE INSTALLATION Requires a dedicated 30 A circuit breaker to connect Waveform Corrector to the electrical system. Wire should be connected straight to the power source. Avoid sharp bends and refrain from splicing the wires as this will reduce the effectiveness of the unit.
