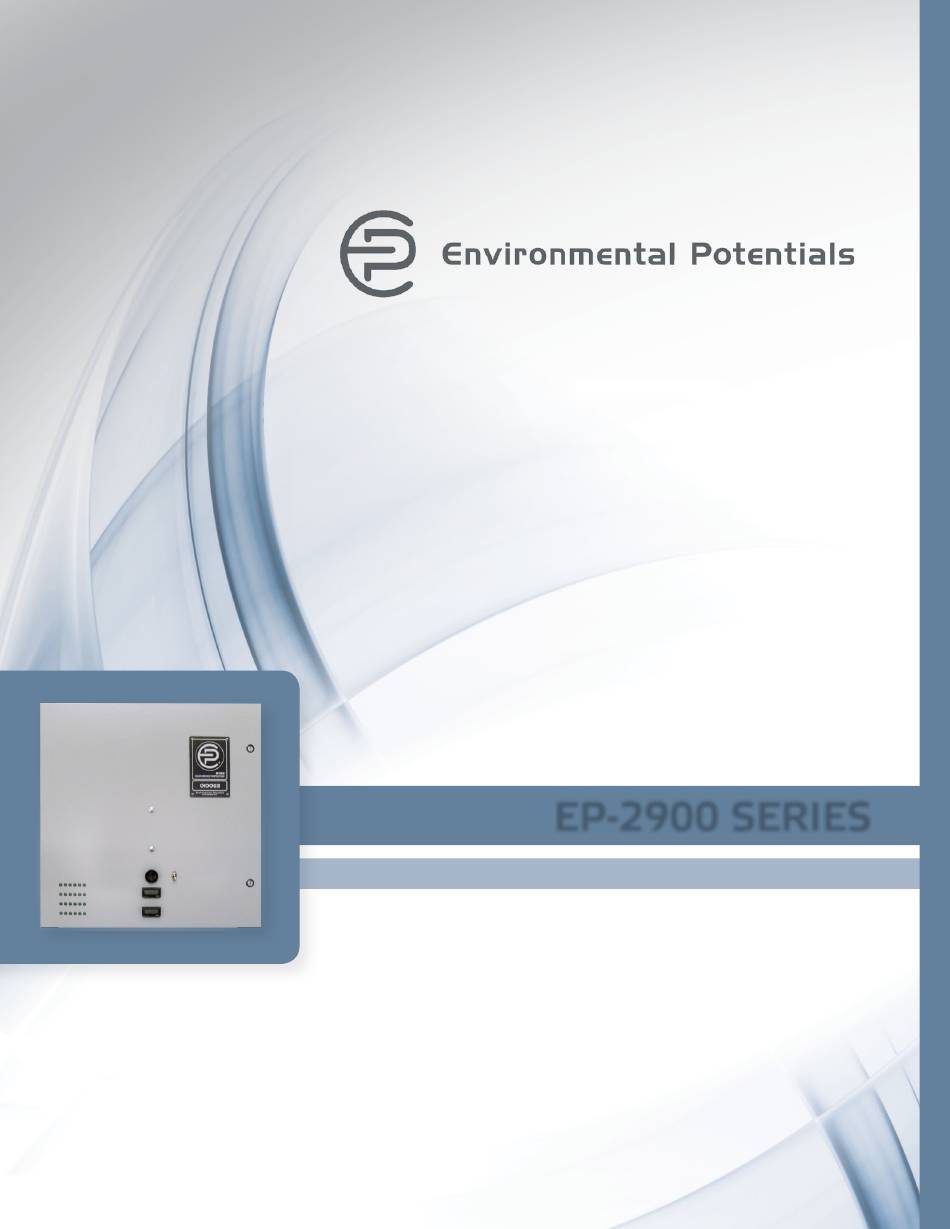

- Page 1 Power Quality For The Digital Age EP-2900 SERIES I n s t a l l a t i o n a n d A p p l i c a t i o n M a n u a l •...
- Page 2 • Servicing TEN YEAR WARRANTY • Environmental Potentials will replace or repair any product from the EP-2900 product line as long as it was not damaged during installation or damaged from faulty installation. • EP warranty registration card must be filled out and received by Environmental Potentials within 15 days of installation.
-
Page 3: Safety First
Safety First WARNING ALWAYS have a professional Even though units designed common electrician with proper safety installation, electricity is dangerous and only qualified equipment perform installation. personnel should attempt installation. Read and understand entire contents of installation manual prior to installation. Measure voltage of the electrical panel where the installation is taking place. - Page 4 Voltage Ratings & Power Source Configurations Single Phase Two Wire + Ground Installation SINGLE PHASE WYE PRODUCTS EP-2920 EP-2940 EP-2980 VOLTAGE Single Phase 1 Wire + Neutral MCOV 1Y120 120 V Connect white neutral to neutral bus bar. Next connect black phase A to phase A of the 30 A breaker. 1Y240 240 V Last connect green ground to ground bus bar or panel.
- Page 5 Three Phase Delta Installation THREE PHASE DELTA PRODUCTS EP-2920 EP-2940 EP-2980 VOLTAGE MCOV 3 Phase Delta 3 Wire 3D240 240V Connect black phase A to phase A of the 30 A breaker. Next connect black phase B to phase B of 30 A breaker. 3D480 480V Then connect black phase C to phase C of 30 A breaker.
-
Page 6: Audible Alarm
EP-2900 SERIES AUDIBLE ALARM AUDIBLE ALARM LED VISUAL ON/OFF SWITCH NOTIFICATION SURGE COUNTERS SURGE COUNTER RESET BUTTON REPLACEABLE MODULES 30 Amp 200kAIC FUSES EP-2900 INSTALLATION GUIDE...
