EunSung 3-MAX User Manual

Treatment of fat and cellulite
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ultrasonic Cavitation and RF with Vacuum System
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3-MAX and is the answer not in the manual?

Questions and answers

Farzane
March 4, 2025

An unexpected error has occured in maingui.exe , whats this error? And what can i do?

User image 67c74ec907325
0

Related Manuals for EunSung 3-MAX

Summary of Contents for EunSung 3-MAX

  • Page 1 Ultrasonic Cavitation and RF with Vacuum System User Guide...

  • Page 2: Table Of Contents

    Operating Manual Contents Operating Manual 3-MAX Ⅰ. Structure of Ⅰ-1. General Structure …………………………………… 3 Ⅰ-2. Description of Applicator …………………………………… 4 Ⅰ-3. Operating Board …………………………………… 5 Ⅰ-4. Operation …………………………………… 6 Ⅰ-5. Filter Cleaning …………………………………… 7 Ⅱ. Operation 8~15 Ⅱ-1. Operation LED screen ……………………………………...

  • Page 3: Ⅰ. Structure Of 3-Max 3~6

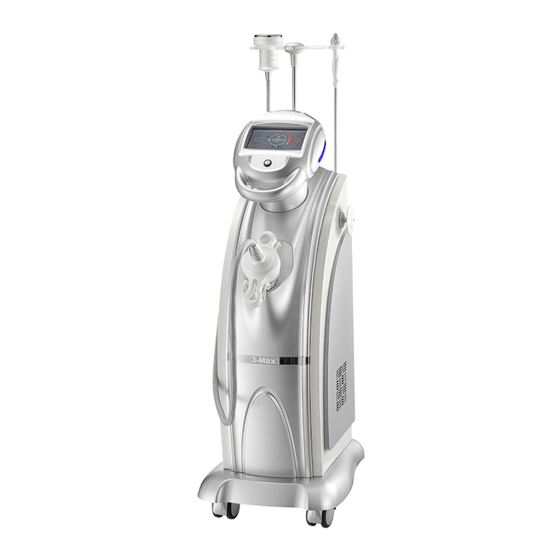

    Operating Manual Ⅰ. Structure of 3-MAX Ⅰ-1. General Structure Hand-piece Hand-piece Holder Start Key Hand-piece Hose Holder Body Wheels www.esglobal.co.kr...

  • Page 4: Ⅰ-2. Description Of Applicator

    Operating Manual Ⅰ. Structure of 3-MAX Ⅰ-2. Description of Applicator Body (Cavitation) • Treatment of fat and cellulite area • 80Φ Hand-piece • Safe BLT mode • 4 types of pulse function • Light signal function Body(RF& Vacuum ) • Treaded on abdomen, leg, back and waist •...

  • Page 5: Ⅰ-3. Operating Board

    Operating Manual Ⅰ. Structure of 3-MAX Ⅰ-3 : Installation 1.Put and turn the accessory holder into the machine * If the accessory holder doesn’t parallel the machine, release 3 screws on the top and set the direction correctly. 2. Hold hand-pieces to the accessory holder 3.

  • Page 6: Ⅰ-4. Operation

    Operating Manual Ⅰ. Structure of 3-MAX Ⅰ-4 . Operation 1. Press the power switch Press 2.Turn the power switch key. • The blue LED will be lightened on the side of head www.esglobal.co.kr...

  • Page 7: Ⅰ-5. Filter Cleaning

    Operating Manual Ⅰ. Structure of 3-MAX Ⅰ-5 : Filter Cleaning 1.Open the hexagonal screw on the back side of machine with wrench. 2. Empty the filter container when the oil filled till red line. 3. Open the lid of filter container as arrow direction.

  • Page 8: Ⅱ. Operation 8~15

    Operating Manual Ⅱ. Operation Ⅱ -1. Operation LCD screen * Select and press the handpiece from LCD screen Choose Cavitation / RF & Vacuum for body treatment. Choose RF & Vacuum for face treatment. Cavitation (Body) RF& Vacuum (Body) RF& Vacuum (Face) www.esglobal.co.kr...
  • Page 9 Operating Manual Ⅱ. Operation II -2. Cavitation (Body) ⑨ Select Handpiece Type ⑧ Start Button ⑦ Select ① Type of Hapdpiece Type Handpiece ② Cavitation ⑥ Display Power Level ⑤ Preset Timer 15:00 ③ Control Time Button ④ Pulse Program Button < C , P1 ,P2 ,P3 > ①...
  • Page 10 Operating Manual Ⅱ. Operation -2-1. Cavitation Operation (Body) 1. Use to the preset program and change to mode, level and time as your convenient Cavitation the level Preset time 15:00 Control time Choose the program * Selecting the Cavitation Mode, it has a preset function. level Program Time...
  • Page 11 Operating Manual Ⅱ. Operation -2-2. Cavitation Operation (Body) ※ Foot switch can e used as start/stop button. *User can use the foot switch all operation modes, the Cavitation and RF & Vacuum -2-3. Finish the Cavitation (Body) 1.When finishes the treatment, press“Power”on the LCD board. (Basically, it will be finished the function after finishing the time set) 2.Keep the power on 2~3 min before off the power, more to cool down the inside heat.

  • Page 12: Ⅱ-3. Rf & Vacuum (Body)-1Mhz

    Operating Manual Ⅱ. Operation II-3. RF & Vacuum (Body)- 1Mhz ⑨ Start Button ⑩ Select Handpiece Type ⑧ Display Power Level ⑦ Select Handpiece Type ① Type of handpiece ② Set Vacuum ⑥ Bipolar RF level ⑤ Preset Timer 20:00 ③...

  • Page 13: Ⅱ-4. Rf & Vacuum (Face)-3Mhz

    Operating Manual Ⅱ. Operation Ⅱ -3-1. RF & Vacuum Operation(Body)- 1Mhz 1. Use to the preset program and change to mode, level and time as your convenient Set RF level Set Vacuum level Preset Timer 20:00 Control Time Vacuum Pulse Button * Selecting the RF &...
  • Page 14 Operating Manual Ⅱ. Operation Ⅱ -4. RF & Vacuum (Face)- 2Mhz ⑨ Start Button ⑩ Select Handpiece Type ⑧ Display Power Level ⑦ Select Handpiece ① Type of handpiece Type ② Set Vacuum ⑥ Set Bipolar RF level level ⑤ Preset Timer 20:00 ③...
  • Page 15 Operating Manual Ⅱ. Operation Ⅱ -4-1. RF & Vacuum Operation(Face) -2 1. Use to the preset program and change to mode, level and time as your convenient Set RF level Set Vacuum level Preset Timer 20:00 Control Time Vacuum Pulse Button * Selecting the RF &...

  • Page 16: Ⅲ. Practical Application 16~23

    Operating Manual Ⅲ. Practical Applications Ⅲ-1: Abdomen Treatment Application Level Mode Time Hand- program piece Only for Excessive edema, fat Cavitation and cellulite 15min (15 min) Only for RF Large fat and RF: 5 P3 15min & Vacuum contouring body line Vaccum: 3 (20min) ->...
  • Page 17 Operating Manual Ⅲ. Practical Applications Ⅲ-1: Waist Side Line Treatment Application Level Mode Time Hand- program piece Only for Excessive edema, fat Cavitaion and cellulite 10min (10min) Only for RF Large fat and RF: 5 P3 7min & Vacuum contouring body line Vacuum: 3 (10min) ->...

  • Page 18: Ⅲ-2. Front & Back Thigh/ Hip/ Calf

    Operating Manual Ⅲ. Practical Applications Ⅲ-2 : Front & Back Thigh Treatment Application Level Mode Time Hand- program piece Only for Excessive edema, fat Back : 10min each Cavitation and cellulite Front : 5min each (30min) Only for RF Large fat and RF: 5 Back: P3 7min each &...
  • Page 19 Operating Manual Ⅲ. Practical Applications Ⅲ-2: Hip Treatment Application Level Mode Time Hand-piece program Only for Excessive edema, fat 10min Cavitation and cellulite (10min) Only for RF Large fat and RF: 5 P3 7min & Vacuum contouring body line Vacuum: 3 (10min) ->...
  • Page 20 Operating Manual Ⅲ. Practical Applications Ⅲ-2 : Calf Treatment Application Level Mode Time Hand-piece program Only for Excessive edema, fat 5min each Cavitation and cellulite (10min) Only for RF Large fat and RF: 5 P3 3min each & Vacuum contouring body line Vacuum: 3 (10min) ->...

  • Page 21: Ⅲ-3. Back/ Arm

    Operating Manual Ⅲ. Practical Applications Ⅲ-3 : Back Treatment Application Level Mode Time Hand-piece program RF &Vacuum Excessive edema, fat P3 15min RF: 5 (whole part) and cellulite C 5min (20min) And muscle stiffness -> C Vacuum: 3 RF &Vacuum stiff and painful shou RF: 5 P3 7min...
  • Page 22 Operating Manual Ⅲ. Practical Applications Ⅲ-3 : Arm Treatment Application Level Mode Time Hand- program piece Only for Excessive edema, fat 5min each Cavitation and cellulite (10min) Only for RF Large fat and RF: 5 P3 3min each & Vacuum contouring body line Vacuum: 3 (10min)

  • Page 23: Ⅲ-4. Face

    Operating Manual Ⅲ. Practical Applications Ⅲ-4 : Face ⑴ Face Treatment Application Level Mode Time Hand-piece program RF&Vacuum Face Lifting RF: 5 P3 10min - regeneration, elasticity, , Vacuum: circulation treatment -> C C 5min 3->1 RF&Vacuum Eye Lifting RF: 3 P3 7min Vacuum: 1 3min...

  • Page 24: Ⅳ-1. Contraindication 24~26

    Operating Manual Ⅳ. Caution Contraindication Ⅳ-1 : Please avoid the treatment from these people or part as below, Pregnancy Scarring, infection of the treatment area History of keloid scarring Patients with a pacemaker or internal defibrillator Use of medication known to induce photosensitivity Use of accutane within the past 6 months Diabetes (Type I or II) Fragile skin...
  • Page 25 Operating Manual Ⅳ. CAUTION Ⅳ-3 : Maintenance 1. After treatment, keep the power on about 3 minutes to make inner board cooling. 2. Please keep the machine in the shade, avoiding direct lay of light. 3. Moving the machine, be careful not to drop applicators 4.
  • Page 26 Operating Manual Ⅳ. CAUTION Ⅳ-4 : Solution Light of power switch is not on although turn the power switch a. Please check whether power cord is put to plug on the machine b. Please check whether fuse has been broken down. No calorification although in normal condition a.

  • Page 27: Ⅴ-1. Warranty Coverage

    Operating Manual Ⅴ. Warranty Warranty Coverage Ⅴ-1 : a. ES Global warrants defects in materials and workmanship for a period of 1 year from the date of original purchase. b. ES Global will repair these products at no charge or refurnish the parts if it has any abnormal condition.

  • Page 28: Ⅵ. Specification

    Operating Manual Ⅵ. Specification General Specifications Model Name : 3Max Power Input : AC100~230V,50/60Hz (Free voltage) Dimensions : 1330mm(H)×405mm(D)×505mm(W) Weight : about 52.2Kg Technical Specifications Handpieces1(Body) - RF Frequncy : 1MHz (Multipolar) - Max Vaccum : 650mmHg Handpieces2(Face) - RF Frequncy : 2MHz (Bipolar) - Max Vaccum : 650mmHg Handpieces3(Cavitation) - 80Φ...

  • Page 29: Ⅶ. Manufacturer Information Ⅶ-1 Contact Information

    Ⅶ-1 : Contact Info Repair or any enquiry for this, it shall be back to manufacturer, following addresses :  Company Name : EunSung Global Corp. • Head office : #1102~1105, hanrasigma Valley, 345-90, Gasan-Dong, Geumcheon- Gu, Seoul, Korea, tel. +82-2-514-9713, fax. +82-2-514-9716 •...
