EunSung Vital Injector 2 Operator's Manual

Super hydration with a therapeutic needling treatment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operator Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vital Injector 2 and is the answer not in the manual?

Questions and answers

Related Manuals for EunSung Vital Injector 2

Summary of Contents for EunSung Vital Injector 2

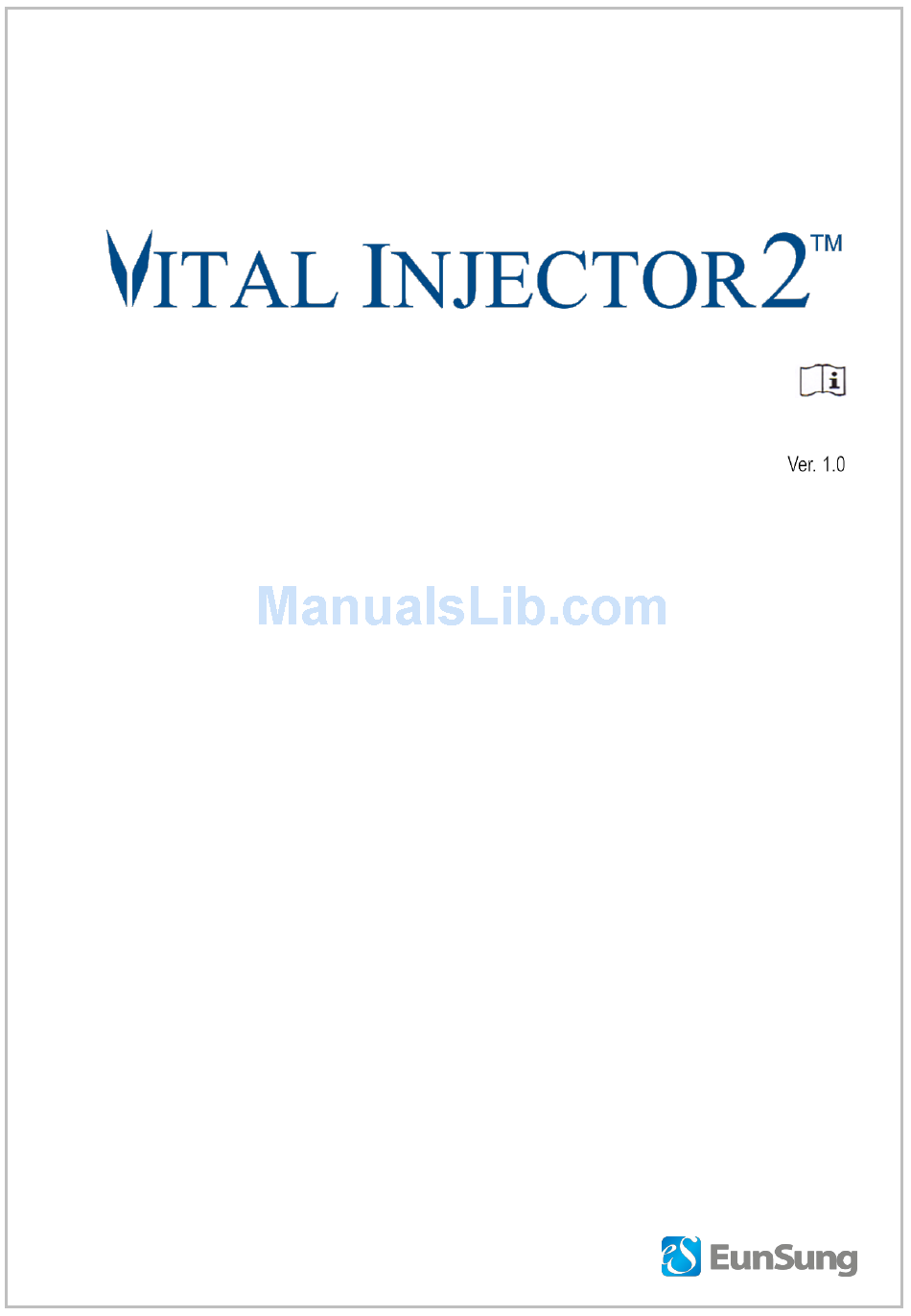

  • Page 1 Operator Manual...
  • Page 2 Copyright© 2015 Eunsung Global Corp. All rights reserved. Eunsung Global reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by Eunsung Global is believed to be accurate and reliable. However, Eunsung Global assumes no responsibility for its use.

  • Page 3: Table Of Contents

    Contents 1. Introduction 1.1. About the Manual........................6 1.2. About the Device.........................6 2. Equipment Safety 2.1. About Equipment Safety......................7 2.2. General Precaution & Caution.....................7 2.3. Electrical Hazard.........................7 3. Medical Safety 3.1. About Medical Safety......................8 3.2. Indication for Use........................8 3.3. Patient Safety........................9 4.
  • Page 4 Contents 5. Site Preparation 5.5. Storage & Transportation Requirements................13 6. Installation 6.1. About the installation......................14 6.2. Assemble main body & trolley....................14 6.3. Assemble main body & injector..................14 6.4. Power On/Off........................15 6.5. Mounting filter.........................15 6.6. Multi-needle mounting & exchanging.................15 6.7.
  • Page 5 Contents 10. Specification.............................27 11. Customer Support...........................27...

  • Page 6: Introduction

     This manual has been prepared to aid medical and technical personnel to understand and operate the system.  Do not operate the system before reading this manual and gaining a clear understanding of system operation.  If any part of this manual is not clear, please contact your local representatives of Eunsung Global for further clarification.

  • Page 7: Equipment Safety

     While not in use, injector & multi-needle should be detached from each other and store separately for the safety.  There are no user-serviceable parts inside the system. Only Eunsung Global-authorized personnel may service the system, especially inside its cabinet.

  • Page 8: Medical Safety

    3. Medical Safety 3.1. About Medical Safety This chapter describes various cases of safety issue while using the device in clinical setting. 3.2. Indication for Use Vital Injector2 is a multi-use meso injector for various medical use. This advanced capacity machine now featuring with a detachable hygienic- filter technology promises better controlled hygienic treatment.

  • Page 9: Device Description

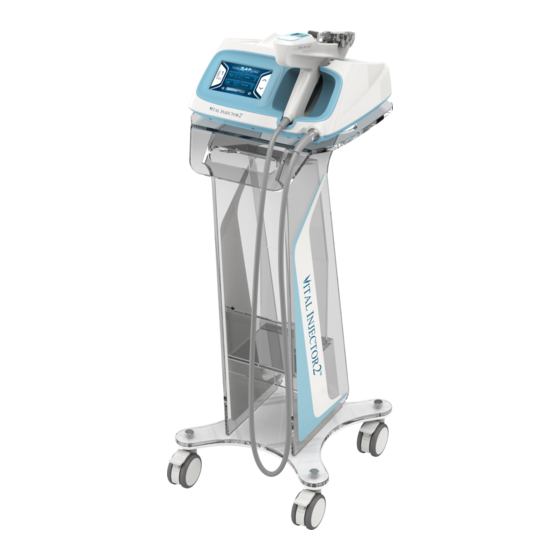

    4. Device Description 4.1 Main Console Injector LCD Control Panel Console Trolley - Main Body & Trolley -...

  • Page 10: Injector

    4. Device Description 4.2. Injector The device is conveniently designed easily operated. LCD panel on the device enables an operator to check the operation during treatment. Backward Button Injector LCD Position Holder START/STOP Syringe Forward Button Multi Needle Connecting Cable Syringe Holder Filter Trigger...

  • Page 11: Equipment List

    4. Device Description 4.3. Equipment List The following equipment is delivered in the shipping pack: ① Device ② Injector ③ Power Cable & Adaptor ④ Filter ⑤ Filter cotton ball ⑥ Manual ⑦ Multi Needle(20psx/box) [Option] ⑧ Trolley [Option] Call your local dealer if you want to purchase additional equipment of Vital Injector2...

  • Page 12: Site Preparation

    To ensure that the system performs optimally, maintain room temperature between 50° to 80°F (10° to 27°C) and relative humidity at 30% to 75%, non-condensing. Any damage to the packaging or to the system found prior to opening the package should be reported to your Eunsung Global local representative.

  • Page 13: Site Preparation

    5. Site Preparation 5.5. Storage & Transportation Requirements To maintain the system properly during storage and transport, follow these requirements.  Keep the room temperature between 40° and 105° F (5° to 40°C) to optimally store the main console.  Keep the system in a location where the humidity is between 10% and 80%, non-condensing. ...

  • Page 14: Installation

    6. Installation 6.1. About the Installation Vital Injector2 is designed for installation in an office or a clinic and requires minimal site preparation. System installation is carried out by clinic personnel, who will do the following: Unpack the system and position the items in their pre-selected locations. Needles are packaged separately from the main unit and injector, in ready-to-use, small pouch.

  • Page 15: Power On/Off

    6. Installation 6.4. Power On/Off Connect AC power cable by simply inserting to the device then press the switch to the position of [ I ] to power on. - Power Off - - Power On - 6.5. Mounting filter Mount filter to injector.

  • Page 16: Mounting Syringe

    6. Installation 6.7. Mounting Syringe Place syringe on injector and place the end of the pistol into the position holder as shown below. 6.8. Connect Syringe to Multi-needle Press the forward button and insert syringe into needle hole. Hold syringe with hand in order to accurately connect syringe in needle hole.

  • Page 17: Operating Instruction

    7. Operating Instructions 7.1. About Operating Instructions This section of the manual explains how to start and operate the system inclusive of possible warning & caution at each level of the procedure. Prior to use the system, make sure that following conditions are all met. ...
  • Page 18 7. Operating Instructions 7.2. System Operations 7.2.3. LCD Monitor & Control Panel ⑦ ① ② ⑧ ③ ⑨ ④ ⑩ ⑤ ⑪ ⑥ DOSAGE  Intermittent mode [Preset : 10µl ] 5,6,7,8,9,10,11,12,13,14,15,20,25,30µl  Continuous mode [ Preset : 1 cc/min ] 1 cc : 1, 2, 3 cc/min 2, 3, 5 cc : 1, 3, 5 cc/min...
  • Page 19 7. Operating Instructions 7.2. System Operations 7.2.3. LCD Monitor & Control Panel Item Description Number of Shots Displays currently treated number of shots. (after mounting the syringe to the injector) Syringe Volume(cc) Select desired volume of syringe for operator’s medical needs. The volume changes as &...
  • Page 20 7. Operating Instructions 7.2. System Operations 7.2.3. LCD Monitor & Control Panel [ Preset : 10 Intermittent Mode µl Type Dose Available Shot Dose Available Shot 7 µl 13 µl (1.4µl/pin) (2.6µl/pin) 8 µl 14 µl (1.6µl/pin) (2.8µl/pin) 9 µl 15 µl 1 cc (1.8µl/pin)
  • Page 21 7. Operating Instructions 7.2. System Operations 7.2.5. Injector Button & LCD ① ② ③ ④ ⑤ Item Description Displays currently treated number of shots. (after mounting the syringe to the Number of Shots injector) Select the appropriate depth of the needle to penetrate into the skin. Press the ‘DEPTH touch screen to select then adjust the depth by using Needle Depth upward/downward arrows on the right.
  • Page 22 7. Operating Instructions 7.2. System Operations 7.2.6. Injector Button & LCD ① ② ③ Item Description Move back position holder Backward Button Keep pressing the button for 2 seconds then it automatically moves back. Press the button once more to stop the movement. Forward Button Move position holder forward ...

  • Page 23: Maintenance

    Routine maintenance may be performed by clinic staff unless otherwise specified. Any maintenance procedure not mentioned in this chapter must be performed only by Eunsung Global personnel. The system is designed to operate reliably without any need for operator maintenance. However, the outer surfaces of the system should be kept clean for hygienic reasons and the cartridge window should be cleaned between sessions to enable effective treatment.

  • Page 24: System Error Messages

    All error messages are listed in the following along with corrective action if applicable. The following does not attempt to list all possible system failures. Any error not listed should be referred to your local representative of Eunsung Global. Message Displayed Description The message appears when user press the STADNBY/READY button at the injector for more than 2 seconds.

  • Page 25: Troubleshooting

    8. Maintenance 8.4. Troubleshooting Possible Cause Solution Trouble Power cable is not ▪ Check whether the power is on connected properly ▪ Check whether the power cable is connected Power ▪ Check after rebooting (Turn off the device and wait for 10 seconds then Monitor freeze Problems turn on the device)

  • Page 26: Warranty

    Improper use or adjustment of this system may invalidate the service warranty agreement. Please contact  your local representative of Eunsung Global before attempting to troubleshoot this system in any manner other than specified in this manual. Before returning merchandise, obtain prior approval from Eunsung Global.
  • Page 27 Body LCD : 5.0 Inch, Touch Screen Weight 4.7 Kg (Body + Injector) 11. Customer Support Sales Representatives Manufacturer Eunsung Global Corp. #1102~1105, 53, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-706,Korea Tel: +82-2-514-9713(Rep) Fax: +82-2-514-9716 e-mail: es@esglobal.co.kr/www.esglobal.co.kr Tel. 02-514-9713 / Fax. 02-514-9716 E-mail: es@esglobal.co.kr...
  • Page 28 History Date Revision Details Author 2015.04  Eng ver., of Vital Injector2’s operator manual is completed. Kim, SW...
