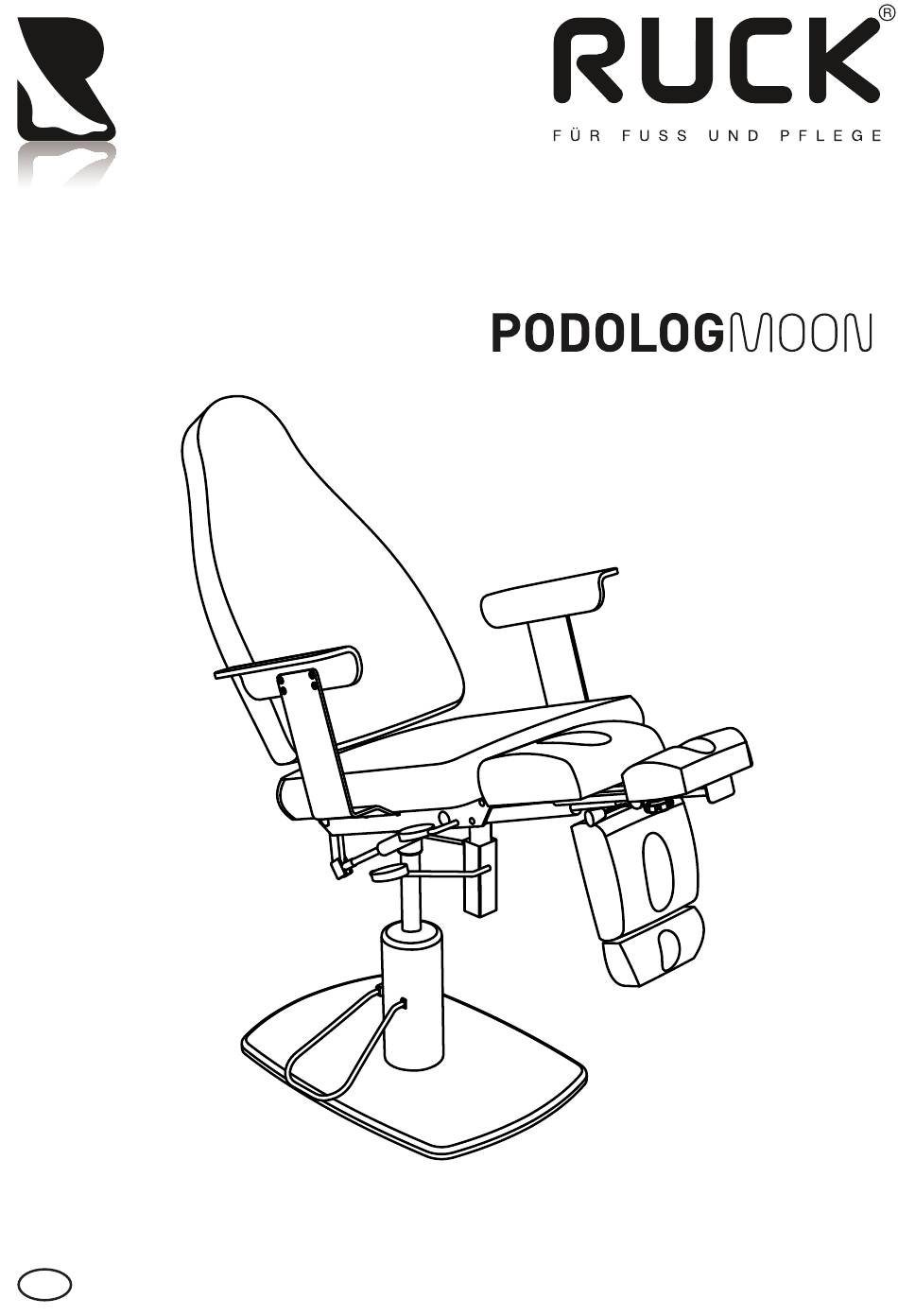

- Page 1 COMFORT Operating Instructions | Revision 1 | Print | REF 8000302...
- Page 2 10121_Gebrauchsanweisung_PODOLOG_MOON_DE.pdf 10121_Operating_Instructions_PODOLOG_MOON_EN.pdf HELLMUT RUCK GmbH | Daimlerstraße 23 | D - 75305 Neuenbürg, Germany web www.hellmut-ruck.de | tel. +49 (0)7082. 944 20 | fax +49 (0)7082. 944 22 22 This is a translation of the manufacturer’s original operating instructions. Copyright ©...
- Page 3 Kind regards, HELLMUT RUCK GmbH PODOLOG ®...
-
Page 4: Table Of Contents
F Ü R F U S S U N D P F L E G E 4 | CONTENTS SYMBOLS USED ................PAGE 5 PRODUCT DESCRIPTION .............PAGE 6 PODOLOG MOON COMFORT ............PAGE 6 ® SAFETY NOTICES.................PAGE 9 INTENDED PURPOSE ................PAGE 10 USAGE SITE ..................PAGE 10 SCOPE OF DELIVERY ..............PAGE 11 TRANSPORT | UNPACKING | STORAGE ........PAGE 11... -
Page 5: Symbols Used
F Ü R F U S S U N D P F L E G E SYMBOLS USED SYMBOLS USED This symbol identifi es a poten- The disposal notice tial point of danger for people or must be complied for the device itself. It must be with! taken note of. -
Page 6: Product Description
F Ü R F U S S U N D P F L E G E PRODUCT DESCRIPTION 1.13 1.10 1.11 1.12 NECK CUSHION RELEASE MECHANISM FOR GAS-PRES (NOT INCLUDED/ OPTIONAL 10117) SURISED LEVER BACK CUSHION RELEASE MECHANISM FOR SEAT TILT 1.10 SEAT CUSHION CALF CUSHION... - Page 7 F Ü R F U S S U N D P F L E G E OPERATION - HEIGHT ADJUSTMENT The PODOLOG MOON comfort ® can be pumped upwards by actuating the pedal (1). Continually actuating the pedal lowers the seat section back into its mounting position.
-
Page 8: Podolog ® Moon Comfort
F Ü R F U S S U N D P F L E G E OPERATION - BACK INCLINATION The back section of the PODOLOG MOON comfort ® can be variably adjusted by actuating the lever (1). The seat section of the PODOLOG MOON comfort can be ®... -
Page 9: Safety Notices
Safeguards and cladding elements are installed for the protection of the patient and user. They must not be removed, changed or bypassed. HAVE IDENTIFIED DEFECTS RECTIFIED IMMEDIATELY! Contact RUCK SERVICE immediately: Tel + 49 7082 944 22 55 Daily function checks Prior to each treatment the checks listed below must be executed: •... -
Page 10: Intended Purpose
F Ü R F U S S U N D P F L E G E 10 | SAFETY NOTICES INTENDED PURPOSE The PODOLOG MOON comfort is used for supporting customers in a sitting or ® reclining position for the duration of treatment under supervision (maximum 6-7 hours). -
Page 11: Scope Of Delivery
F Ü R F U S S U N D P F L E G E SAFETY NOTICES SCOPE OF DELIVERY Check that the delivery is complete. 1. Treatment chair 2. Armrests 3. Levelling pads 4. Operating instructions TRANSPORT | UNPACKING | STORAGE The chair should be delivered and temporarily stored in the transport box. - Page 12 F Ü R F Ü R F U S S F U S S U N D U N D P F L E G E P F L E G E 12 | SAFETY NOTICES Set-up Diagram | Space Requirements Always ensure that the chair is moved far enough away from the wall that the backrest can be freely moved from the sitting position to the maximum fl...
-
Page 13: Important Use Regulations
F Ü R F Ü R F U S S F U S S U N D U N D P F L E G E P F L E G E SAFETY NOTICES INSTALLATION OF THE ARMRESTS (Installation position is identical for folding armrests) IMPORTANT USE REGULATIONS Positioning of the chair... -
Page 14: Operation
F Ü R F U S S U N D P F L E G E F Ü R F U S S U N D P F L E G E 14 | OPERATION - ROTATION The PODOLOG MOON comfort ®... -
Page 15: Adjustment Of Calf Support And Foot Support
F Ü R F U S S U N D P F L E G E F Ü R F U S S U N D P F L E G E OPERATION – CALF SUPPORT AND FOOT SUPPORT ADJUSTMENT OF CALF SUPPORT AND FOOT SUPPORT For an optimal ergonomic mode of operation, the patient's leg or foot is brought into diff... -
Page 16: Extending Foot Support
F Ü R F U S S U N D P F L E G E F Ü R F U S S U N D P F L E G E 16 | OPERATION EXTENDING THE FOOT SUPPORT To extend the foot support to the desired length, release the hand wheel 1.12 of the PODOLOG MOON comfort. -
Page 17: Maintenance
DERED NULL AND VOID. ONLY ORIGINAL SPARE PARTS MAY BE USED. AS REQUIRED, REQUEST THE NECESSARY SERVICE INSTRUCTIONS AT THE FOLLOWING AD- DRESS: RUCK SERVICE HELLMUT RUCK GmbH Daimlerstrasse 23 75305 Neuenbürg Germany +49 (0)7082 944 2 255 +49 (0)7082 944 2 259 email service@hellmut-ruck.de... -
Page 18: Disinfection, Cleaning And Care
® (item no. 2944101). When the treatment is completed, the seating and back sur- face and the hand and foot switches are wiped with alcohol-free RUCK disinfec- ting cloths (item no. 2942801) or RUCK alcohol-free MAXI fl eece cloths (item ®... - Page 19 Then use the RUCK disinfecting cloths containing alcohol (item ® no. 2940401) or a cleaner containing alcohol (alcohol content <50%). RUCK recommends that you use disposable plastic covers wherever possible. After cleaning and disinfection, surface disinfectants must be allowed to eff ectively evaporate before the next treatment;...
-
Page 20: Fitting Cushions
F Ü R F U S S U N D P F L E G E 20 | FITTING CUSHIONS As shown in the illustrations below, the cushions of the treatment couch can be replaced individually by loosening the screws. PODOLOG MOON comfort ®... -
Page 21: Disposal
F Ü R F U S S U N D P F L E G E SPARE PARTS | DISPOSAL SPARE PARTS Please request spare parts from RUCK SERVICE. +49 (0)7082 944 22 55 +49 (0)7082 944 22 59 email service@hellmut-ruck.de DISPOSAL ENVIRONMENTAL HAZARD! Incorrect disposal endangers our environment. -
Page 22: Warranty
The warranty runs from the date of purchase when the product was fi rst bought. The date of purchase must be confi rmed by the sales receipt. Within the scope of the warranty, Hellmut Ruck GmbH will, at no charge, either repair or replace the defective PODOLOG ®... -
Page 23: Technical Data
F Ü R F U S S U N D P F L E G E TECHNICAL DATA Mounting height 54 cm Highest seat position 74 cm Highest position – leg rest 117 cm Seat width 52 cm Seat depth 54 cm Total length –... - Page 24 HELLMUT RUCK GmbH Daimlerstrasse 23 D -75305 Neuenbürg, Germany tel +49 (0)7082. 944 20 fax +49 (0)7082. 944 22 22 E -mail contact @ hellmut-ruck.de web www.hellmut-ruck.de...
