Add Time Controlled Alert Tones and
Emergency Tones to Your Paging System

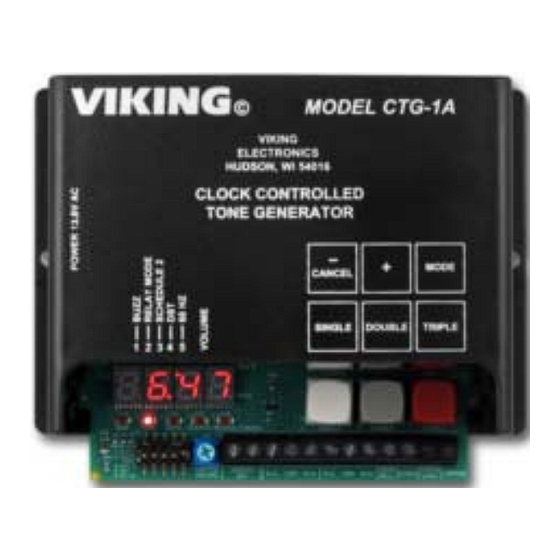

Viking's model CTG-1A is a clock controlled tone
generator designed to provide accurately timed
bong alert tones or buzzer alert tone sounds over
an existing paging system.
The CTG-1A can be programmed to output single,
double or triple alert tones with up to 128 events
in a 24 hour period in two separate schedules.
These bong / buzzer sounds are ideal for
indicating the start and end of shifts, break times,
lunch periods, etc. for factories, schools, or any
business requiring an audible indication of
specified times. Each day of the week can be
programmed to either on or off, allowing you to
turn off the alert tones during specific days of the
week (weekends, etc.) In place of sending tones,
the CTG-1A can operate in the Timed Relay Mode
Features
• Accurate 24 hour digital time clock displays
hours and minutes synced to AC power
• User programmable 24 hour, 128 event timer in
two separate manually selected schedules
• Programmable day of week on/off feature
• Programmable single, double or triple alert
tone output (selectable bong or buzzer)
• Three contact closure controlled sounds:
1) Emergency siren (yelp) sound
2) Temporal (slow whoop) evacuation signal
*NFPA/ANSI compliant when used with
supporting equipment
3) Doorbell (chime) sound
• Volume controllable, 600 Ohm line level audio
output
• Non-volatile memory with four day clock backup
• Two sets of DPDT relay contacts for muting
paging or background music during alert tones or
timed relay events
• Switchable 50 / 60 Hz operation
• Switch for Daylight Saving Time
• Timed Relay Mode
www.VikingElectronics.com
Information: 715-386-8861
PRODUCT MANUAL
to turn on or off the relay at certain times of the day.
The CTG-1A has three contact closure inputs for
triggering an emergency siren, evacuation signal
or a doorbell sound.
Applications
• Signal the beginning and end of class periods, breaks,
and lunch periods for schools
• Signal the beginning and end of shifts, breaks, and
lunch periods for factories and other businesses
• Provides a doorbell and / or alarm sounds over an
existing paging system, for such applications as door
entry, fire, severe weather, etc.
• Use with Viking's DVA-2WA to provide timed
messages (DOD 110)
• Timed relay controller used with Viking's C-25O and
C-500 controllers to automatically forward entry calls
at certain times of the day
Specifications
Power: 120V AC / 13.8V AC 1.25A UL listed adapter
provided
Dimensions: 5.25" x 3.6" x 1.75" (133mm x 91mm
x 44mm)
Weight: 2 lbs (0.9 Kg)
Operating Temperature: 32°F to 90°F (0°C to 32°C)
Humidity: 5% to 95% non-condensing
Connections: 12 position cage clamp terminal strip
Internal Clock Backup Time: 4 days
Time Base: 50/60Hz AC power line
Time Base Backup Accuracy: +/- 5 ppm
Audio Output: 600 Ohm with volume adjust
potentiometer, maximum level = 17 dBm / 5.4Vrms
across 600 Ohm load
Relay Output: DPDT rated 30V DC @ 1A, 110V DC
@ 0.3A ,125V AC @ 0.5A (resistive loads)
