EN
User manual
v1.0 - 11/2017
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Yeti Convertible 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Gin Yeti Convertible 2

Summary of Contents for Gin Yeti Convertible 2

  • Page 1 User manual v1.0 - 11/2017...

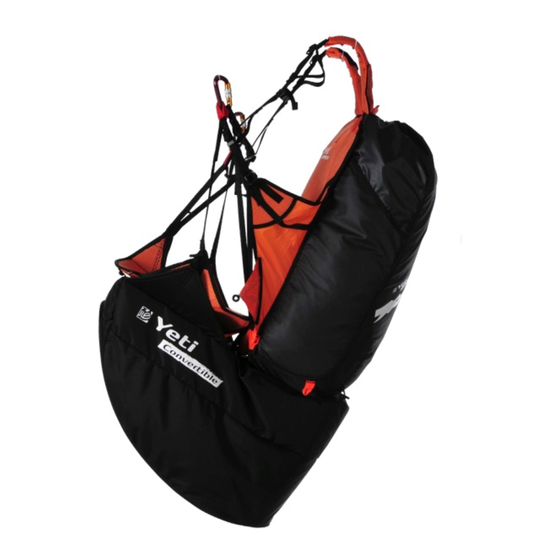

  • Page 2 Introducing the Yeti Convertible 2 The Yeti Convertible 2 is a lightweight reversible harness. It is ideal for hike ‘n fly, para-alpinism, travel, and soaring. The Yeti Convertible 2 features new advancements in lightweight materials combined with excellent geometry to maximise comfort and usability.

  • Page 3: Table Of Contents

    Specifications ............8 Before you fly ............9 Setting up Rescue installation Adjustments Helmet Storage .............20 Flying with the Yeti Convertible 2 ......21 General warnings and advice Pre-flight checks Rescue deployment Landing with the Yeti Contvertible 2 Miscellaneous Maintenance and repairs ........24...

  • Page 4: Thank You

    Thank you..for choosing Gin Gliders. We are confident you’ll enjoy many rewarding experiences in the air with your GIN harness. This manual contains important safety, performance and maintenance information. Read it before your first flight, keep it for reference, and please pass it on to the new owner if you ever re-sell your harness.

  • Page 5: Warning

    Always seek to expand your knowledge and to develop self-reliance. If there is anything you do not understand, consult with your local dealer as a first point of contact, with the GIN importer in your country or with Gin Gliders directly.

  • Page 6: About Gin Gliders

    About Gin Gliders Dream In forming Gin Gliders, designer and competition pilot Gin Seok Song had one simple dream: to make the best possible paragliding equipment that pilots all over the world would love to fly—whatever their ambitions. At Gin Gliders, we bring together consultant aerodynamists, world cup pilots, engineers and paragliding school instructors, all dedicated to fulfilling this dream.

  • Page 7: Development And Philosophy

    Development & Philosophy The Yeti Convertible 2 our latest lightweight reversible harness. It is a development from the orginal highly successful Yeti Convertible. We took your feedback onboard throughout the development. As a result we have managed to improve in all aspects.

  • Page 8: Specifications

    Specifications Size One Size Harness weight 1.4kg Certification The Yeti Convertible has EN certification, max load 120daN Certification Number: PH 192.2017 Delivery package 1 Harness 2 Carabiner (30mm) 1 Speedbar 1 Helmet cover - Delivery weight- 1.6kg Optional - Airbag (rescue combo) - Light Yeti rescue bridle (125 / 80cm) - Soft shackle...

  • Page 9: Before You Fly

    Setting up Speed system assembly The Yeti Convertible 2 is fitted with a fully functional, easy to use and lightweight speed bar. Careful attention has gone into the precise position for maximum comfort and usability. To assemble the speed system, first pass the line through the ceramic ring (1). Next, pass the line through the metal ring at the bottom edge of the seat (2).
  • Page 10 Connecting the main carabiner The carabiner attachment points are colour coded to match your GIN Glider. BLUE on the right and RED on the left to match your GIN glider. To connect your carabiner to the attachment points be sure to pass the carabiner through all 3 webbing loops on each side.
  • Page 11 Connecting the Airbag The Yeti Convertible 2 can be flown with an optional airbag. The Convertible 2 airbag is designed with a reserve container with a volume of 7 litters. There is one zipper and 3 connection points on each side of the airbag.
  • Page 12 Adjustments The Yeti Convertible harness is designed with full feature adjustments to allow you to adjust to your harness to your individual physique and flying style. It is important to adjust it correctly to ensure you can easily slide into the sitting position after take off. A poorly adjusted harness can adversely affect the flying characteristics of your paraglider.
  • Page 13 Rescue Installation and compatibility check aspect of rescue installation, seek professional Gin Gliders recommend that rescue installation is performed properly by a competent person. The advice! rescue parachute is a pilots last resort and failure to pack or connect the reserve parachute in the correct way may cause death or severe injury.
  • Page 14 The deployment bag of other manufacturers’ rescue systems (i.e. non-GIN rescue systems) may have different loop positions which may cause a deployment failure. Be sure to contact your parachute dealer or a qualified professional to check the connection, position and secure deployment, and refer to the rescue manual for details.
  • Page 15 Connecting the rescue bridle be sure to secure the connection using tape, To connect a rescue to your harness we recommend using a GIN Rescue Carabiner. If you choose to rubber bands or heat shrink wrap. If the use different type of connector, it should be rated at least 9 times the maximum weight. For example, our...
  • Page 16 If you have any doubts speak with your instructor or GIN dealer. Main rescue installation guide Begin by first connecting the Y bridle and the rescue handle to the rescue parachute . Install the rescue into the harness with the handle connection FACING UP and the extra para line neatly folded on the bottom of the container.
  • Page 17 Insert reserve with rescue bridle on Connect zipper Make sure the rescue handle is in the Pass anchor loops through outer cover bottom and handle attachment facing out middle eyelets Pass the rescue handle wire throught the Place the rescue handle into outer cover Close zipper IMPORTANT: The zipper head must go to anchor loops...
  • Page 18 Rescue shoulder connection To connect the rescue bridle to the harness shoulder attachment point we recommend using the GIN Soft Shackle. 1) Use a maillon or soft shackle to connect the rescue bridle to the shoulder attachment point. 2) Use the BLACK elastic band fixed to the shoulder attachment to hold the attachment point close to the harness.
  • Page 19 Connecting a front reserve The reserve risers can be connected to: 1) Main carabiner (as shown in the photo) - Be sure that the carabiner gate is facing the pilot to allow the reserve to freely slide up the carabiner in the event of a rescue deployment.

  • Page 20: Rescue Installation

    After packing the harness there are several ways to pack the helmet into or onto the bag. Provided with your Yeti Convertible 2 you will find a helmet cover, this cover can be used to secure the helmet on to the top or rear of the back pack.

  • Page 21: Flying With The Yeti Convertible 2

    Flying with the Yeti Convertible 2 IMPORTANT: Use a complete and consistent system of pre-flight checks and repeat the same sequence every flight. General warnings and advice Before every flight, check the following: WARNING: During an incident in flight, always Are you in good physical and mental condition?

  • Page 22: Rescue Deployment

    Rescue Deployment In the event of an emergency, you must quickly evaluate your height and the seriousness of the incident. A seconds hesitation in deploying the reserve could prove fatal if there is insufficient height. If you decide to deploy the rescue: 1) Look for the rescue handle and grasp it firmly with one hand 2) Pull forwards and upwards on the handle to release the deployment bag from the rescue container.

  • Page 23: Landing With The Yeti Contvertible

    Miscellaneous Towing The Yeti Convertible 2 can be used for towed launches. You can use a towing adapter directly hooked to the main carabiners. For further details, refer to the documentation provided with your tow release, or ask a qualified towing instructor at your flying site.

  • Page 24: Maintenance And Repairs

    Maintenance and repairs IMPORTANT: Any repairs should only be carried out by the manufacturer or by an approved agent. This will ensure that the correct The materials used in this harness have been carefully selected for saving weight. The harness is materials and repair techniques are used.

  • Page 25: Storage

    Storage Stored at a temperature between 10° and 25° C and in relative humidity between 50 and 75%. Make sure too that the harness is not stored in a place where animals such as mice or cats could use it as a place to sleep.

  • Page 26: Gin Quality And Service

    The synthetic materials used in a harness must be disposed of properly. If you are not able to arrange appropriate disposal, Gin Gliders will be happy to recycle the harness for you. Send the harness with a short note to this effect to Gin Gliders Inc. Product registration Register this product to receive safety updates, and improved guarantee and repair service.

  • Page 27: Final Words

    There is no substitute for self-responsibility and good judgment. In the end, paragliding offers a unique opportunity to learn to take control of your own destiny. Memento mori, carpe diem! Fly safely, and...E N J O Y! GIN team...
  • Page 28 Inspections and repairs overview Date Work carried General conditions Completed by Stamp and signature on delivery (name)
  • Page 29 Gin Gliders INC. 2318-32, Baegok-daero, Moyheon-myeon, Cheoin-gu, Yongin, Gyeonggi-do, Korea 17063 tel. +82 (0)31 333 1241 fax. +82 (0)31 334 6788 support@gingliders.com Dream. Touch. Believe www.gingliders.com...
