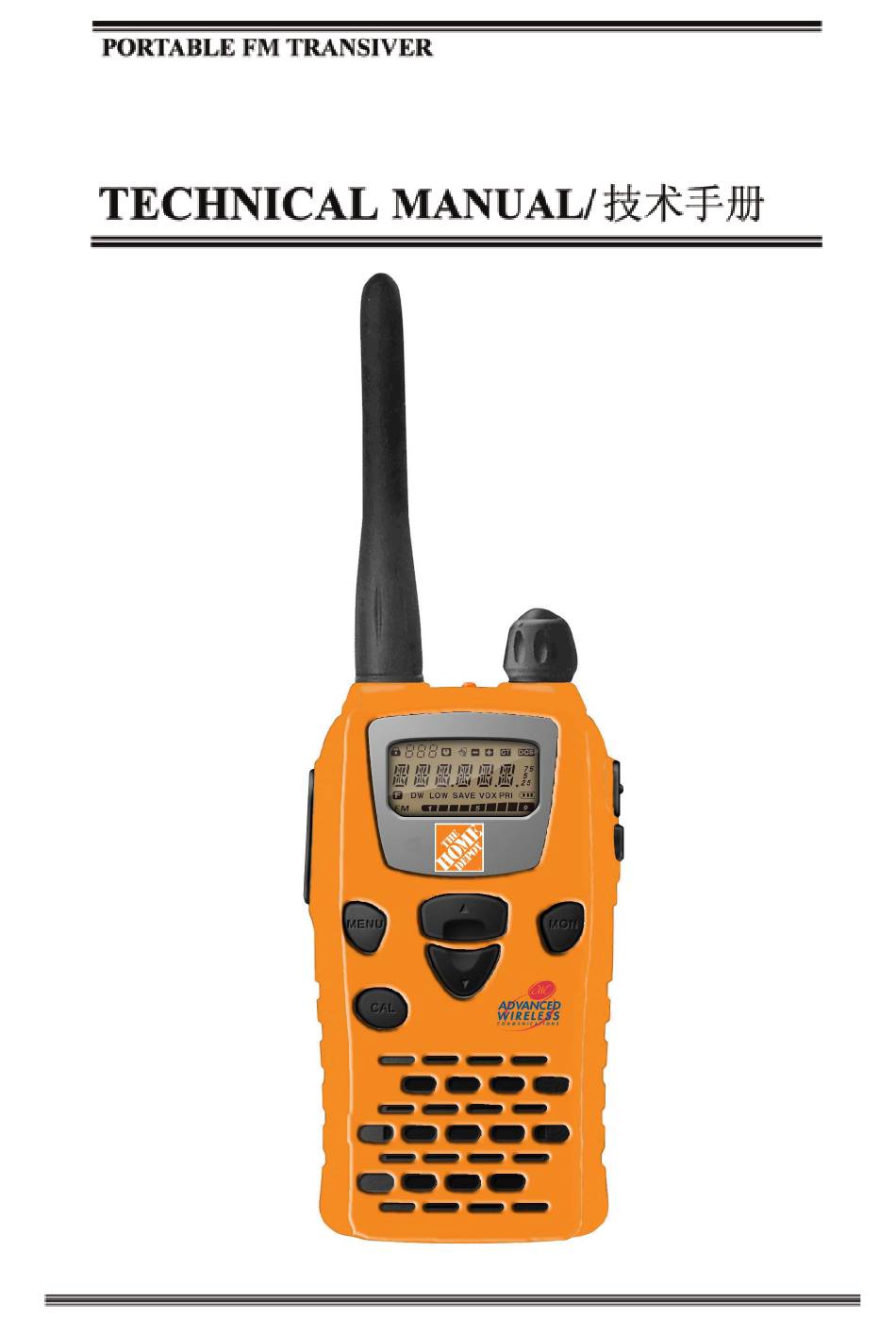

- Page 1 HD-1000...
-
Page 2: Ordering Replacement Parts
GENERAL/概述 INTRODUCTION 引言 SCOPE OF THIS MANUAL 本手册的范围 本手册是提供给熟悉通信专业并且具有维修经验的技术人员 This manual is intended for use by experienced technicians 使用的。 它包括了维修该设备所 需要的全部资料和现行公布 familiar with similar types of commercial grade communications 的数据。在出版 后可能发生变动，如果需要，可以使用《维修 equipment. It contains all required service information for the 通报》或《手册修订本》进行补充。... - Page 5 2.当电源开关打开，可以进入用户模式。 2. When the POWER is switched ON, you can enter user mode. Programming software description 编程软件说明 The software allows a user to program the HD-1000 radios via 该软件允许用户经由编程接口电缆对HD-1000进行编程设定。 programming interface cable. • Programming with IBM PC 使用IBM计算机编程...
-
Page 6: Disassembly For Repair
DISASSEMBLY FOR REPAIR/维修时拆卸部分 Separating the case assembly from the chassis 从底座上分离外壳 Remove the knob 1 and the round nut 2 1.取下旋扭 和环形螺母 2.取下六颗螺钉 和 Remove the six screws 3 and 4 3.掀开外壳底部的左右两侧，取下底座，并外壳中取出 Expand the right and left sides of the bottom of the case assembly, lift the chassis, and remove it from the case assembly 5.
