DALI
DALI
379.5
HF sensor antenna
Model: SAM7
Detection range (DxH): 12 x 6m
PIR Sensor Head
Model: HIR02
Detection range (DxH): 6 x 3m
HIGHLIGHTS
• Standby power < 0.5W
• Automatic output reduction 80%--60%--40%--20% against overheat
• Failure DALI feedback
• Flicker-free dimming from 100%~30%
• In compliance with DALI 2 standard.
• DALI and switch-Dim can be used at the same time.
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525
E: info@hytronik.com

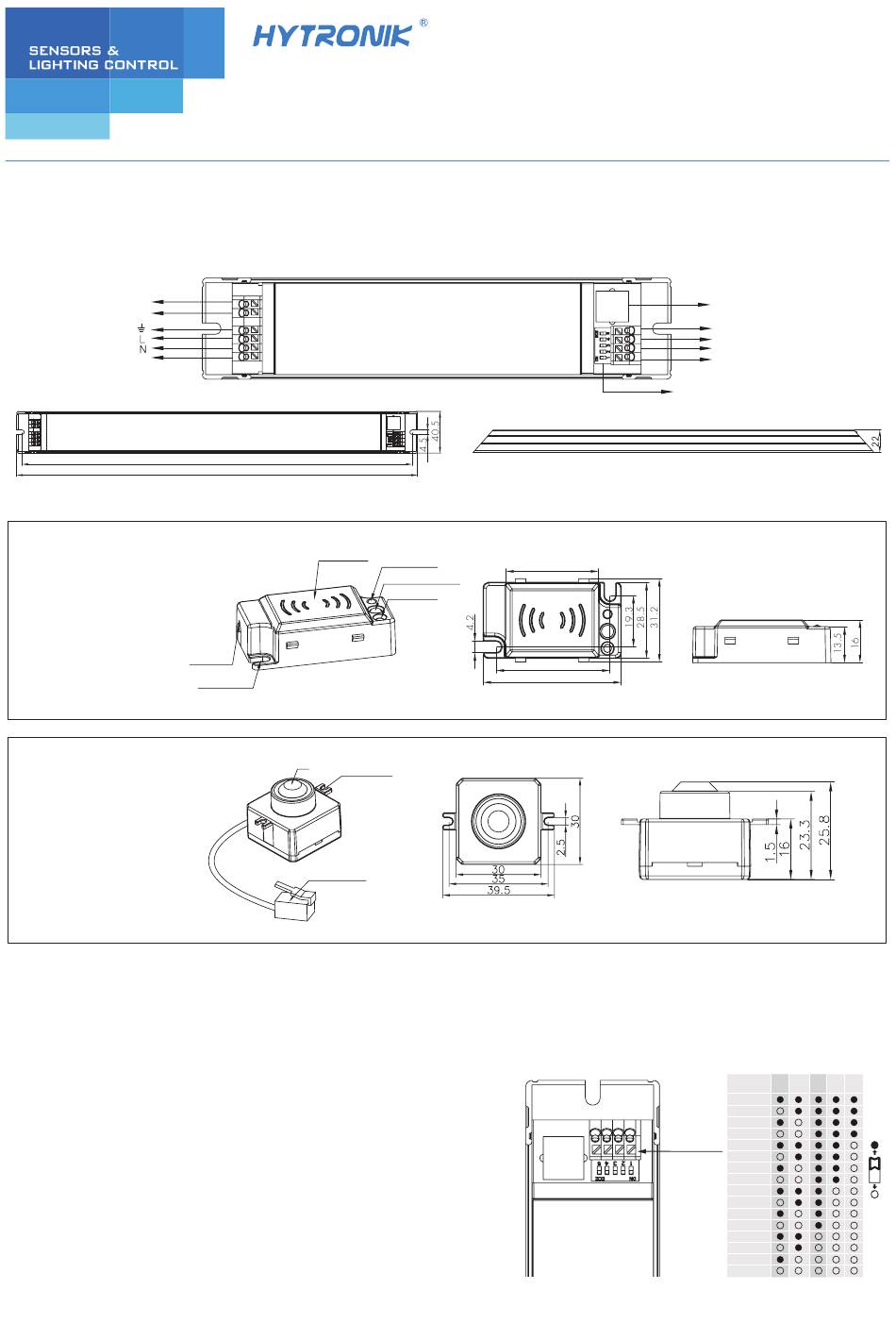

INSTRUCTION MANUAL FOR 50W HEX DRIVE
MODEL NO.: HED1050L + SAM7 / HIR02
390
Antenna module
Cable entry
Installation hole
Lens
Installation hole
RJ12 connector
F: 00852-30116936
LED indication
35.2
Infrared remote receiver
Daylight sensor
43.3
52.5
LED CURRENT SELECTION
The current can be easily configured by choosing the correct
combination of the DIP switches (see table below):
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
F:86-752-2777877
E: info@hytronik.com
W:www.hytronik.com
RJ12 sensor antenna
1-10V
LED
DIP switch (for LED
current seclection)
-
+
-
+
mA
1
2
3
4
5
600mA
575mA
550mA
525mA
500mA
475mA
450mA
425mA
400mA
375mA
350mA
325mA
300mA
275mA
250mA
225mA
