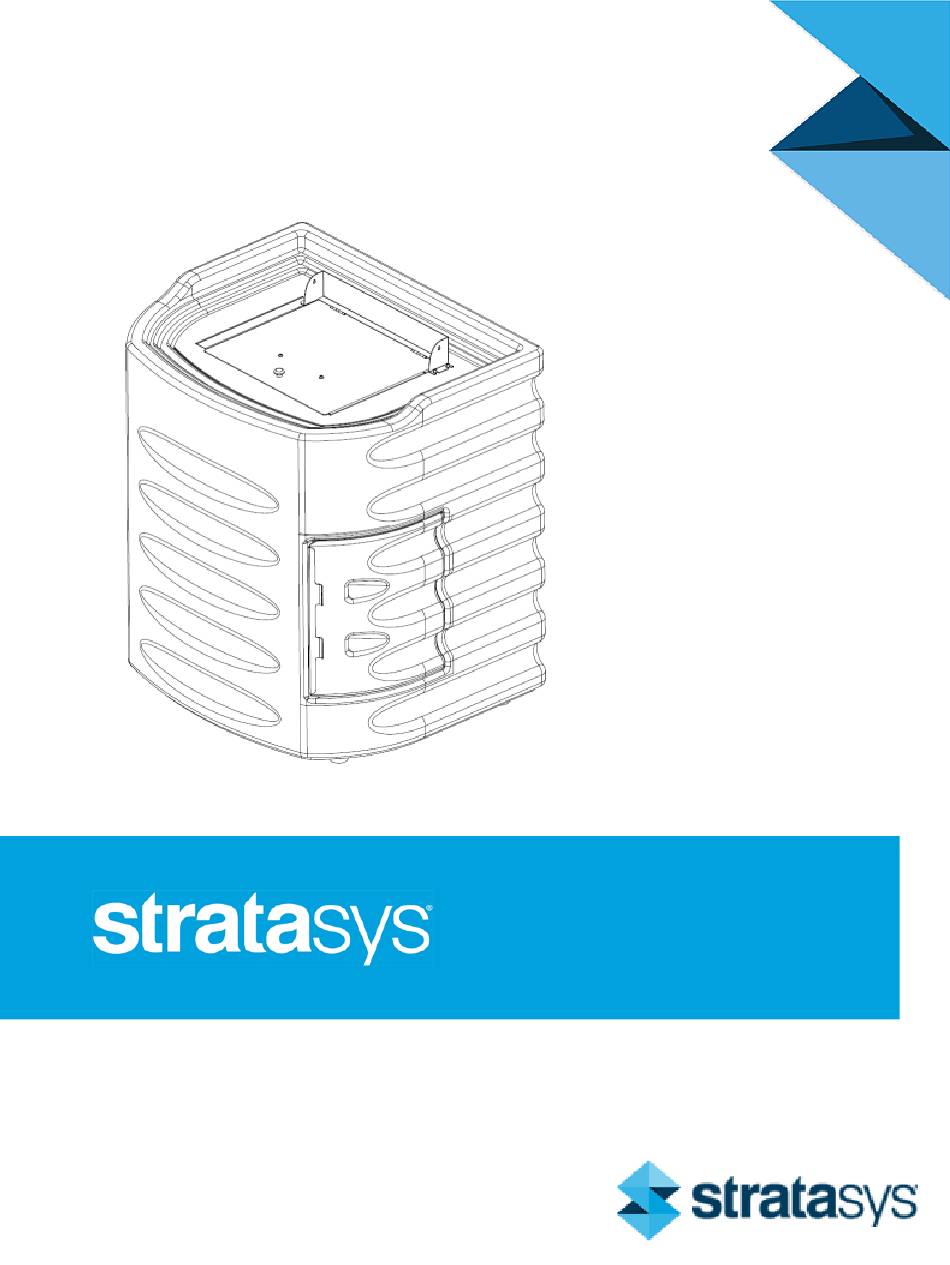

- Page 1 CLEANSTATION™ CSIIP INSTALLATION GUIDE DOC-03204 Rev. B...
- Page 2 CleanStation™ CSIIP Installation Guide Copyright Copyright © 2016 Stratasys Ltd. All rights reserved. This documentation contains proprietary information of Stratasys Ltd. This information is supplied solely to assist authorized users of this cleaning system. No part of this document may be used for other purposes, and it may not be disclosed to other parties. The specifications on which this document is based are subject to change without notice. No part of this book may be reproduced in any form or by any means, nor stored in a database or retrieval system, without prior permission in writing from Stratasys Ltd. If this document is distributed as a PDF file, you may print it for internal use. February 2016 DOC-03204 Rev. B Trademarks Stratasys is a registered trademark of Stratasys Ltd. All names of products and services cited in this book are trademarks or registered trademarks of their respective companies. DOC-03204 Rev. B...
-
Page 3: Table Of Contents
CleanStation™ CSIIP Installation Guide Contents 1 Introduction 1.1 About this Guide 2 Safety Guidelines 3 Installation 3.1 Required Items 3.2 Unpacking the CleanStation™ CSIIP 3.3 Connecting the Water Supply and Drainage Hoses 3.4 Attaching a Plug to the Power Cable (for 220 V Units) 3.5 Plugging the Power Cable into the Power Outlet 3.6 Leveling the CleanStation™... -
Page 4: Introduction
CleanStation™ CSIIP Installation Guide Introduction The CleanStation™ CSIIP uses agitation and an alkaline cleaning solution to rapidly dissolve soluble Support material from printed parts and models. About this Guide The information and requirements provided in this document ensure proper installation of the CleanStation™ CSIIP. Install the CleanStation™ CSIIP as described in this document. DOC-03204 Rev. B... -
Page 5: Safety Guidelines
CleanStation™ CSIIP Installation Guide Safety Guidelines The following general guidelines, together with the instructions provided throughout this guide, ensure user safety while operating and maintaining the CleanStation™ CSIIP. If the system is not installed and operated as specified, the user's safety might be compromised. • Make sure that the site has been prepared as specified in the Site Preparation Guide. • All electrical work is to be performed by personnel qualified by local authorities. • The power cable should be connected to an easily accessible electric socket near the CleanStation™ CSIIP location. • Make sure that a Residual Current Device (RCD) has been installed. • Never move the CleanStation™ CSIIP when there is liquid in the tank. DOC-03204 Rev. B... -
Page 6: Installation
CleanStation™ CSIIP Installation Guide Installation Required Items Prepare the following: • protective glasses • utility knife • strap cutter • scissors • Phillips screwdriver • 14-mm socket wrench ® • 3.2-mm hex (Allen ) key Unpacking the CleanStation™ CSIIP To unpack the unit: 1. Check the shock detector label to ensure that the package has not been damaged. 2. Make sure that the package has been moved as close as possible to its final location. 3. ... - Page 7 CleanStation™ CSIIP Installation Guide 4. Using a Phillips screwdriver, remove the screws that secure the package to its platforms. Figure 2 Removing the package screws 5. Remove the packaging from the unit. Figure 3 Removing the packaging 6. Remove the ramp and position it behind the unit. The ramp is packed between the back of the unit and the foam supports. DOC-03204 Rev. B...
- Page 8 CleanStation™ CSIIP Installation Guide 7. Remove the start-up kit. Figure 4 Unit with start-up kit and ramp lowered 8. Using scissors, remove the wrapping from the unit. Figure 5 Removing the wrapping DOC-03204 Rev. B...
- Page 9 CleanStation™ CSIIP Installation Guide 9. Turn the leveling feet adjustment gears to raise the legs until the unit rests on its four wheels. Figure 6 Lowering the unit onto its wheels 10. Roll the unit off of the platform to its final location. 11. Using a 3.2 mm hex key, remove the three screws shown below, but do not discard them. Figure 7 Removing the screws DOC-03204 Rev. B...
- Page 10 CleanStation™ CSIIP Installation Guide 12. Install the vent cover with the three screws removed in step 11. Figure 8 Installing the vent cover 13. Using a 3.2-mm hex key, remove the protective cover shown below. Figure 9 Removing the protective cover DOC-03204 Rev. B...
-
Page 11: Connecting The Water Supply And Drainage Hoses
CleanStation™ CSIIP Installation Guide Connecting the Water Supply and Drainage Hoses To connect the water supply hose: 1. Attach the supply hose to the SUPPLY inlet. 2. Attach the other end of the hose to the facilities tap. To connect the drainage hose: 3. Attach the d rain h ose to the DRAIN outlet. 4. Attach the other end of the hose to a drain, according to local waste disposal regulations. Caution: When the selector switch (on the operator panel) is set to DRAIN TANK and the CONTROL VALVE is set to DRAIN TANK, high pressure can cause the drain hose to be freed from the drain if it is not properly secured. -
Page 12: Attaching A Plug To The Power Cable (For 220 V Units)
CleanStation™ CSIIP Installation Guide Attaching a Plug to the Power Cable (for 220 V Units) It is the customer’s responsibility to ensure that the power connector is prepared by personnel qualified by local authorities. The CleanStation™ CSIIP unit is shipped with one of the following: • for 90-120 VAC: a power cable, including a NEMA 5-15 (Type B) plug suitable for the USA. For regions with this voltage that use a different type of plug, the customer must provide a plug that meets local requirements and ... -
Page 13: Plugging The Power Cable Into The Power Outlet
CleanStation™ CSIIP Installation Guide Plugging the Power Cable into the Power Outlet To power-on the CleanStation™ CSIIP: 1. Open the operator panel door. 2. Make sure that the selector switch is set to OFF. 3. Plug the CleanStation™ CSIIP into the power outlet at the site. Figure 12 Plugging in the unit DOC-03204 Rev. B... -
Page 14: Leveling The Cleanstation™ Csiip
CleanStation™ CSIIP Installation Guide Leveling the CleanStation™ CSIIP 1. Turn the leveling feet adjustment gears until the unit rests on its leveling feet. 2. Place a spirit level on the top cover oriented from back to front. 3. Adjust the leveling feet as shown below until the bubble indicates that the unit is level. Figure 13 Leveling the unit—front to back 4. Orient spirit level from left to right and repeat step 3. Figure 14 Leveling the unit—left to right 5. After the unit is level, make sure that it is not resting on any of its wheels. DOC-03204 Rev. B... -
Page 15: Post-Installation
CleanStation™ CSIIP Installation Guide Post-Installation Perform the following, as described in the CleanStation™ CSIIP User Guide or the Service Manual: 1. Open the facilities water supply tap and fill the tank. There is no automatic shutoff valve. You need to shut the water tap when the tank is full. 2. Drain the tank without activating the pump. 3. While the tank is still being drained, activate the pump and make sure that the flow increases. 4. Fill the tank with water. 5. Verify that the controller is set to the desired temperature units. 6. Set the controller to two minutes, record the time, and activate the system from the controller. 7. While the CleanStation™ CSIIP is active: • ...
