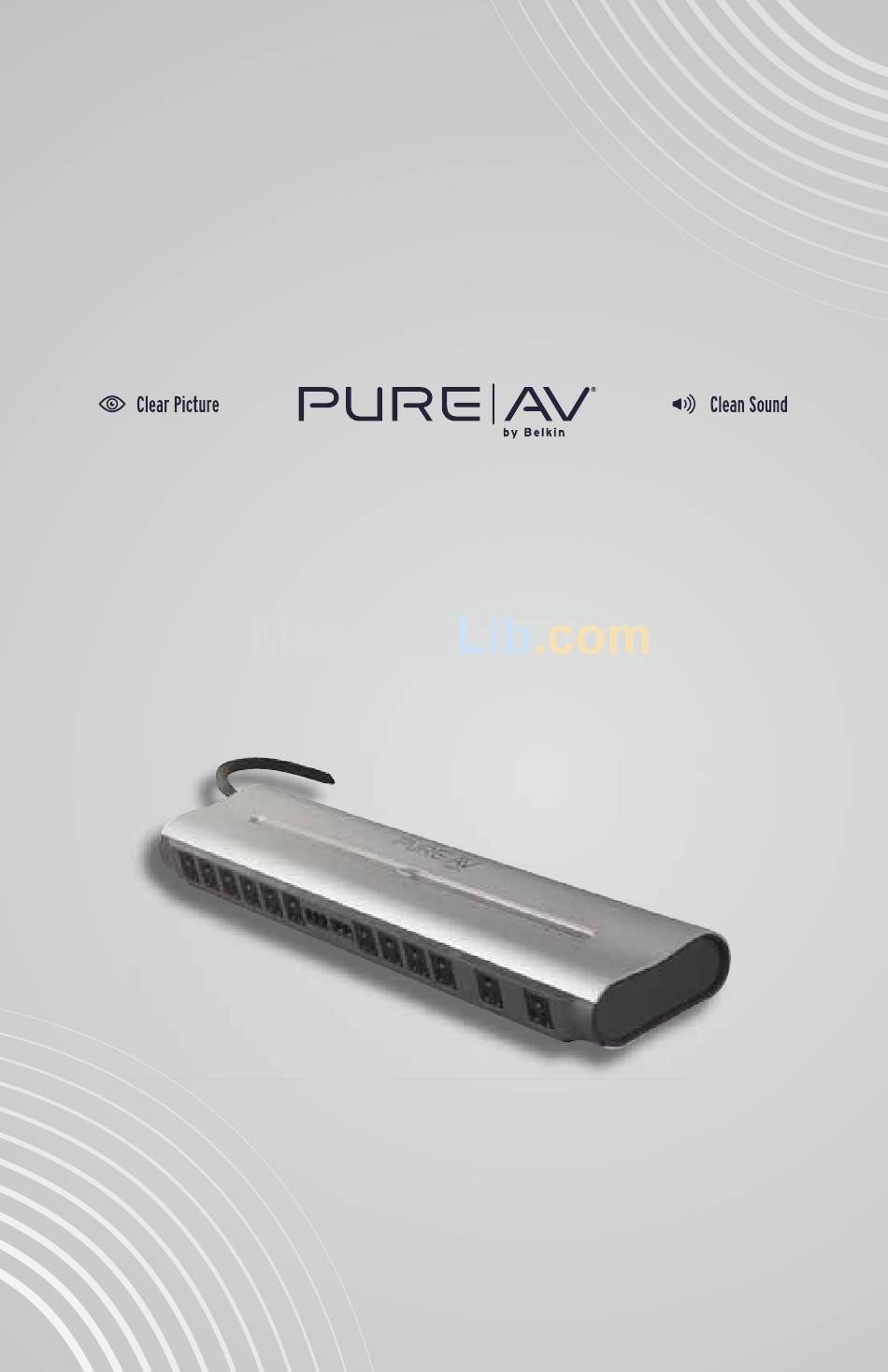

Page 1: User Manual
Home Theater Power Conditioner PF30L, PF31L, and PF40L User Manual AP11000-10 AP11200-12 AP11201-12... -
Page 2: Table Of Contents
Connect your Coaxial Cables/DSS Lines ... 10 Step 7 Connect your Broadband Ethernet Line (PF31L and PF40L only) ... 11 Step 8 Remote AC/DC Control (PF31L and PF40L only) ... 11 Troubleshooting ... 1 2 Belkin Warranty ... 13 Page... -
Page 3: Introduction
Clear Picture – Clean Sound Congratulations and thank you for purchasing the PureAV Power Conditioner. Belkin’s PureAV development team started with one simple goal—to build well-designed, functional, and attractive AV power products that bring our customers the best possible performance from their audio, video, and home theater equipment. -
Page 4: Power Conditioner Features
7. Audio Filter (switched) – Reduces line noise and interference to your audio components. 8. Video Filter (always on) – Reduces line noise and interference to your video components. Filter – Delivers high current to power-hungry PF30L PF31L... - Page 5 Power Conditioner Features 9. Digital Filter (always on) (PF40L only) – Reduces line noise and interference to your digital components. 10. Pay-Per-View/Phone-Line Input/Output – Protects Pay-Per-View, phone, or DSL lines from dangerous power surges that can damage your equipment. Built-in splitter turns one line into two. 11.
-
Page 6: Safety Precautions
Safety Precautions Warning – Grounding and Polarization This product must be plugged directly into a grounded AC power outlet (3- prong). Do not use a 3-to-2-prong adapter to defeat the grounding pin. Do not plug or “daisy-chain” this product into other electrical products such as surge protectors, power strips, or UPSes. -
Page 7: Hookup And Installation
Hookup and Installation Step 1 (optional) Mounting your Power Conditioner The wall-mount bracket is designed to be mounted to drywall or wood/plywood (cabinet or other wood furniture). The bracket can be mounted horizontally or vertically and will hold the PureAV Power Conditioner securely in either of these configurations. -
Page 8: Step 3
C. Tape – Connect your tape player power cord to the outlet labeled “Tape”. D. CD – Connect your CD player power cord to the outlet labeled “CD”. (PF30L, PF31L only) E. Auxiliary 01 – This outlet can be used to connect any other audio equipment you may have. -
Page 9: Step
Hookup and Installation Step 4 (PF40L only) Connect Digital Components to the Digital Filter (always on) The PureAV Power Conditioner model PF40L contains a digital filter that is optimized to clean and condition the power to all of your digital components. Like the video filter, these outlets are “always on”... -
Page 10: Step 5
Hookup and Installation Step 5 Connect your Pay-Per-View/Phone Line Your PureAV Power Conditioner comes equipped with Pay-Per-View/phone-line protection with a built-in splitter. These are standard RJ11 phone jacks and are labeled “Phone”. A. Connect one end of your telephone cable to the wall outlet to which you normally connect your phone line. -
Page 11: Step 6
Hookup and Installation Step 6 Connect your Coaxial Cables/DSS Lines Your PureAV Power Conditioner comes with three pairs of coaxial-cable connections to protect your system from dangerous electrical disturbances that can travel down your coaxial-cable lines. A. Cable TV – Connect the incoming cable television coaxial-cable line to the connector labeled “Cable IN”. -
Page 12: Step 7
Your new Power Conditioner is equipped with a “Remote AC/DC Control” jack (remote trigger). This allows you to power on and off the switched outlets on your Power Conditioner via the power switch on another component (receiver/preamp or other custom installation component) that is equipped with a “trigger out”... -
Page 13: Troubleshooting
Connecting the PureAV Power Conditioner to an improperly grounded outlet is not safe and will void all Belkin Corporation warranties. If the outlet is properly grounded and the “Ground Fault” light is still lit, please call Belkin Corporation for assistance. -
Page 14: Belkin Warranty
Belkin Warranty Belkin Corporation warrants to the original purchaser of any Belkin Power Conditioner for the life of the product, that the Power Conditioner shall be free of defects in design, assembly, material, or workmanship, and will repair or replace, at its option, any defective product free of charge. - Page 16 Boeing Avenue 333 1119 PH Schiphol-Rijk, The Netherlands +31 (0) 20 654 7300 +31 (0) 20 654 7349 fax © 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. P74521-B Belkin Ltd. Express Business Park, Shipton Way...
