XW110/XW111 WiFi™ Users Manual

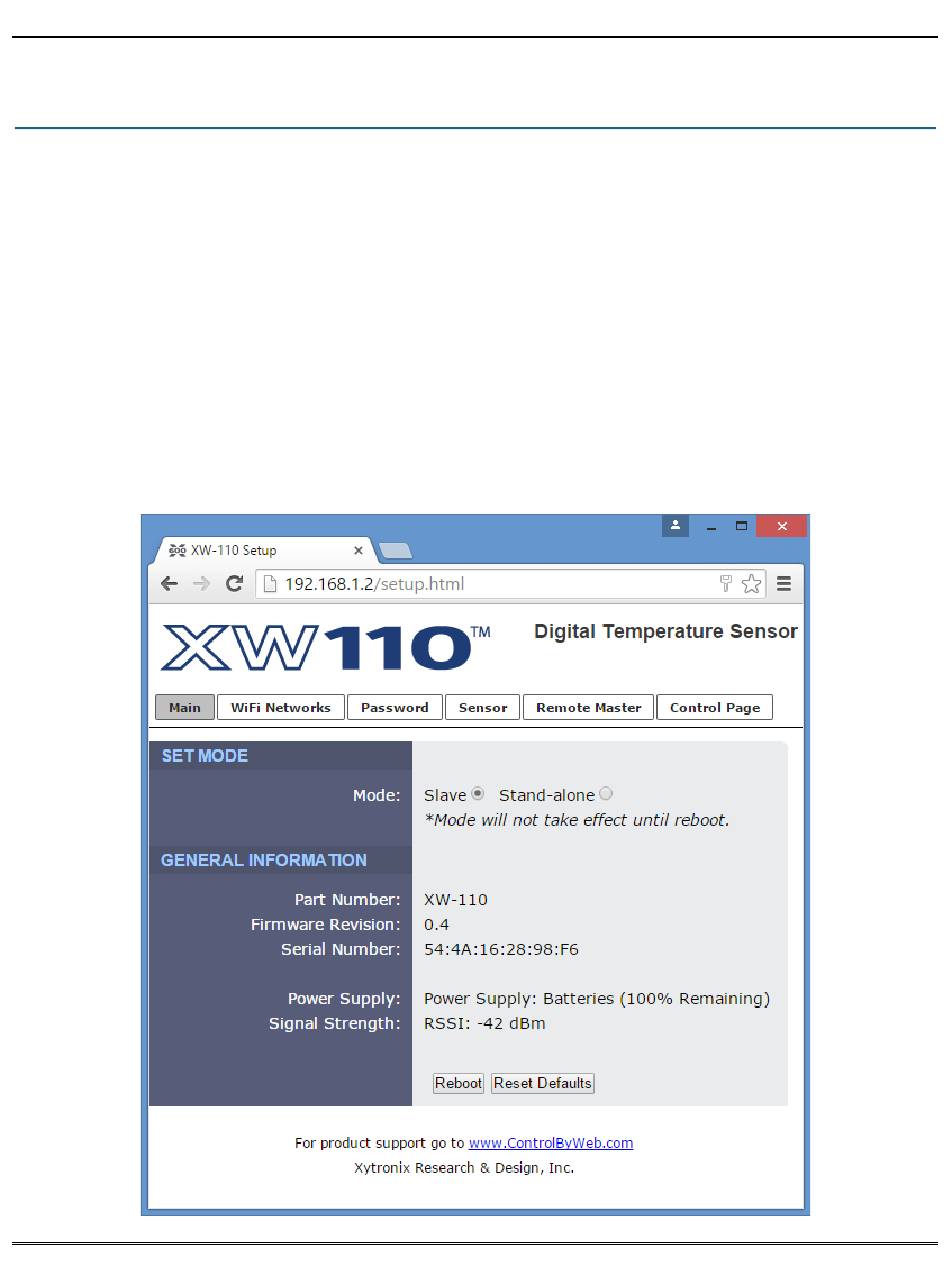

3.2 Main Tab – Slave
This tab is identical to the tab described above (Main Tab - Stand Alone) with the exception that the
Slave mode has been selected. With Slave selected, the Alert tab is replaced by the Remote Master
tab.
Select "Slave" if the XW11x is to make measurements and send data to a master device such as an X-
600™. In this mode, the XW11x sleeps most of time conserving battery power. It periodically awakens,
makes simple measurements and transmits (pushes) the data to a remote server. Access the Remote
Master tab to select how often measurements are made and to which server the data is to be sent.
The Mode setting will not take effect until the XW11x is rebooted. To do this click the Reboot button after
making a change to the Mode.
In the low power Slave mode the web server is no longer accessible. To make subsequent changes you
must remove the top cover and press the "access point" push button to force the XW11x into a state
where you can connect to and access the internal web server again.
Xytronix Research & Design, Inc.
Setup Pages
Page 11
