Lippert Components Power Gear M2-Sync Owner's Manual page 4

M²-Sync Room Slideout System

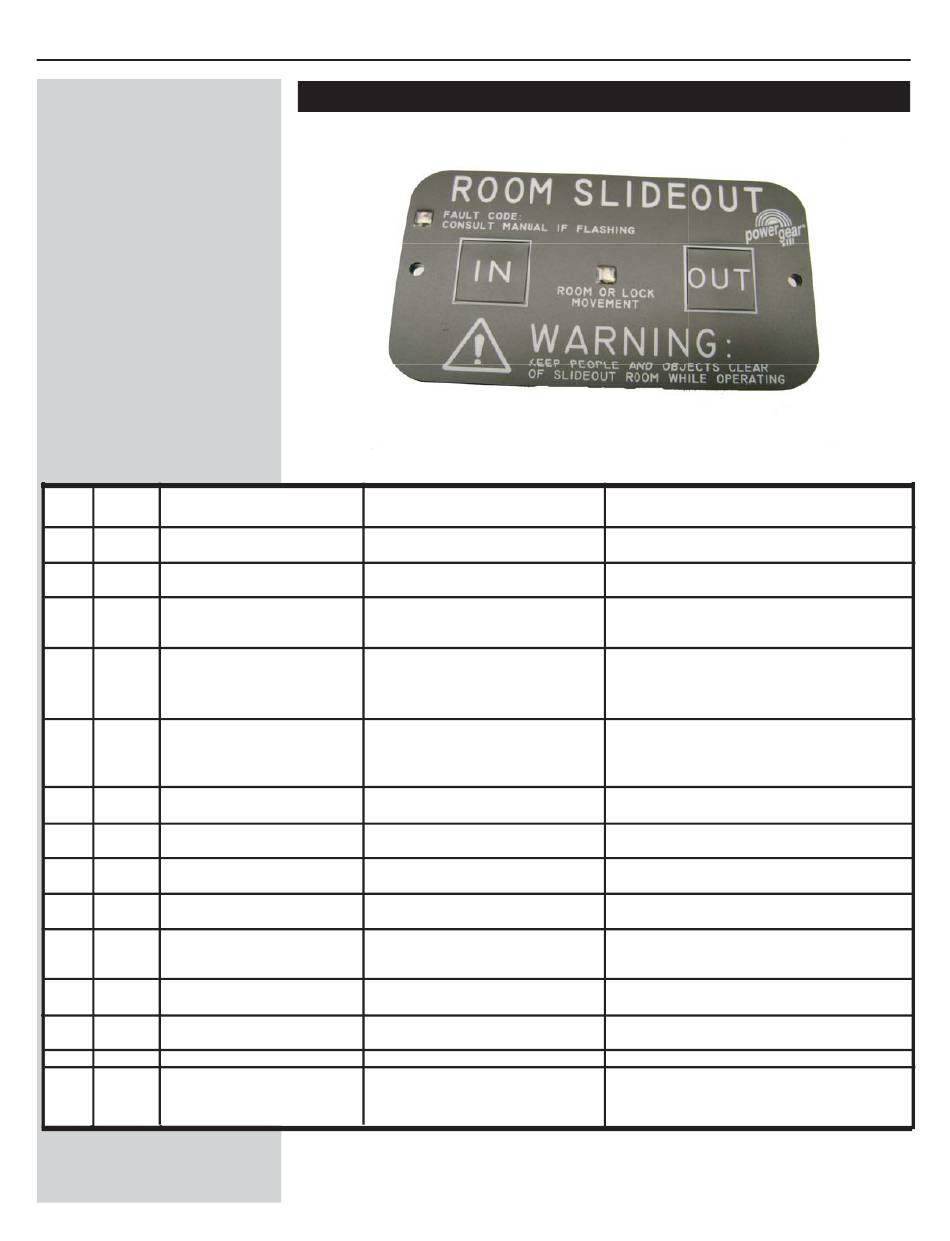

Use this troubleshooting chart if your touchpad looks like the picture above.
Fault Fault Description
Code Type
1 Major Stop Not Programmed
2 Minor Battery Dropout Voltage.
Voltage dropped below 8.0V
3 Minor Low Battery Voltage. Voltage
is below 10.5V when room
movement was initiated
4 Minor Excessive Battery Voltage.
Battery Voltage is above
18.0V when room movement
was initiated.
5 Minor Slideout motor drawing
excessive current
6 Major Slideout Motor Short
7 Major Slideout Motor Open
8 Major No signal on motor sensor
Out 1 (yellow) wire
9 Major No signal on motor sensor
Out 2 (blue) wire
10 Major No signal on motor sensor
wires yellow or blue
11 Minor Room lock motor drawing
excessive current
12 Major Room lock motor short
13 Major Room lock motor open
14 Minor Room lock timeout
Troubleshooting - Touch Pad A
(Usually used with Control Box 1510000122)
Probable Cause
No stop locations has
been set for the control
Bad Battery, bad wire conne-
ction or short in system
Bad wire connection from
battery to control or low
battery
Bad battery
Excessive system/room drag,
obstruction, improper stop
locations or damaged
component
Shorted wiring or motor
Bad connection, motor or
blown fuse.
Bad wire connection or sensor
Bad wire connection or sensor
Bad wire connection or sensor
Excessive drag or obstruction
or damaged component
Shorted wiring or motor
Bad connection or motor
Bad wire connection,
obstruction, broken component
or low voltage
Possible Solutions
Stops need to be reprogrammed by an
authorizied dealer
Repair bad wire connection, short or replace
battery
Repair bad wire connection or replace battery
Replace battery
Remove obstruction, re-adjust room, reset
stops, or replace damaged
component
Inspect motor harness wires and motor for
shorts. Replace shorted component.
Repair bad wire connection, replace motor
or fuse
Repair bad wire connection or replace motor
Repair bad wire connection or replace motor
Repair bad sensor or motor lead connections.
Lastly, replace motor.
Remove obstruction or replace damaged
component
Inspect motor harness wires and motor for
shorts. Replace shorted component
Repair bad connection or replace motor
Remove obstruction, replace battery, repair
bad wire connection of fix broken component
in room lock
CCD-0002533
Page 4
