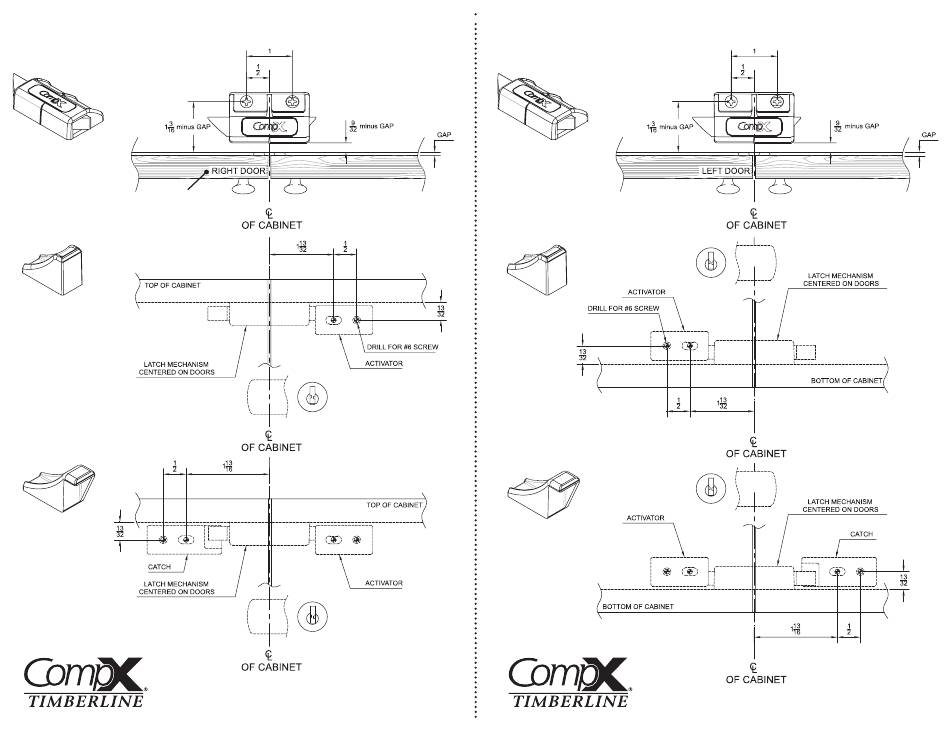

Mounting Instructions: DL-200
(LOCK ON RIGHT / TOP MOUNTED)
STEP 1
install latch
upward view
from below
STEP 2
install activator
STEP 3
install catch
compx.com/instructions
Note: lock shown for
reference but not included.
Locks sold separately.
Note: lock shown for
reference but not included.
Locks sold separately.
Reorder #: INS-200
Copyright 2014 © CompX Security Products
Mounting Instructions: DL-200
(LOCK ON LEFT / BOTTOM MOUNTED)
STEP 1
install latch
Note: lock shown for
reference but not included.
Locks sold separately.
STEP 2
install activator
Note: lock shown for
reference but not included.
Locks sold separately.
STEP 3
install catch
compx.com/instructions
Reorder #: INS-200
Copyright 2014 © CompX Security Products
