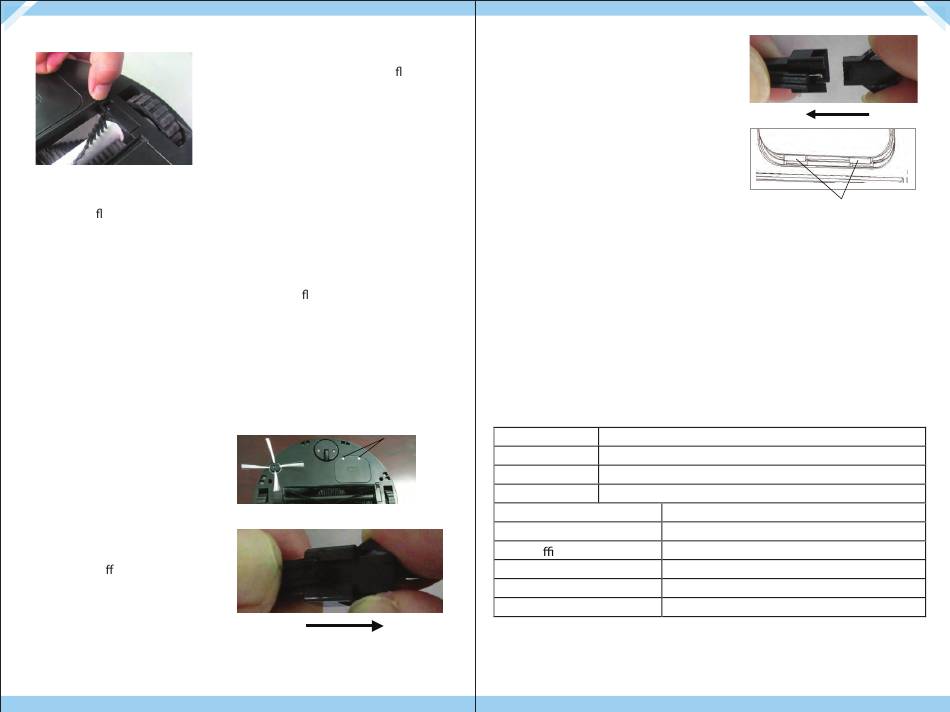

HOW TO REMOVE AND REINSTALL THE MIDDLE BRUSH:
HOW TO CHARGE BATTERY
Note: If the machine shuts down when working, the display shows "!" and the
battery light ashes, that means power shortage and the machine needs to be
recharged.
1. Plug the adapter into the power outlet.
2. Plug the lead in the charging port next to the ON/OFF button.
3. With a sound, three grids electricity dynamically ashing. The screen shows
the charging status. It means the machine is charged normally.
4. When fully charged, it will beep again. The display shows 99% and three
grids electricity fully lit up. Then remove the charger.
5. Plug out the charger and power cord
HOW TO REPLACE BATTERY
1. Open the battery cover and take
out the battery and save the
screws.
2. Remove the connector.
Press the lock on the connector
and pull o .
3
www.PyleUSA.com
Turn the robot upside down on a at
surface, press the middle brush release
catch, take out the brush and wheel.
Clean the brush and the side wheel and
reverse procedure to reinstall.
screw on
battery cover
3. Replace with new battery.
Push down the lock and push the
right part to the left unit until you hear
it clicks into place.
4. Close the battery cover and
secure it with the screws you
saved.
CLEANING AND MAINTENANCE
• Make sure the unit is unplugged before cleaning.
• Do not clean the machine and power supply by immersing in water or other
liquids.
1. Metal parts (power plug or terminal): Wipe them with a clean dry cloth.
2. Plastic parts: Wipe them gently by a clean, soft cloth together with water or
mild detergent.
3. Do not use gasoline, alcohol, rubber water and other strong irritant
cleaning lotion to clean it.
4. Store the robot in a cool and dry place.
PRODUCT SPECIFICATIONS
Power supply Rechargeable battery
Voltage Input:l00-240VAC 50-60Hz 0utput:9VDC,500mA
Battery NIMH 7.2V 2l00mAh
Charging time 4.5hrs
Continuously working time Around l20minutes
Capacity of dustbin 0.3L
Clean e ciency over 98%
Clean width 240mm
Product size Diameter:286mm Width:65mm
Net weight About l.70kg
Buckle
