GreenTec LRS 2001 Handbook

Quadsaw
Hide thumbs Also See for LRS 2001:

Advertisement

Quick Links

Side 1 af 27
LRS 2001 – 2401
Quadsaw
Handbook
13. Edition. Juli. 2015
©Greentec Limited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRS 2001 and is the answer not in the manual?

Questions and answers

Summary of Contents for GreenTec LRS 2001

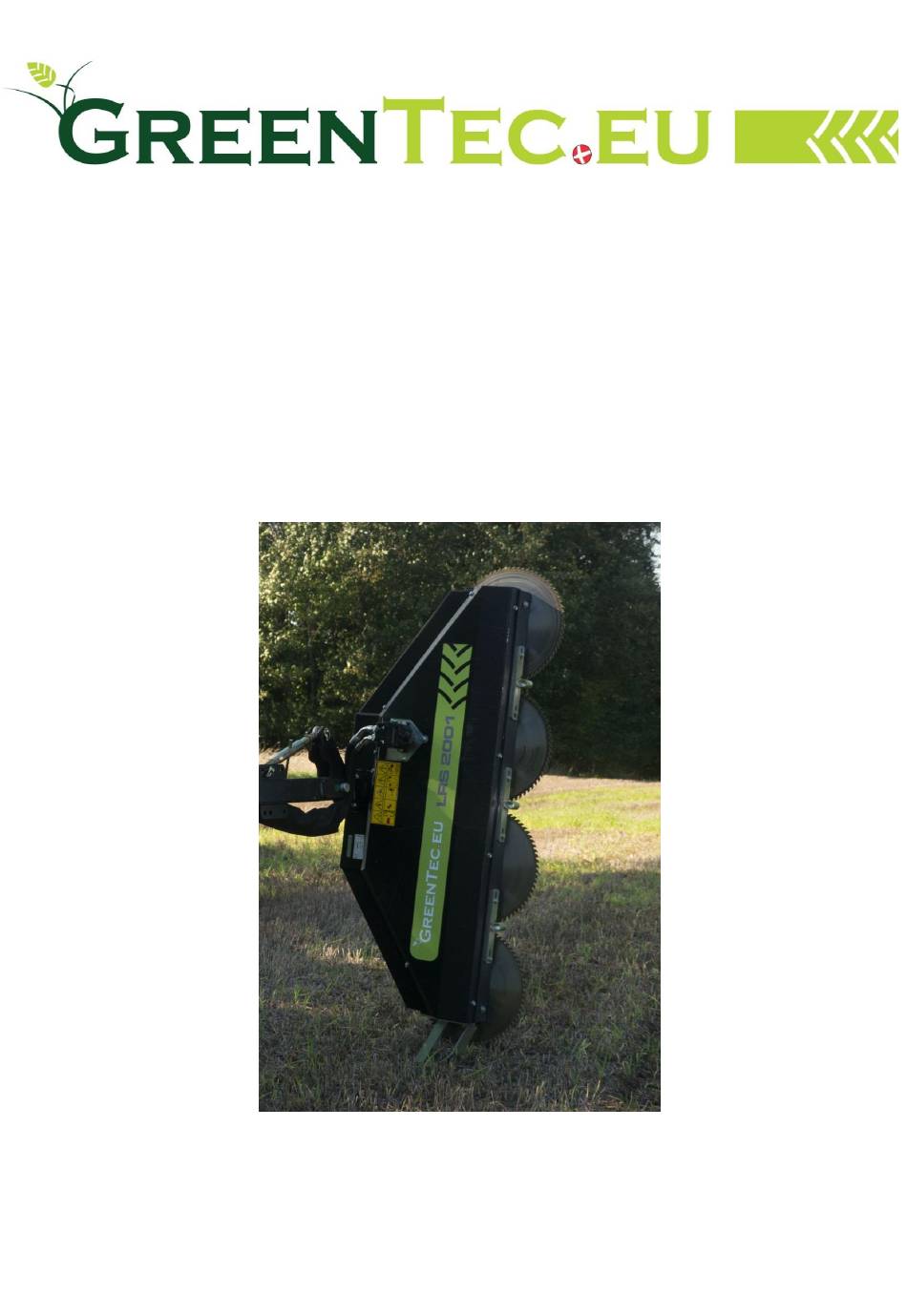

  • Page 1 Side 1 af 27 LRS 2001 – 2401 Quadsaw Handbook 13. Edition. Juli. 2015 ©Greentec Limited...
  • Page 2 Side 2 af 27 This page is intentionally left...
  • Page 3: Important Information

    Side 3 af 27 Important Information GreenTec LRS 2001-2401 HANDBOOK Edition – Juli 2015 Please ensure that this manual is handed to the operator before using the machine for the first time. If the machine is resold the Handbook must be given to the new owner! The information contained in this Handbook is correct at the time of publication.
  • Page 4: Table Of Contents

    Side 4 af 27 IMPORTANT INFORMATION ............................3 INTRODUCTION ................................5 IMPORTANT .................................. 6 GENERAL INFORMATION ............................... 7 CE DECLARATION OF CONFORMITY ..........................8 VEHICLE / TRACTOR PREPARATION ..........................9 ................................... 9 EHICLE ALLAST ..................................9 RONT WEIGHTS ..................................9 EAR WEIGHTS .............................
  • Page 5: Introduction

    You are welcome to visit our website www.greentec.eu - where the login via the dealer's access gives you the latest updates on instructional and part books on our entire product range. The password for dealer log-in: PUBLISHER We hope, you will be pleased with your new Greentec machine.
  • Page 6: Important

    Please, fill out the following information. It is practical information that is useable when ordering spare parts. …………………………………………………… Serielnumber: …………………………………………………… Delivery date: …………………………………………………… Dealer name: …………………………………………………… Address: …………………………………………………… …………………………………………………… Tel. / Fax No.: Greentec A/S Merkurvej 25 Dk-6000 Kolding Tel: +45 7555 3644 Fax: +45 7555 4243 E-mail: greentec@greentec.eu Http: www.greentec.eu...
  • Page 7: General Information

    General Information Read this manual before fitting or operating the machine or accessory. Whenever any doubt exists contact your local dealer or the GreenTec Service Department for assistance. Only use ‘Genuine GreenTec Parts’ on GreenTec machinery and equipment. DEFINITIONS: The following definitions apply throughout this manual;...
  • Page 8: Ce Declaration Of Conformity

    Adapted EEC directive 2006/42/EC, 89/392/EEC & 98/37/EC We, GreenTec A/S, Merkurvej 25, 6000 Kolding, hereby declare that in terms of its design, method of construction and our execution thereof, the item of machinery described below complies with the basic health and safety regulations of the respective EU Directives. The Machinery Directive is sup- ported by the following harmonized standards: ...
  • Page 9: Vehicle / Tractor Preparation

    Side 9 af 27 VEHICLE / TRACTOR PREPARATION We recommend vehicles are fitted with cabs using ‘safety glass’ windows and protective guarding when used with our machines. Fit Operator Guard (See drawing) using the hooks provided. Shape the mesh to cover all vulnerable areas.
  • Page 10: Factors That Affect Stability

    Side 10 af 27 Factors that affect stability  Centre of gravity of the tractor/machine combination.  Geometric conditions, e.g. position of the cutting head and ballast.  Weight, track width and wheelbase of the tractor.  Acceleration, braking, turning and the relative position of the cutting head during these operations.
  • Page 11: Mounting The Quadsaw

    Also separate, the Return hose must be led directly to the oil reservoir (max 15 bar)  Check for oil leak.  First time the machine is used. Measure the blade rpm. LRS 2001 and 2401 (3000 – 3200 rpm). Holding this speed is important for the best optimum performance.
  • Page 12: Attachment To Armsystem Or Mounting Carrige

    Attachment to Armsystem or Mounting Carrige Can be attached to Arm-system with a clamp bracket. Nuts should be torqued 200 Nm. Spearhead Twiga & GreenTec HXF 2802, 3300 & 3302 are all specially designed to carry the Quad- saw. The HXF is a mounting carriage designed for attaching Quadsaws to Tractor loaders and Tele- handlers.
  • Page 13: Hydraulik Diagram

    Operation / Introduction The Quadsaw is used for cutting branches and trees up to a max. diameter of (LRS 2001 120 mm). (LRS 2401 160 mm). Branches thicker than (LRS 2001 80 mm) (LRS 2401 120 mm) must be cut one of the time.
  • Page 14 Side 14 af 27 Great care must taken when attempting to clear debris from the blade and/or belt area of the machine; sharp components and numerous pinch risk points exist in these locations. Safety gloves and safety eyewear should be worn and wherever possible the use a suitable tool should be used to remove any debris to ensure hands and fingers are kept clear of any risk areas.
  • Page 15: Driving Recommendations

    Side 15 af 27 Driving recommendations It is recommended to travel at a slow forward speed when starting work in order to obtain and keep the recommended rpm of the blades. Adjust the angle of the saw to approx 90 degrees in relation to the branches.
  • Page 16: Maintenance

     Dismount the belt guard to clean the housing.  Inspect and if necessary adjust the belts. (See belt diagram here or under belt guard).  GreenTec A/S recommend changing all sawblade-axles after 1500 hours of work, because of the possibility of metal fatigue.
  • Page 17: Hydraulik Diagram

    Side 17 af 27 Hydraulik diagram Fig 1. Standard Fig. 2 Med mængdedeler Fig. 1 Fig. 2 Oil Supply Check oil level in the tank each day prior to starting work - it is good practice to constantly keep an eye on the sight glass level as a ruptured pipeline can empty a system within minutes;...
  • Page 18: Regular Maintenance Tasks

     Check valve block, hoses and fittings for signs of leaks – retighten or replace seals if required.  Bolts and bushes should be greased and retightened. Regrinding If sawblades are send to regrinding, GreenTec offers a wooden box made for that purpose. can con- tain four sawblades.
  • Page 19: Tensioning The Belts

    It is utmost importance that the belts are correctly mounted and tightened. When new belts are mounted they must be tensioned to (LRS 2001 700 Nm) (LRS 2401 1100 Nm) for the short and (LRS 2001 900 Nm) (LRS 2401 1300 Nm) for the long belts.
  • Page 20: Technical Data And Description Of Working Tool

    Each shaft is driven by vee belts, and the whole unit is powered by a hydraulic motor. Branch deflectors are placed between the blades. The Quadsaw is supplied with a special bracket enabling mounting on various vehicles / carriers. Model Lrs 2001 Lrs 2401 Working width 2000 mm 2380 mm 3000 –...
  • Page 21: Safety

    Side 21 af 27 Safety This machine has the potential to be extremely dangerous - in the wrong hands it can kill or maim; it is therefore imperative that both owner and operator of the machine reads and understands the following section to ensure they are fully aware of the dangers that do, or may exist, and their responsibilities surrounding the use and operation of the machine.
  • Page 22: Before Using This Machine

    Side 22 af 27 Before using this machine Always:  Ensure the operator has read this handbook and has been trained to use the machine.  Ensure that the tractor meets the minimum weight recommendations of the machine manufac- turer and that ballast is used if necessary. ...
  • Page 23: Never

    Side 23 af 27 Never:  Operate the machine until you have read and understood the relevant Handbook and are famil- iar with the controls.  Operate the machine with other people present, as it is possible for debris to be thrown from the saw blades in all directions.
  • Page 24: Additional Safety Advice

    No advice given here can replace ‘good common sense’ and ‘total awareness’ at all times, but will go a long way towards the safe use of your GreenTec machine.
  • Page 25: Safety Stickers

    Side 25 af 27 Safety Stickers Warning Warning Avoid fluid escaping un- Stop engine and remove pressure. Consult before performing technical manual for ser- maintenance or repair work. vice procedures Warning Warning Danger – flying objects. Beware of overhead elec- Keep safe distance from trical power lines.
  • Page 26: Storage

    Remember: regular maintenance will greatly increase the life of the machine. Noise measuring Noise measuring has been made on the machine during normal working conditions at GreenTec A/S, Denmark, with a Delta OHM Noise measurer, type HD 8701.  The energy A-weighted Sound pressure is lower than: 90 dB (A).
  • Page 27: Warnings, Ban And Directions

    Side 27 af 27 Warnings, ban and directions Never attempt any maintenance or adjustment without first disengaging the pto/hydraulicpump. Only authorised personal must do maintenance work on the equipment. Read this manual carefully before using the machine. Disassemble Machine disengaged from all connections. To ensure the most environmentally friendly removal, the machine must be disassembled and the parts separated as following: Category...

This manual is also suitable for:

Lrs 2401
