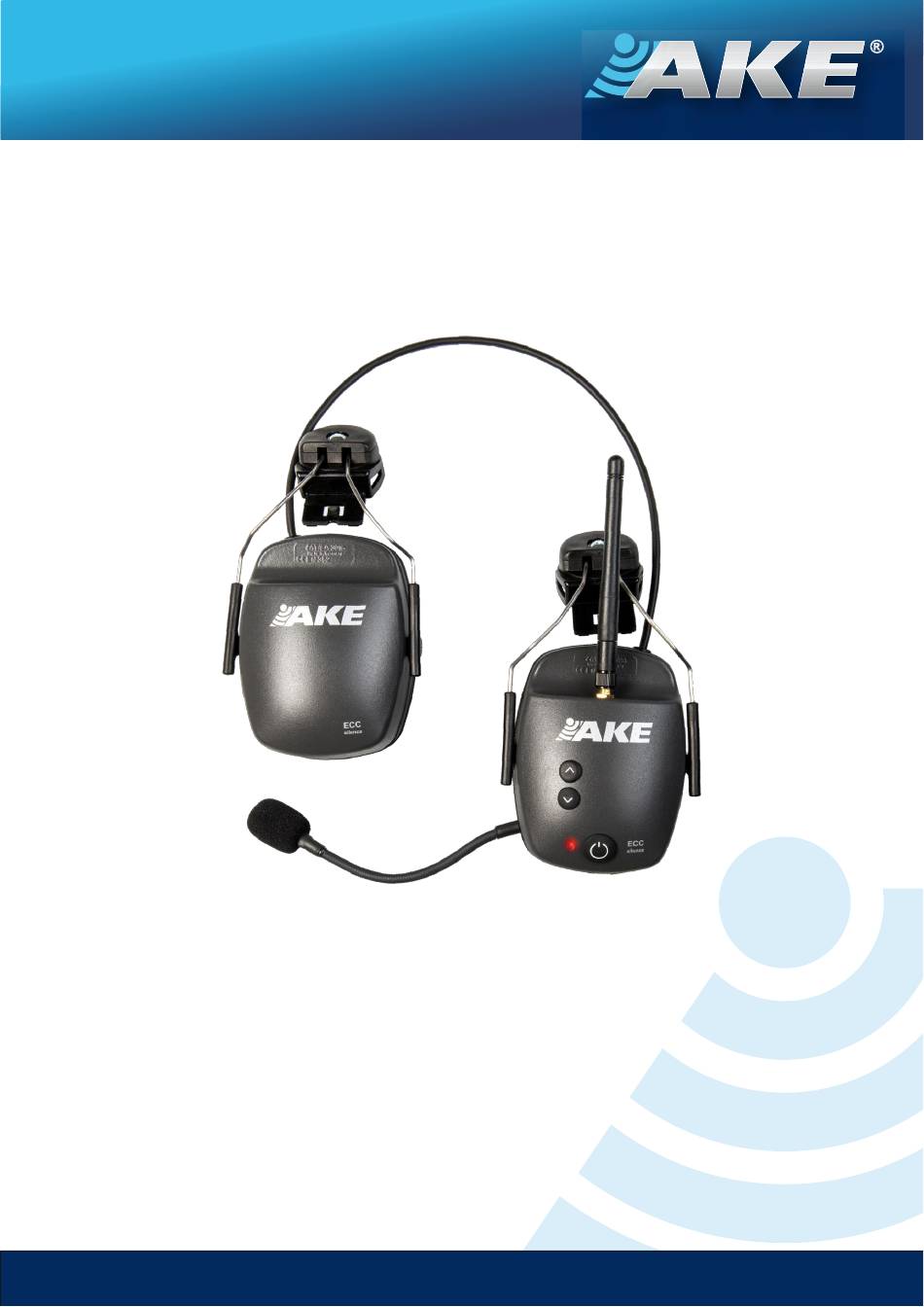

- Page 1 M O B I L E C O M M U N I C A T I O N User Manual ECC-basic and ECC-silence hands free system for ear protection caps , as well as ECC hand-held www.ake-elektronik.de AKE Elektronik GmbH & Co. KG...
- Page 2 The necessary handles are not complicated. If you still have questions, please contact your dealer or directly us. We are happy to advise you. Your AKE-team...
-
Page 3: Table Of Contents
Inhalt Illustration ......................4 Application examples .................... 5 Commissioning of the full-duplex team hands free connection ......5 The optimal noise cancellation ................6 Shading and range ....................6 Hands-free mode with more than two systems in a team ........7 ®... -
Page 4: Illustration
Illustration Team leader with repeater function Conference participants Swap participants Fig .: Team of an ECC hands-free system in ear protection, here ECC-silence with headband. Noise compensating close talk microphone (Signal microphone) Marking for speech direction Flexible microphone boom ... -
Page 5: Application Examples
B Two-way-radio and audio player Smartphone Commissioning of the full-duplex team hands free connection The ECC hands-free systems (Easy Connect Communication) developed by AKE are extremely easy to connect wirelessly. Once paired devices connect automatically. Please pair new devices once as follows: In two easy steps to the destination: (For more than 4 team members, see details on page 8.) -
Page 6: The Optimal Noise Cancellation
(the HML or SNR value) must also be ensured with built-in electronics. The ECC hands-free system from AKE offers a number of measures in order not to exceed the permissible signal level of 85 dB (A) at the ear. -
Page 7: Hands-Free Mode With More Than Two Systems In A Team
Adjusting the range by selecting the antenna The following comparison values apply to the approximate range depending on the type Art.-No., Type, Length, Range of antenna used compared to the standard antenna ( Art.-No. Type Length Range app. 14129 Stub antenna, for close range 30 mm 50 % 14141... -
Page 8: Commissioning Of The Bluetooth ® -Interface
For menu-driven phones, you'll typically find the option "Search for nearby Bluetooth devices". If you select this function then the AKE ECC system should be displayed for pairing. If you are asked for a password after confirming, enter 0000. For instructions on... -
Page 9: Use With Smartphone, Etc
After successful pairing, the alternating flashing is ended. Now switch off your ECC unit. The next time you switch on all paired devices are automatically connected. Note that the phone must be set to "auto-connect". Do not pair the same phone with two ECC systems in the team, otherwise operating problems are possible! Use with smartphone, etc. -
Page 10: Care Of The Device And Charging The Battery
If the battery has not been charged for a long time, it is possible that it is deeply dis- charged. The AKE ECC electronics tries deeply discharged batteries again to regenerate, the load control then will blink until the battery is ready to charge again. If the battery cannot be recharged, it must be replaced. -
Page 11: System Settings Using The Buttons
Android phone. The Over The Air Control App Download the latest AKE Over the Air Control App from Google-Store or from the homepage www.ake-elektronik.de to your Android phone and install it. Connect the ECC to your mobile phone via Bluetooth ®... - Page 12 In the first field, various device information such as device name, software version number, Bluetooth address, battery charge level, battery mode, receive field strength and more can be queried. Deactivates the signal microphone , if desired. Ambient noise via the signal path is then 100% blocked.
-
Page 13: Possible Malfuctions And Her Cause. Software Reset
Possible malfuctions and her cause. software reset Very slow pairing or no pairing possible: In the near of strong W-LAN hotspots, the usable frequencies may be overloaded; pair the devices outside these ranges. Device out of range, connection lost, LEDs flash 2 x red: If the connection is not restored automatically, reduce the distance within ¼... -
Page 14: Technical Specifications
System: Version: 4+ Profiles: HFP, A2DP, AVRCP, BLE Team communication: Proprietary AKE ECC hands free system Swap-Mode (only ECC-silence): pair up to 8 systems and easily change participants in team mode Transmission power: Class 1 (100 mW), Power Saving Function Class 2 (2,5 mW) -
Page 15: Warranty And Other
Defective wearing parts will be exchanged upon request for a fee. Please send devices for inspection or repair only to the following address: AKE-Service, Willi-Bleicher-Str.6, D-73230 Kirchheim... - Page 16 01.19 REL 4.28...
