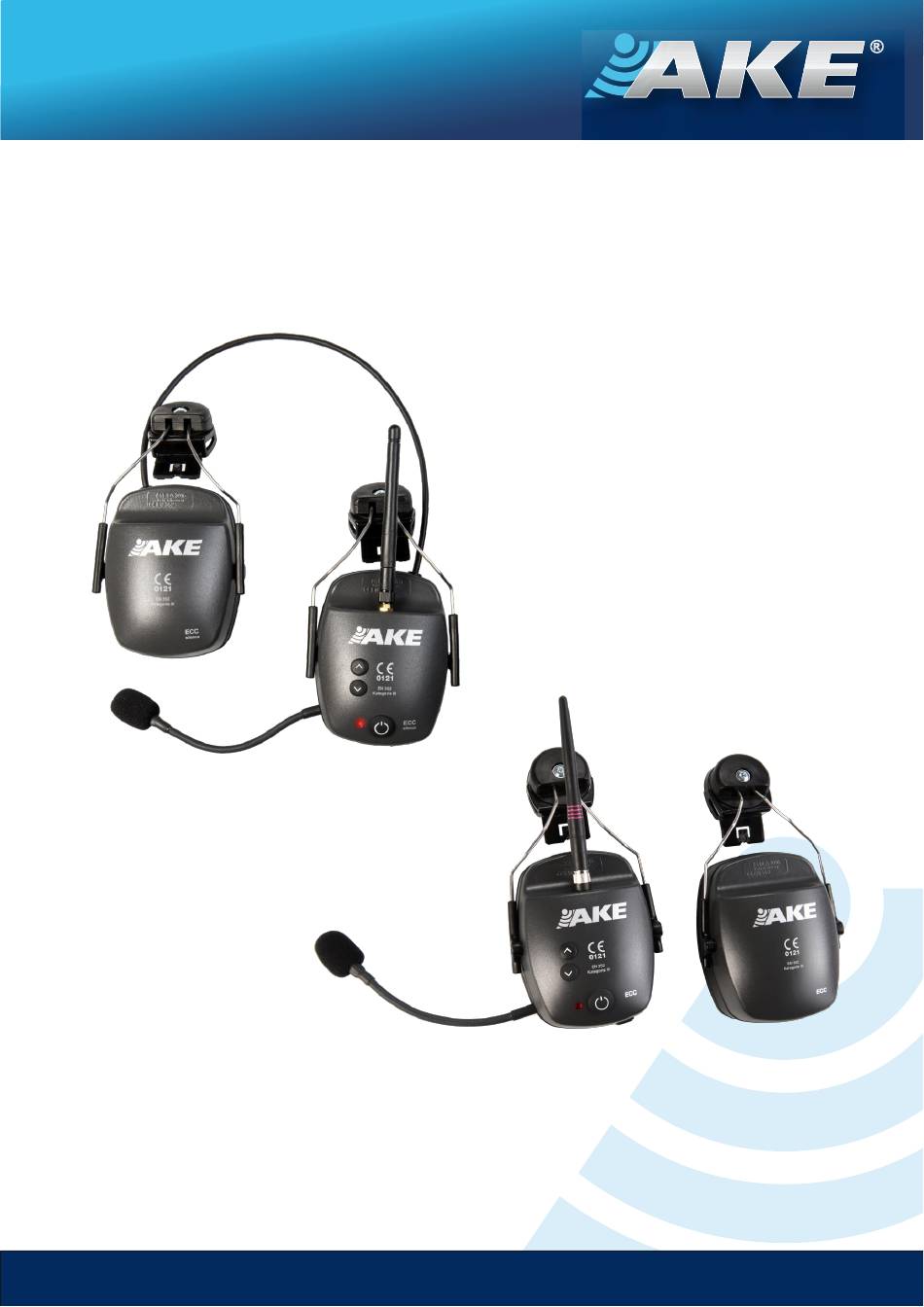

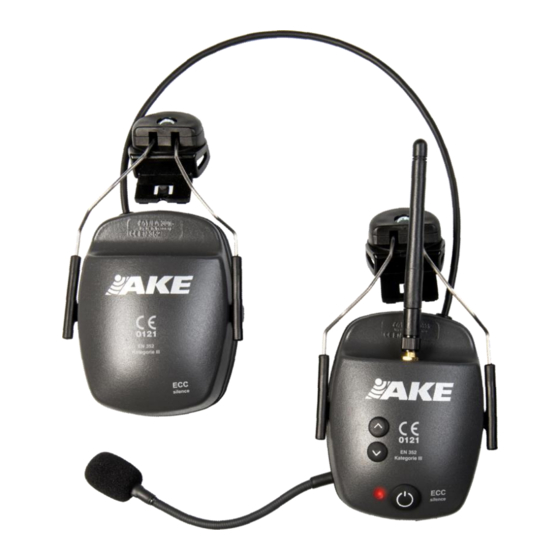

- Page 1 M O B I L E C O M M U N I C A T I O N User Manual Ear protection caps with ECC basic and ECC silence hands free system Now with new PPE approval according to Category III www.ake-elektronik.de AKE Elektronik GmbH & Co. KG info@ake-elektronik.de...
- Page 2 The necessary handles are not complicated. If you still have questions, please contact your dealer or directly us. We are happy to advise you. Your AKE-team...
-
Page 3: Table Of Contents
Technical specifications..................13 Important notes for your safety ................14 User information, hints and warnings for AKE capsule hearing protection with built-in ECC basic and ECC silence hands-free system ........15 CE marking, test institute and declaration of conformity ........17 Warranty and service .................. -
Page 4: Illustration
Illustration ECC basic ECC silence 1 Team leader with repeater function 2-4 Conference participants 5-8 Swap participants Fig .: Team of an ECC hands-free system in ear protection, here ECC silence. Noise compensating close talk microphone (Signal microphone) ... -
Page 5: Application Examples
B Two-way-radio Smartphone Commissioning of the full-duplex team hands free connection The ECC hands-free systems (Easy Connect Communication) developed by AKE are extremely easy to connect wirelessly. Once paired devices connect automatically. Please pair new devices once as follows: In two easy steps to the destination: (For more than 4 team members, see details on page 8.) -
Page 6: The Optimal Noise Cancellation
(the HML or SNR value) must also be ensured with built-in electronics. The ECC hands-free system from AKE offers a number of measures in order not to exceed the permissible signal level of 85 dB (A) at the ear. -
Page 7: Hands-Free Mode With More Than Two Systems In A Team
Special antenna, for stationary use 370 mm >200 % Increased range via the repeater function (ECC basic, silence and hand-held) The ECC-system in which the team leader has been activated can be used as a repeater to increase the range (up to factor 2) in connection with two other devices. -
Page 8: Commissioning Of The Bluetooth ® -Interface
For menu-driven phones, you'll typically find the option "Search for nearby Bluetooth devices". If you select this function then the AKE ECC system should be displayed for pairing. If you are asked for a password after confirming, enter 0000. For instructions on... -
Page 9: Use With Smartphone, Etc
After successful pairing, the alternating flashing is ended. Now switch off your ECC unit. The next time you switch on all paired devices are automatically connected. Note that the phone must be set to "auto-connect". Do not pair the same phone with two ECC systems in the team, otherwise operating problems are possible! Use with smartphone, etc. -
Page 10: Care Of The Device And Charging The Battery
If the battery has not been charged for a long time, it is possible that it is deeply dis- charged. The AKE ECC electronics tries deeply discharged batteries again to regenerate, the load control then will blink until the battery is ready to charge again. If the battery cannot be recharged, it must be replaced. -
Page 11: System Settings Using The Buttons
Android phone. The Over The Air Control App Download the latest AKE Over the Air Control App from Google-Store or from the homepage www.ake-elektronik.de to your Android phone and install it. Connect the ECC to your mobile phone via Bluetooth ®... - Page 12 In the first field, various device information such as device name, software version number, Bluetooth address, battery charge level, battery mode, receive field strength and more can be queried. Deactivates the signal microphone , if desired. Ambient noise via the signal path is then blocked.
-
Page 13: Possible Malfuctions And Her Cause. Software Reset
System: Version: 4+ Profiles: HFP, AVRCP, BLE Team communication: Proprietary AKE ECC hands free system Swap-Mode (only ECC silence): pair up to 8 systems and easily change participants in team mode Transmission power: Class 1 (100 mW), Power Saving Function Class 2 (2,5 mW) -
Page 14: Important Notes For Your Safety
In case of violent destruction, the built-in battery may catch fire. We assume no responsibility for incorrect settings, malfunctions or improper use. Only use accessories approved by AKE. Observe the PPE regulations... -
Page 15: User Information, Hints And Warnings For Ake Capsule Hearing Protection With Built-In Ecc Basic And Ecc Silence Hands-Free System
Number of the standard: EN 352-3:2002, PSA-Verordnung (EU) 2016/425 b) Trademark: AKE Elektronik GmbH & Co.KG c) Model name: Hearing protection with ECC basic and ECC silence hands-free system e) Type of bracket and sealing pads: wire hanger made of stainless elastic steel, sealing... - Page 16 Method of replacing the sealing pad: snap-in fastening, pull off old sealing pad and snap in new one. Check tightness after replacement t) Average mass of the ear muffs with electronics: ECC basic 0,356 Kg, ECC silence 0,376 Kg Level-dependent sound insulation according to PPE regulation a) Number of the standard: prEN 352-4: 2017 b) Model name: Hearing protection with ECC silence hands-free system.
-
Page 17: Ce Marking, Test Institute And Declaration Of Conformity
Specification of the maximum duration of speech transmission at quiet: 7:38 h CE marking, test institute and declaration of conformity Category III PPE approval: ECC basic and ECC silence are certified for risks that can lead to very serious consequences such as death or irreversible damage to health. -
Page 18: References To The Recycling After The Electrical Appliance Law
Defective wearing parts will be exchanged upon request for a fee. Please send devices for inspection or repair only to the following address: AKE-Premium- Service, Willi-Bleicher-Str.6, D-73230 Kirchheim For distribution outside the EU, please contact the respective importer. -
Page 19: Notes
Notes... - Page 20 10.20 4.39.4...
