    Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations.

  • Page 3: Safety And Operating Instructions

    Safety instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE.

  • Page 4: Safety Instructions

    CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN TO A SORTED WASTE COLLECTION CENTRE. IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. THEN CALL IN A QUALIFIED TECHNICIAN.
  • Page 5 CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK. DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP BASKET.

  • Page 6: Installation Instructions

    2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.

  • Page 7: Drain Connection

    Installation instructions The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply.

  • Page 8: Description Of The Controls

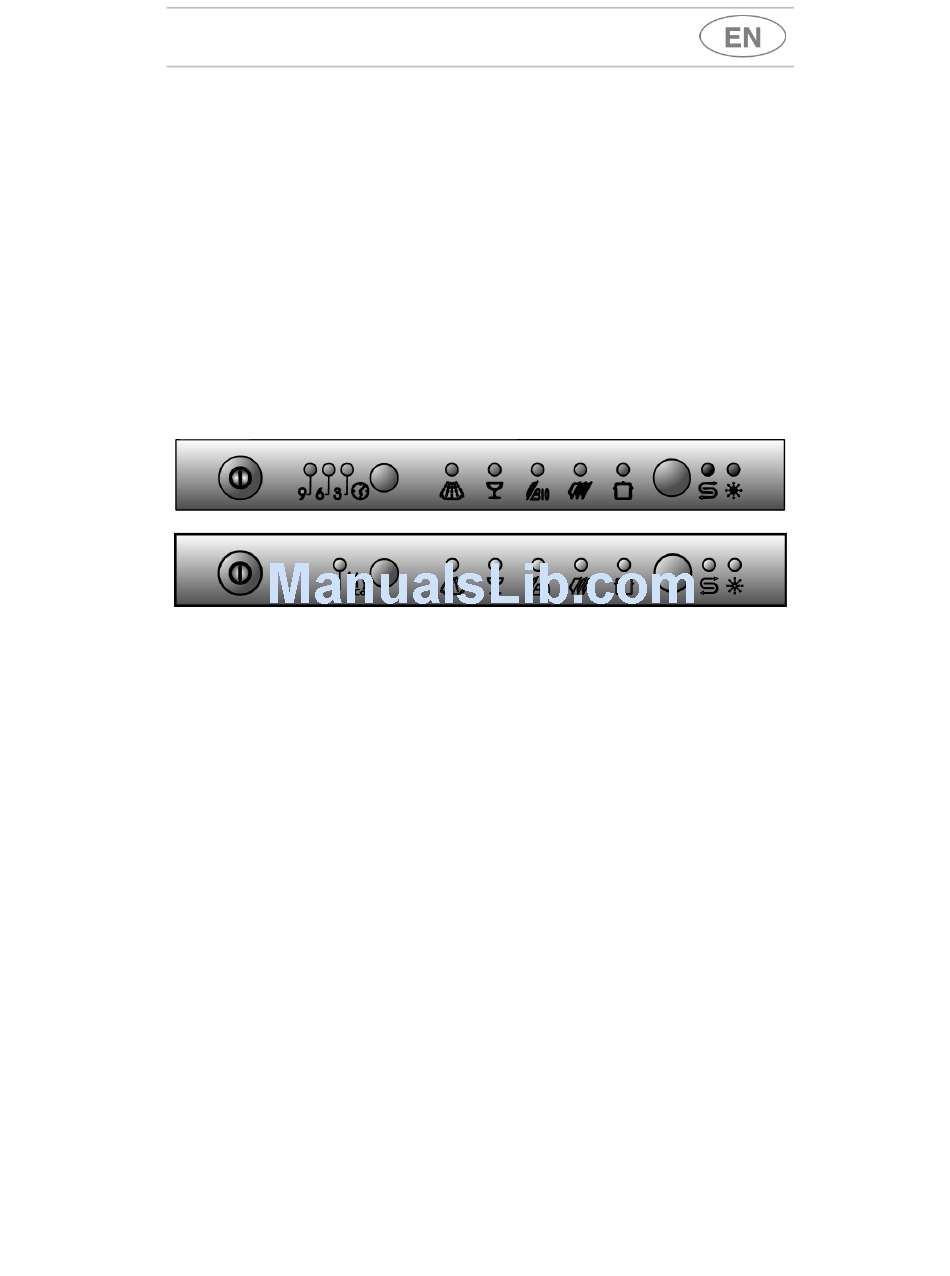

    User instructions 3. Description of the controls 3.1 Upper panel All the dishwasher controls are grouped on the upper panel. Version equipped with DELAYED START function Version equipped with ECO DRY function ON/OFF button Pressing this button energises the appliance.
  • Page 9 User instructions SETTING THE WASHING PROGRAM AND SWITCHING ON To select the most suitable program for the dishes to be washed refer to the table below, which indicates the most appropriate program according to dish type and degree of soiling. After using the table to identify the most appropriate washing program: •...

  • Page 10: Table For Certification Bodies

    User instructions The washing cycle will not take place if the dishwasher door is left open or not properly closed. TABLE FOR CERTIFICATION BODIES Reference standard Reference program Load Type of detergent Amount of detergent Rinse aid setting Depending on the model 3/4 or 4/6 (*) For the relevant models: the ECO DRY function (8) must be activated.

  • Page 11: Changing The Program

    DELAYED START The start of the program can be delayed by 3, 6 or 9 hours. This allows you to set the dishwasher to work at the times of day most convenient to you. After setting the program of your choice, press the DELAYED START button (6) to select the delay you require.

  • Page 12: End Of Cycle

    • Do not carry out any preliminary rinsing. • If available, connect the dishwasher to a hot water supply up to 60°C. • When possible, skip the drying cycle by leaving the door open when the washing cycle is complete; the air and the residual heat will dry the dishes perfectly.

  • Page 13: Operating Instructions

    Before replacing the cap, remove any salt residues from around the opening. • When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container. •...

  • Page 14: Adjusting The Water Softening System

    ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an device for the user to adjust the water softening system according to the hardness of the water supply.

  • Page 15: Using The Rinse Aid And Detergent Dispensers

    User instructions WATER HARDNESS TABLE WATER HARDNESS German Degrees (°dH) 0 - 4 5 - 9 10 - 17 18 - 26 27 - 35 36 - 47 Contact your local water board for information on the hardness of your water supply.

  • Page 16: Adding The Rinse Aid

    ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.

  • Page 17: Adding The Detergent

    • Do not use detergents formulated for washing dishes by hand, because they produce a great deal of foam and may negatively affect the operation of the dishwasher. • Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.
  • Page 18 - not enough detergent released during the cycle, with poor washing results; - the detergent forms a solid block in the distributor and is released during the final rinse cycle. The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher. more easily...

  • Page 19: General Warnings And Recommendations

    User instructions 4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.
  • Page 20 • Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.

  • Page 21: Loading The Lower Basket

    User instructions 4.4 Using the baskets The dishwasher has a capacity of 10 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.

  • Page 22: Cutlery Basket

    User instructions CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm.

  • Page 23: Loading The Upper Basket

    User instructions LOADING THE UPPER BASKET Load plates facing forward; cups, bowls etc. must always be facing downwards. The left-hand side of the basket can be loaded with two layers of cups and glasses. On the right plates and saucers can be slotted verticalli into the forks.

  • Page 24: Cleaning And Maintenance

    5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces.

  • Page 25: Cleaning The Filter Unit

    User instructions CLEANING THE SPRAY ARM, TRAVELLING VERSION To remove the TRAVELLING spray arm, take hold of it and raise it to release both the spray arm and the pipe from the tank, then detach the spray arm from the pipe. Wash both the pipe and the spray arm in running water, re-attach the spray arm to the pipe and return the assembly to the seat provided in the tank.
  • Page 26 The filters should be cleaned under running water using a stiff brush. • It is essential to thoroughly clean the filters according to the above instructions: the dishwasher cannot function if the filters are clogged. • Carefully replace the filters in their seats, to avoid damaging the wash pump.
  • Page 27 User instructions If the dishes are not being cleaned properly, check that: • the correct amount of detergent has been added; • there is regenerating salt inside the special container; • the dishes are being loaded correctly; • the selected program is suitable for the dish types and their degree of soiling;...

  • Page 28: Troubleshooting

    User instructions 6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT The dishwasher’s anti-flooding system has been activated (only for models equipped with the "TOTAL ACQUASTOP”...
  • Page 29 User instructions TECHNICAL DATA Width Depth measured flush with the outer edge of the control panel Height Capacity Water supply pressure Electrical characteristics 447 ÷ 449 mm 570 mm from 820 mm to 870 mm 10 Standard place settings min. 50 – max. 900 KPa (min. 0.5 – max. 9 bar) See rating plate...
