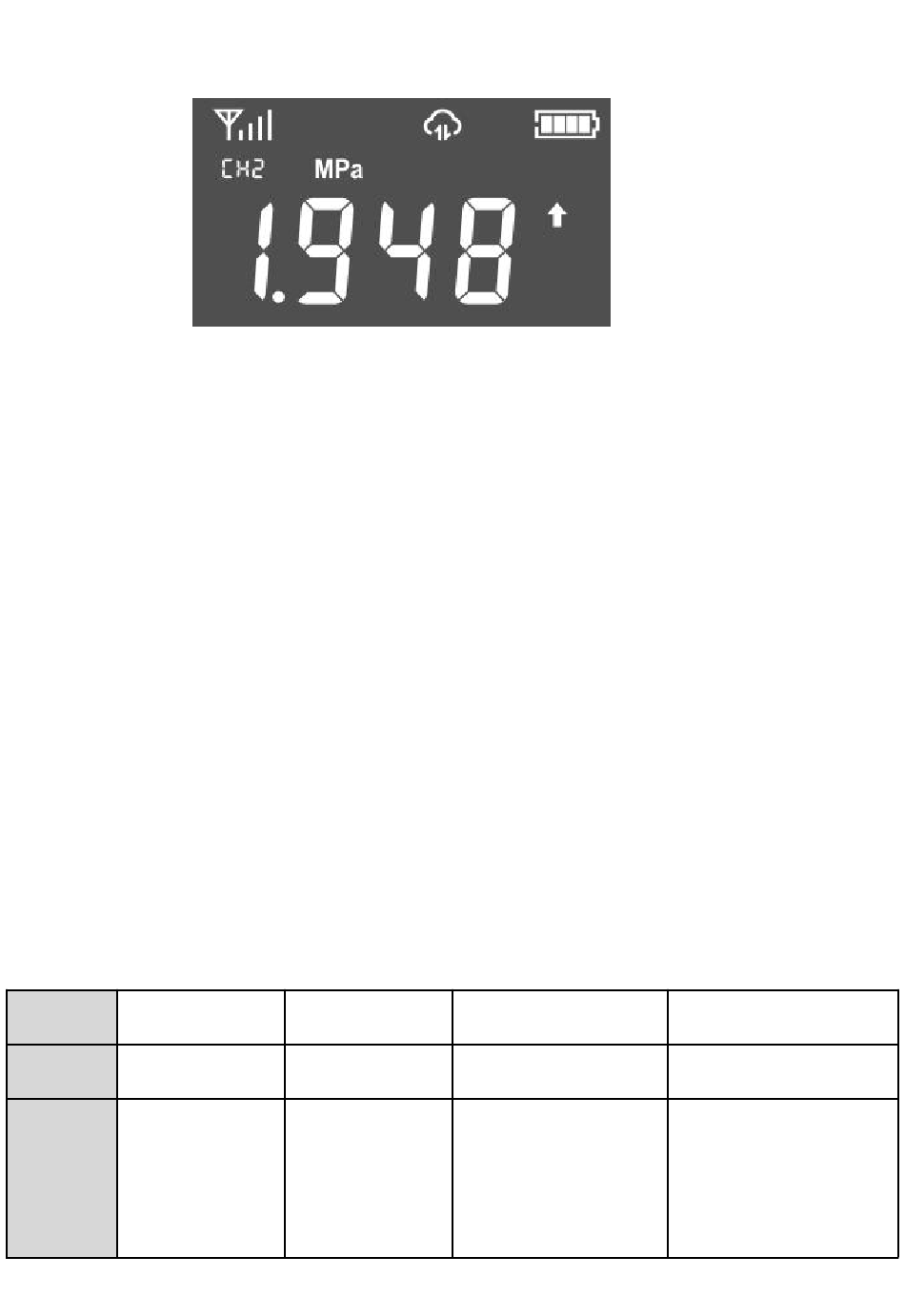

1.6 Display

1.7 Key instruction

Keys need to use the matching magnetic bar to operate, when the
magnetic bar close to or gently click the magnetic control key, Earth1006
Remote Monitoring Terminal will come into the key operation.
Off state (key induces 1s and the screen is not lit), key induces 8s, the
device boot;
Boot state, the key induces 1s, the screen lit;
When the screen is bright, the key induces 1s flip;
When the screen is bright, the key induces 8s off.

1.8 Interface

Type
AI
Qty.
3
0V~5V DC/
Signal
4mA~20mA
DC
Table 1.1 Device interface
DI/PI
2
Switch/pulse
5
┄ Device status
┄ Channel NO./unit
┄ Channel value/alarm
RS485
1
ModBus RTU
Camera
1
Pictures only, video
transmission not
available
