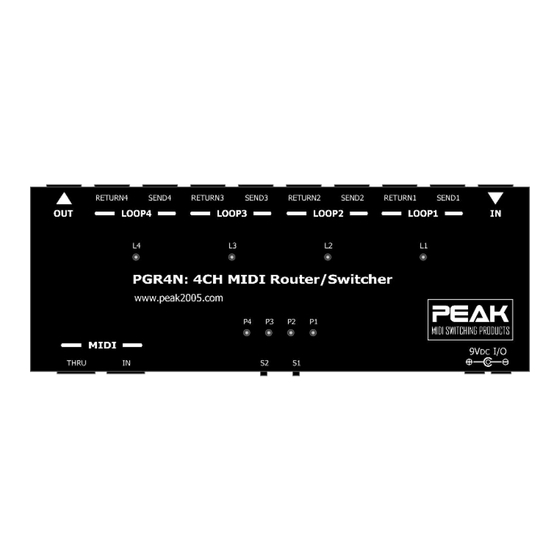

Peak PGR4N Manual

4ch midi router / switcher
Hide thumbs Also See for PGR4N:

Advertisement

Quick Links

Download this manual
PEAK PGR4N-Guitar Router / Switcher

Specifications:

PEAK GPR4N Guitar Router/Switcher provides 4 mono audio loops for 4 stomp boxes.
•
Up to 128 memory presets save to EEPROM memory.
•
Each preset can be programmed sub-preset in Momentary mode. (to toggle the audio loop status when
•
receives the same MIDI Program Change messages (PC))
High-quality made in Japan relays for switching loops in series.
•
MIDI THRU connector for passing the MIDI IN messages to other MIDI devices.
•
Supports MIDI Program Change messages (PC) and MIDI Control Change messages (CC) from MIDI
•
channel#1 to channel#16.
Phantom power over Pin6 and Pin7 of MIDI IN connector.
•
Powered by 250mA, 9 Volt DC Adapter (not included) with a 5.5mm/2.1mm barrel connector.
•
Includes a high quality voltage regulator circuit for noise/hum reduction.
•
Double power DC connector for passing the input voltage to other devices.
•
Housed in SPCC restless metal chassis formed by a laser cutting process.
•
Finish: Powder coated in matt black by electric beam air-brush.
•
Dimensions: approx. 84 mm x 230 mm. x 40 mm.
•
Weight: approx. 1,200g.
•
Rev 3.0.0 (Dec.10, 2011) www.peak2005com

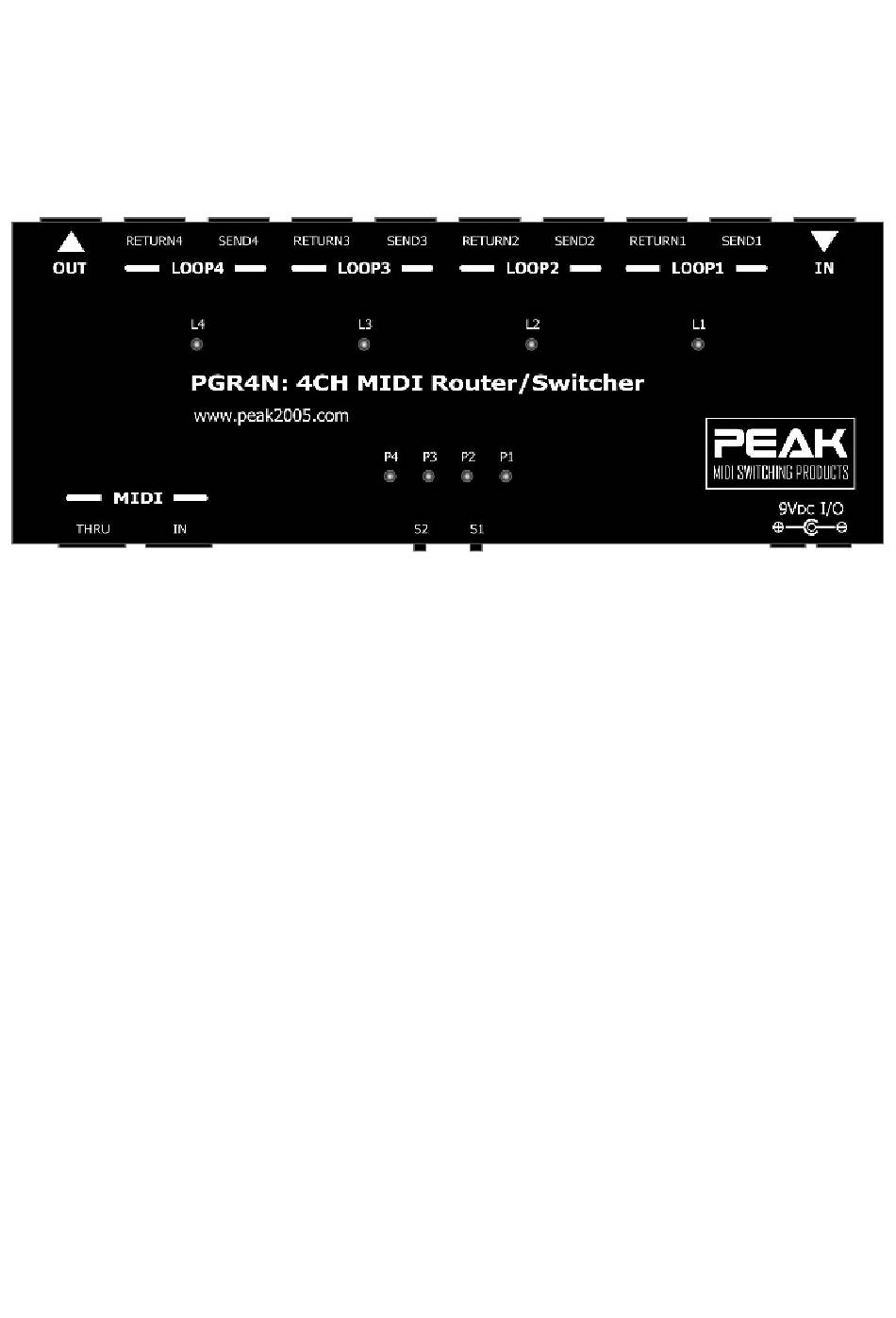

PEAK PGR4N
4CH MIDI Router / Switcher
Rev 3.0.0 (NOV.27.2011)
www.peak2005.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PGR4N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Peak PGR4N

Summary of Contents for Peak PGR4N

  • Page 1: Specifications

    4CH MIDI Router / Switcher Rev 3.0.0 (NOV.27.2011) www.peak2005.com Specifications: PEAK GPR4N Guitar Router/Switcher provides 4 mono audio loops for 4 stomp boxes. • Up to 128 memory presets save to EEPROM memory. • Each preset can be programmed sub-preset in Momentary mode. (to toggle the audio loop status when •...
  • Page 2 These switches are used to configure the PGR4N.(see details in the next section) (3) MIDI IN-THRU: * MIDI IN: This is a 7-pin DIN jack for MIDI cables. It allows the PGR4N to receive commands from an external MIDI device. You can use standard MIDI cable both 5 pins and 7 pins to connect to the MIDI IN port.
  • Page 3 PEAK PGR4N-Guitar Router / Switcher PGR4N single operation PGR4N with expansion Rev 3.0.0 (Dec.10, 2011) www.peak2005com...

  • Page 4: Basic Operations

    1. Remove the POWER (1) from the PGR4N. 2. Press and hold on the S1 (2) switch. 3. Re-apply POWER (1) to the PGR4N and wait for LED’s P1 (4) to flash, and then release the P1 (4) switch. 4. The PGR4N is now in the “PGR4N configuration setting”...
  • Page 5 1. Remove the POWER (1) from the PGR4N. 2. Press and hold on the S1 (2) switch. 3. Re-applying POWER (1) to the PGR4N and wait for LED’s P1 (4) to flash, and then release the P1 (4) switch. 4. The PGR4N is now in the “PGR4N configuration setting”...
  • Page 6 1. Remove POWER (1) from the PGR4N. 2. Press and hold the S1 (2) switch. 3. Re-apply POWER (1) to the PGR4N and wait for LED’s P1 (4) to flash, and then release the P1 (4) switch. 4. PGR4N is now in the “PGR4N configuration setting”...

  • Page 7: Preset Programming

    PEAK PGR4N-Guitar Router / Switcher Preset Programming The PGR4N can save the status of LOOP1 – LOOP4 (8) with a total 128 presets. To program a preset use the following steps; 1. Apply POWER (1) to the PGR4N. 2. Send the preset/patch from your MIDI foot controller to turn the PGR4N to the required preset. The foot controller may send MIDI Program Change message (PC) to the PGR4N unit.
  • Page 8 Momentary Preset Programming The PGR4N has a momentary mode to toggle the LOOP status in the current preset when PGR4N receives the same MIDI Program Change message (PC). This means you can toggle L1 – L4 that you have saved in the preset.
  • Page 9 PEAK PGR4N-Guitar Router / Switcher LOOP4 LOOP3 LOOP2 LOOP1 Table-13 Show L1, L2, L3, L4 and LOO1 – LOOP4 status. Rev 3.0.0 (Dec.10, 2011) www.peak2005com...
  • Page 10 PEAK PGR4N-Guitar Router / Switcher PGR4N MIDI Program Table MIDI PROGRAM CHANGE NUMBER (PGR4N Preset) Table-14 MIDI Program Change number (PC#). Rev 3.0.0 (Dec.10, 2011) www.peak2005com...
  • Page 11 PGR4N MIDI Continuous Controllers (CC) The PGR4N responds to MIDI Continuous Controller messages sent on its set MIDI channel. The PGR4N supports a MIDI controller capable of transmitting CC messages by assigning a button/switch on the controller to control a single loop on/off or momentary switch.
  • Page 12 PGR4N Phantom power The PGR4N supports phantom power over Pin6 and Pin7 of a standard 7pins MIDI cable. The supply power depends on the 9VDC I/O input terminal. Before connecting a standard 7 Pin MIDI cable to the MIDI IN port, you must check with your MIDI controller specification which Pin6 and Pin7 are connected.
