PEAK PGR4N-Guitar Router / Switcher
PGR4N configuration setting

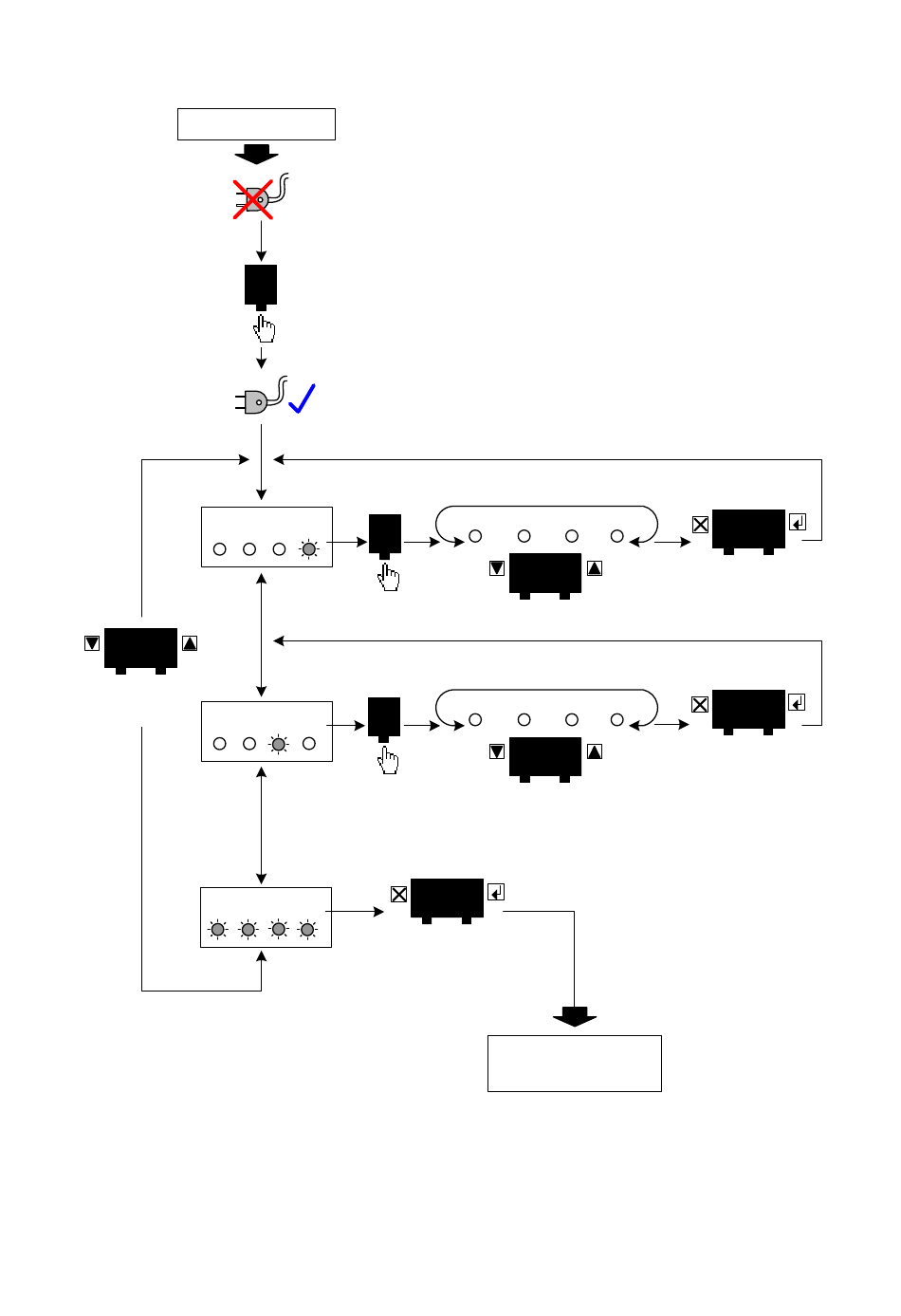

Configuration setting
S1
S2
Change mode
up/down by
press S1/S2
Rev 1.0 (Dec1, 2011) www.peak2005com
Power OFF
S1
Press & hold S1
Power ON
MIDI channel
mode setting.
P4
P3
P2
P1
S1
Hold on 3 sec.
for Entry
PGR4N device
number mode
setting.
S1
P4
P3
P2
P1
Hold on 3 sec.
for Entry
Reset to factory
default mode.
P4
P3
P2
P1
Pls, see Table-1 for MIDI channel mode
L4
L3
L2
S1
S2
Change MIDI channel
up/down by press S1/S2
Pls, see Table-2 for PGR4N
device number mode
L4
L3
L2
S1
S2
Change device number
up/down by press S1/S2
S1
S2
Hold 3 sec.
S1 = Reset
S2 = Cancel
Exit to PGR4N normal
mode
L1
S1
S2
Hold 3 sec.
S1 = Save setting
S2 = Cancel
L1
S1
S2
Hold 3 sec.
S1 = Save setting
S2 = Cancel
1
