Tropos Networks Outdoor Wi-Fi Cell
Installation Guide
Model 5210
Tropos Networks, Inc.
555 Del Rey Ave.
Sunnyvale, CA 94085
USA
www.troposnetworks.com
Part No. 200081-00 Rev A1
408-331-6800
November 30, 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5210 and is the answer not in the manual?

Questions and answers

Related Manuals for Tropos Networks 5210

Summary of Contents for Tropos Networks 5210

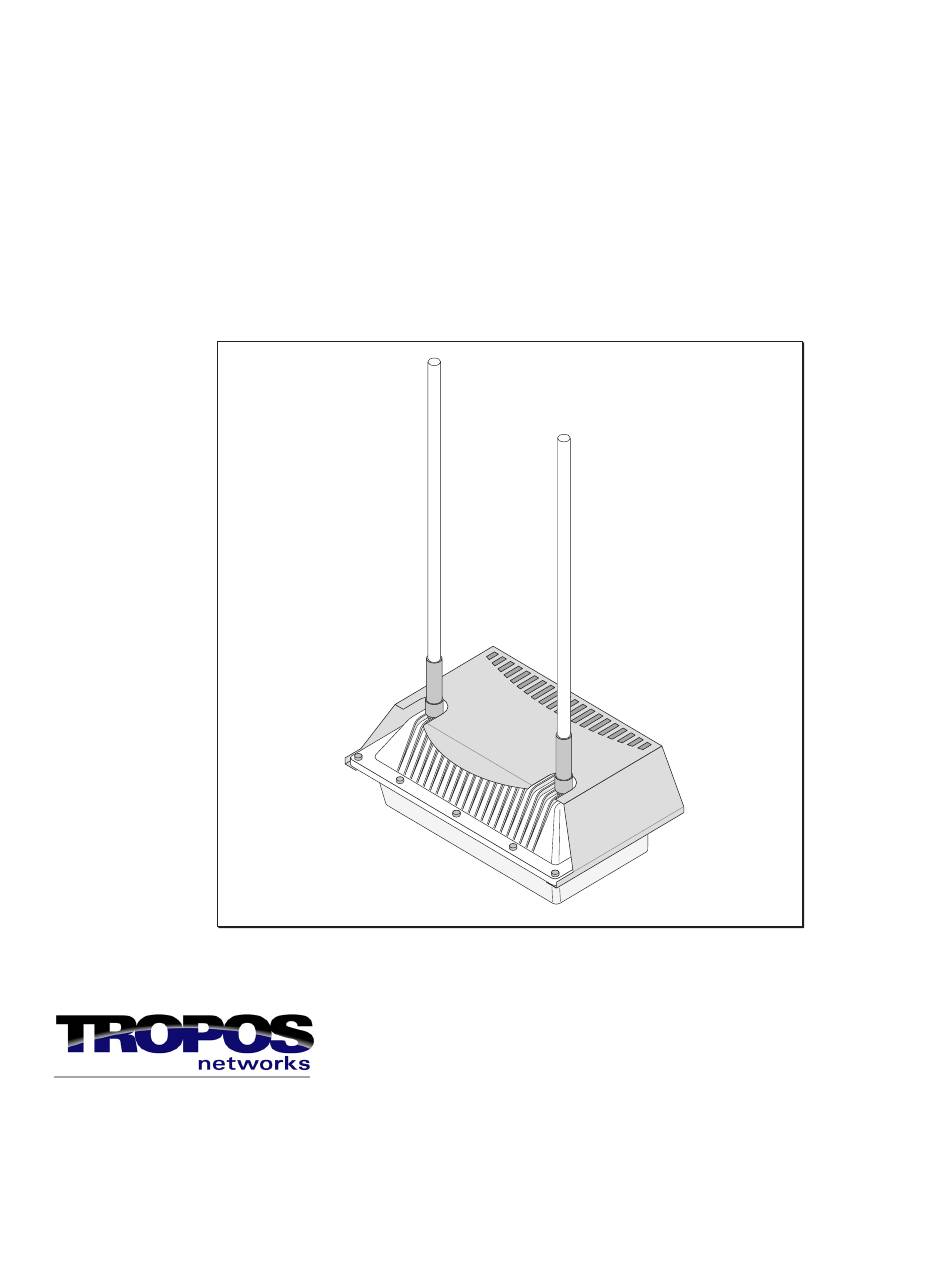

  • Page 1 Tropos Networks Outdoor Wi-Fi Cell Installation Guide Model 5210 Tropos Networks, Inc. 555 Del Rey Ave. Sunnyvale, CA 94085 www.troposnetworks.com Part No. 200081-00 Rev A1 408-331-6800 November 30, 2004...
