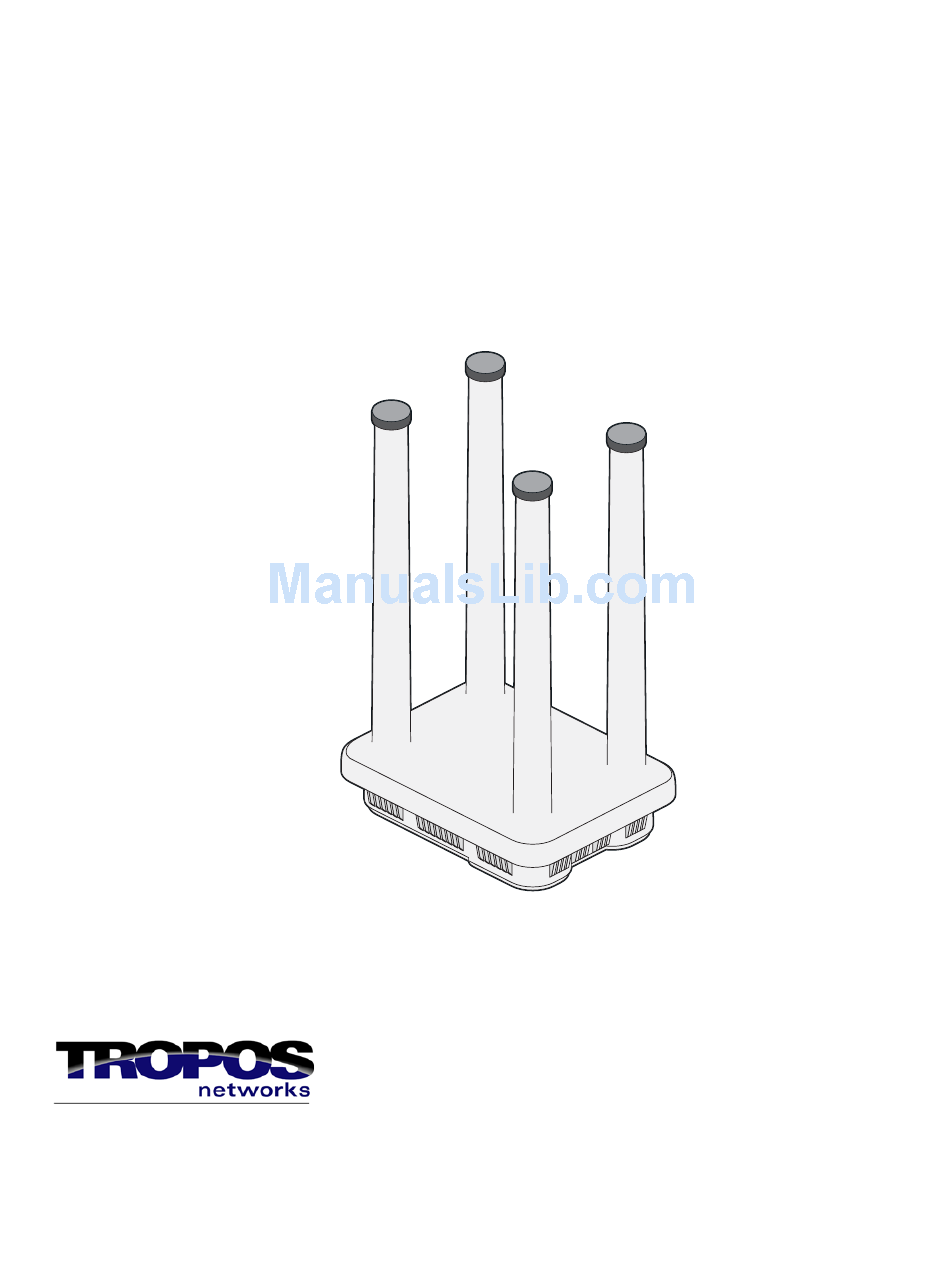

- Page 1 ® Tropos Networks MetroMesh™ Router Outdoor Installation Guide Models 6310 and 6320 trpo_013 Tropos Networks, Inc. 555 Del Rey Ave. Sunnyvale, CA 94085 USA www.troposnetworks.com Part No. 200315-00 Rev A0 408-331-6800 July, 2008...
-
Page 2: Copyright Notice
Consult the dealer or an experienced radio/TV technician. This Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Tropos Networks could void the user's authority to operate this device. - Page 3 Warning This device is for outdoor or indoor use with conditions that no harmful interference to authorized radio stations results from the operation of this device. This device shall not influence aircraft security and/or interfere with legal communications as defined in the “Telecommunications Act.”...
- Page 4 European Community Language Versions of Informal Statement for Inclusion in User Information The following statements are in accordance with Article 6.3 of Directive 1999/5/EC. 6320 5320 6310 6320 5320 6310 6320 5320 6310 6320 5320 6310 6320 5320 6310 6320 5320 6310 6320...
-
Page 5: Important Safety Instructions
STOP!! STOP!! STOP!! STOP!! READ THIS FIRST! Important Safety Instructions The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 6 Warning Risk of personal injury or death when installing this device! There is a risk of personal injury or death if the router antennas come near electric power lines. Carefully read and follow all instructions in this manual. By nature of the installation, you may be exposed to hazardous environments and high voltage.
-
Page 7: Table Of Contents
Contents Installing the Router ......... . 1 Product Summary. - Page 8 Wind Loading Considerations ....... . . 35 Abbreviations ..........36 Index .
- Page 9 List of Figures Tropos 6310/ 6320 Router Exploded View ..... . . 3 Example Mounting Location - Antennas Facing Upward ... . 7 Proper Use of the Clamp .
- Page 10 List of Tables Tropos 6310 Router Models ........2 Tropos 6320 Router Models .
-
Page 11: Installing The Router
Installing the Router ® This guide explains how to install the Tropos 6310 and 6320 MetroMesh™ routers safely and is intended for trained technical professionals. This chapter covers the following topics: “Product Summary” on page 2 “Preparing for Installation” on page 3 “Mounting Strategies”... -
Page 12: Product Summary
Product Summary Product Summary This document contains installation instructions for the following products: Tropos 6310 Router Tropos 6320 Router Tropos 6310 Router The Tropos 6310 router has the following characteristics: 802.11b/g/n band, 2400-2483 MHz Support for 802.11b/g/n clients PoE power input 20-60 Vdc; 100-277 VAC with external accessory LAN and Management 10/100BaseT Ethernet ports, auto-sensing Table 1 lists the Tropos 6310 router models. -
Page 13: Preparing For Installation
Preparing for Installation Preparing for Installation The Tropos 6310 and 6320 routers must be installed by a trained professional, value added reseller, or systems integrator who is familiar with RF planning issues and regulatory limits defined by the governing body of the country in which the unit will be installed. This section explains how to prepare the installation site. -
Page 14: Installation Hardware And Tools
Preparing for Installation Installation Hardware and Tools The following installation accessories are included in the shipping package: One pole bracket One 4-inch diameter clamp One 6-inch diameter clamp Five 5/16-inch #10-32 stainless steel hex head machine screws You must supply the following tools: Level 5/16-inch nut driver 1/4-inch flat blade screwdriver... -
Page 15: Location Guidelines
Preparing for Installation Location Guidelines Tropos routers are radio devices and therefore susceptible to interference that can reduce throughput and range. Follow these guidelines to ensure the best performance: Install the unit in an area where trees, buildings, and large steel structures do not obstruct radio signals to and from the antenna. -
Page 16: Power Source
Mounting Strategies Power Source The Tropos 6310 and 6320 routers are powered by power over Ethernet (PoE) input: PoE (20-60Vdc) 100-277 VAC with external accessory Caution Tropos 6310 and 6320 routers use proprietary PoE. The routers are not 802.3af compliant. Safety Installing the routers can pose a serious hazard. - Page 17 Mounting Strategies Acceptable options for mounting on a streetlight are shown in Figure 2. In each case the router is mounted to assure clearance for the antennas above the height of the streetlight. Figure 2 Example Mounting Location - Antennas Facing Upward Antennas clear of obstruction Antennas clear of obstruction...
-
Page 18: Proper Use Of Clamps
Proper Use of Clamps Proper Use of Clamps The mounting assembly contains a clamp to secure the router to the mounting structure. Figure 3 illustrates the proper use of the clamp. The clamp must be routed through a slot in the pole bracket as shown in the figure, and then attached to the pole and tightened. -
Page 19: Pole, Tower, And Streetlight Mounting Instructions
Pole, Tower, and Streetlight Mounting Instructions Pole, Tower, and Streetlight Mounting Instructions This section explains how to mount the router on a pole, tower, or streetlight. It is best to mount the router to aluminum or galvanized steel structures. The mounting brackets are designed to pierce any oxidation layers that are on the outside of the pole, thereby assuring good quality connection to the grounded structure. -
Page 20: Metal Pole Mounting
Pole, Tower, and Streetlight Mounting Instructions Metal Pole Mounting Figure 4 illustrates proper mounting for an outdoor metal pole. Note Antennas must be clear of obstruction. Figure 4 Metal Pole Mounting Wireless router Clamp Pole bracket Tropos MetroMesh Routers Installation Guide, Models 6310 and 6320... - Page 21 Pole, Tower, and Streetlight Mounting Instructions Mount the router on a metal pole 1. Select a mounting location. You can attach the router to any pipe or pole with diameter between 1 inch and 10 inches. 2. Slip the flat portion of the clamp under the inner slot of the pole bracket. 3.
- Page 22 Pole, Tower, and Streetlight Mounting Instructions Figure 5 Placing the Router on the Mounting Assembly trpo_015 To continue installing the router, see “Connecting Data Cables” on page 18. Tropos MetroMesh Routers Installation Guide, Models 6310 and 6320...
-
Page 23: Wood Pole Mounting
Pole, Tower, and Streetlight Mounting Instructions Wood Pole Mounting Figure 6 illustrates proper mounting for an outdoor wood pole. Note Antennas must be clear of obstruction. Figure 6 Wood Pole Mounting Wireless Router Pole bracket trpo_005 Tropos MetroMesh Routers Installation Guide, Models 6310 and 6320... - Page 24 Pole, Tower, and Streetlight Mounting Instructions Mount the router on a wood pole 1. Select a mounting location. You can attach the router to any outdoor wood pole of diameter at least 1 inch. 2. Attach the pole bracket to the pole by threading a 1/4-inch bolt through the hole in the clamp slot to the pole.
-
Page 25: Wood Brace Mounting
Pole, Tower, and Streetlight Mounting Instructions Wood Brace Mounting You can mount the pole bracket directly on a wood brace without using clamps, as shown in Figure Figure 7 Wood Brace Mounting Option 1/4" lag bolt 3-1/2" minimum Wood brace trpo_006 Mount the router on a wood pole 1. -
Page 26: Tower Mounting
Pole, Tower, and Streetlight Mounting Instructions 5. Place the upright router onto the top of the mounting bracket, as shown in Figure 5 on page 12. Secure the mounting bracket to the router by attaching two 5/16-inch machine screws through the holes in the mounting bracket tabs to corresponding holes on the bottom of the router. -
Page 27: Streetlight Mounting
Pole, Tower, and Streetlight Mounting Instructions Streetlight Mounting You can mount the router on the horizontal or angled arm of a streetlight. Figure 9 shows a typical streetlight mounting installation. Figure 9 Streetlight Mounting Router Pole bracket trpo_00 Mount the router on a streetlight 1. -
Page 28: Connecting Data Cables
Connecting Data Cables 4. Attach the mounting bracket of the router to the pole bracket with two 5/16-inch machine screws (refer to Figure 4 for the correct orientation): Insert one screw through the hole at the top of the mounting bracket to the hole at the top of the pole bracket. -
Page 29: Connecting The Ethernet Cable
Connecting Data Cables Attention Une tension continue peut être présente sur les broches RJ-45 4, 5 (+) et 7, 8 (-). Note This is not a mid-span powered device. Never attempt to daisy-chain Power Over Ethernet devices. Connecting the Ethernet cable 1. - Page 30 Connecting Data Cables 6. Plug the cable into the appropriate port on the router. For power and wired network connectivity, plug the cable into the LAN port, which is farther from the edge of the router than the MGT port (see Figure 11).
-
Page 31: Grounding The Router
Grounding the Router Grounding the Router Caution You must install an external grounding wire if the router is installed on a non-metal pole or if the metal installation structure is not properly grounded. You must also ground the outdoor data protection device to a bonded pipe or ground rod. Make sure that grounding is complete before you connect power to the router. -
Page 32: Grounding The Data Protection Device
Grounding the Router Grounding the Data Protection Device The grounding arrangement for an indoor data protection device is shown in Figure Ground an indoor data protection device 1. Place the protection device as close to the building entrance as possible. 2. -
Page 33: Safety And Servicing Information
Safety and Servicing Information Safety and Servicing Information The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has adopted a safety standard for human exposure to RF electromagnetic energy emitted by FCC certified equipment. The Tropos 6310 and 6320 routers meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. -
Page 34: Power Consumption
Power Consumption Figure 14 shows router power consumption as a function of traffic load. Figure 14 6310/ 6320 Power Consumption Tropos MetroMesh Routers Installation Guide, Models 6310 and 6320... -
Page 35: Product Specifications
Product Specifications The tables in this chapter contain specifications for the Tropos 6310 and 6320 routers: “Physical Specifications” on page 25 “Interfaces” on page 27 “Power Options / Consumption” on page 30 “Certifications, Other” on page 30 Table 3 Physical Specifications Specification Value Physical Dimensions... - Page 36 Table 3 Physical Specifications (continued) Specification Value Wind Loading (165 mph) < 210 newtons Projected Area 0.7 sq. ft. (100 sq. in.) Corrosion Resistance ASTM B117 Salt Fog rust resistance compliant Color Color Unpainted metal/White Radome Shock and Vibration Operational: ETSI 300-19-2-4 Specification T41.E, class 4M3...
- Page 37 Table 4 Interfaces Specification Value LAN Interface • Auto sensing IEEE 802.3 10/100BaseT • Maximum Distance (ft): 550 (10BaseT Duplex Setting) 300 (100BaseT Duplex Setting) • RJ45 connector MGT Interface • Auto sensing IEEE 802.3 10/100Base T • Maximum Distance (ft): 550 (10BaseT Duplex Setting) 300 (100BaseT Duplex Setting) •...
- Page 38 Table 4 Interfaces (continued) Specification Value Rx Saturation -5dBm (1 Mbps) Maximum Power at Antenna -5dBm (2 Mbps) Port -5dBm (5.5 Mbps) -5dBm (11 Mbps) -5dBm (6 Mbps) -5dBm (9 Mbps) -5dBm (12 Mbps) -10dBm (18 Mbps) -30dBm (24 Mbps) -35dBm (36 Mbps) -35dBm (48 Mbps) -35dBm (54 Mbps)
- Page 39 Table 4 Interfaces (continued) Specification Value Rx Saturation -30dBm (6 Mbps) Maximum Power at Antenna -30dBm (9 Mbps) Port -30dBm (12 Mbps) -30dBm (18 Mbps) -30dBm (24 Mbps) -35dBm (36 Mbps) -35dBm (48 Mbps) -35dBm (54 Mbps) Antennas Multi-antenna system: 1-TX x 1-RX 8dBi omnidirectional integrated antennas Support for 802.11n Tropos MetroMesh Routers Installation Guide, Models 6310 and 6320...
-
Page 40: Power Options / Consumption
Table 5 Power Options / Consumption Specification Value Antenna Protection <= 0.5μJ for 3kA @ 8/20μS Waveform EN61000-4-2 Level 4 ESD Immunity EN61000-4-5 Level 4 Surge Immunity Data Port Protection EN61000-4-2 Level 4 ESD Immunity EN61000-4-5 Level 4 Surge Immunity Power Power Input Power input: PoE (20-60Vdc) -
Page 41: Antenna Information
Antenna Information This chapter provides information on the integrated Tropos antennas: “2.4 GHz Antennas” on page 32 “5 GHz Antenna” on page 33 Tropos MetroMesh Routers Installation Guide, Models 6310 and 6320... - Page 42 2.4 GHz Antennas Specifications for the 2.4 GHz antennas: Integrated omni antenna Length: 11.5” (29.2 cm) Average gain azimuth: 5.2dBi Peak gain: 6.0 dBi Maximum efficiency: 73% Antenna Patterns are shown in Figure Figure 15 2.4 GHz Antenna Patterns Tropos MetroMesh Routers Installation Guide, Models 6310 and 6320...
- Page 43 5 GHz Antenna Specifications for the 5 GHz antenna: Integrated omni antenna Length: 10” (25.4 cm) Average gain azimuth: 7.0dBi Peak gain: 8.0 dBi Maximum efficiency: 68% Antenna Patterns are shown in Figure Figure 16 5 GHz Antenna Patterns Tropos MetroMesh Routers Installation Guide, Models 6310 and 6320...
-
Page 44: Installation Accessories
Installation Accessories This chapter contains accessory ordering information: Table 7 Installation Accessories Description Manufacturer Part Number Distributor Contact Information Outdoor CAT5 4-Pair Data Belden 7929A Anixter www.anixter.com Cable www.anixter.com Belden 7921A Anixter (recommended) Superior BBDG Crossover www.crossoverdistribution.com Essex Distribution Cable, CAT5, 8 Conductor, Madison 08KFK00013 Tyco... -
Page 45: Wind Loading Considerations
1 square foot. Pole manufacturers have advised Tropos Networks that small communications devices such as Tropos routers do not present any significant static or dynamic load to these structures. - Page 46 Abbreviations The following acronyms are used in this document. Table 8 Abbreviations Two-Phase or Split Phase Two-Wire Three-Wire AASHTO American Association of State Highway and Transportation Officials Alternating Current ANSI American National Standards Institute American Wire Gauge Celsius Category Complementary Code Keying Conformite Europeene Code of Federal Regulations CISPR...
- Page 47 Table 8 Abbreviations (continued) Directorate General of Telecommunications (Taiwan) DQPSK Differential-Quadrature Phase-Shift Keying DSSS Direct-Sequence Spread Spectrum Electrically Fast Transients EIRP Effective Isotropic Radiated Power Electromagnetic Compatibility IEC standard Electrostatic Discharge ETSI European Telecommunications Standards Institute European Union Federal Communications Commission FHSS Frequency Hopping Spread Spectrum Hybrid Fiber Coax...
- Page 48 Table 8 Abbreviations (continued) National Electrical Codes NEMA National Electrical Manufacturers Association OFDM Orthogonal Frequency Division Multiplexing Phase Protective Earth Power over Ethernet RJ45 Registered Jack 45 Received Signal Strength Receive Receive Data Technical Inspection Association Transmit Transmit Data Underwriters Laboratories Uninterruptible Power Supply Voltage (Alternating Current) VCCI...
- Page 49 Index Numerics grounding 2.4 GHz antenna connecting 2.4 GHz antennas data protection device 5 GHz antenna router 6310 router 6320 router installation hardware and tools installation, site surveys accessories installing Tropos router American Association of State Highway and Transportation interfaces Officials (AASHTO) antennas 2.4 GHz...
- Page 50 physical environment pole mounting ports power consumption source specifications preparing for installation product specifications certifications interfaces physical power regulatory notices RJ45 Ethernet ports router diagram exploded view router models rubber boot safety general considerations information site planning site surveys specifications certifications interfaces physical...
