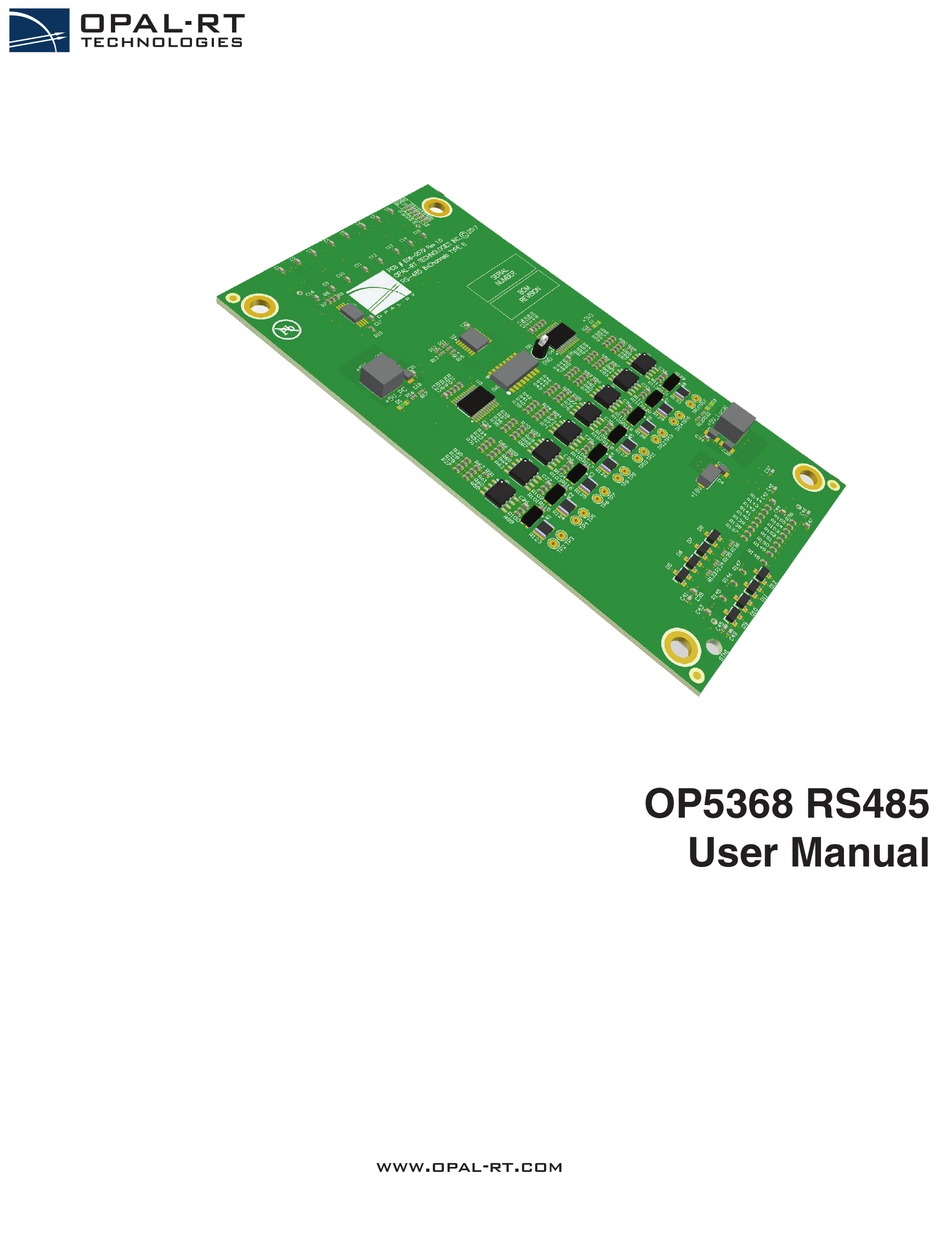

- Page 1 OP5368 RS485 User Manual www.opal-rt.com...
- Page 2 Published by OPAL-RT Technologies, Inc. 1751 Richardson, suite 2525 Montreal, Quebec Canada H3K 1G6 www.opal-rt.com © 2018 OPAL-RT Technologies, Inc. All rights reserved Printed in Canada...
- Page 3 • Recovery time management (Tm, Tr, Tst) • NOTE: The OP5368 does not supply power to the encoder. External power must be supplied to the encoder. BISS BiSS is hardware compatible to the industrial standard SSI (Serial Synchronous Interface) : biss specifications •...
-
Page 4: Motor Model
(Speed, position) Endat 2.2 OP5368 RS485 Controller Figure 1: Architecture example typical application diagram 8x BIDIRECTIONAL RS485 CHANNELS RX_0 FPGA CH_0_P USER DIRECTION_0 120 Ohm SIDE SIDE CH_0_N 1/2W TX_0 10 K OP5368 typical application diagram OPAL-RT Technologies OP5368 User Manual... -
Page 5: Connector Pin Assignments
OP5368 RS485 Module SPECIFICATIONS connector pin assignments DB37 connectors are divided as follows: A = channels 16 to 31, B = channels 0 to 15. DB37 DB37 Endat BiSS DB37 DB37 Endat BiSS Connector Channel Pinout Pinout Connector Channel Pinout... - Page 6 OP5368 RS485 Module SPECIFICATIONS OPAL-RT Technologies OP5368 User Manual...
- Page 7 H3K 1G6 recently issued regulations, standards, and Tel.: 514-935-2323 guidelines. Toll free: 1-877-935-2323 This publication is not intended to form the basis of a contract. Technical Services www.opal-rt.com/support UM18-47326 RVN 1.0 12/2018 © Opal-RT Technologies Inc.
