AERMEC Omnia UL 16 N Use And Installation Manual

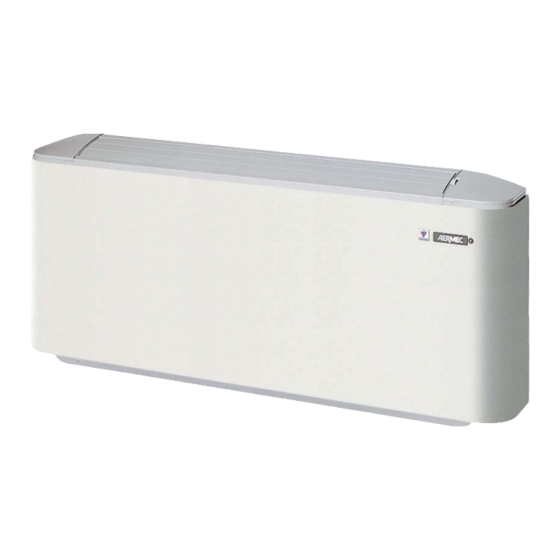

Fan coil unit with inverter brushless motor eech for floor installation with electronic thermostat and purifier plasmacluster, for residential use
Hide thumbs Also See for Omnia UL 16 N:

Advertisement

Table of Contents

VENTILCONVETTORE CON MOTORE BRUSHLESS INVERTER EC PER INSTALLAZIONE A PAVIMENTO CON TER
MOSTATO ELETTRONICO E DEPURATORE PLASMACLUSTER®, PER USO RESIDENZIALE
FAN COIL UNIT WITH INVERTER BRUSHLESS MOTOR EC FOR FLOOR INSTALLATION WITH ELECTRONIC
THERMOSTAT AND PURIFIER PLASMACLUSTER®, FOR RESIDENTIAL USE
UNITÉ DE VENTILO CONVECTEURS AVEC MOTEUR VARIATEUR BRUSHLESS CE POUR L'INSTALLATION
AU SOL AVEC THERMOSTAT ÉLECTRONIQUE ET PURIFICATEUR PLASMACLUSTER®, À USAGE
D'HABITATION
FAN COIL EINHEIT MIT INVERTERBÜRSTENLOSEN MOTOR EG FÜR VERLEGUNG MIT ELEKTRONISCHEM
THERMOSTAT UND REINIGER PLASMACLUSTER®, FÜR WOHNZWECKE
UNIDAD DE BOBINA DE VENTILADOR CON MOTOR INVERSOR SIN ESCOBILLAS CE PARA LA INSTALA
CIÓN DEL PISO CON TERMOSTATO ELECTRÓNICO Y PLASMACLUSTER® PURIFICADOR, PARA USO RESI
DENCIAL
Omnia ULI_PC
Omnia UL
16 N
Omnia UL
21 N
Omnia UL
36 N
M A N U A L E
D ' U S O
U S E
A N D
I N S T A L L A T I O N
M A N U E L D ' U T I L I S AT I O N E T D ' I N S TA L L AT I O N
B E D I E N U N G S U N D I N STA L L AT I O N SA N L E I T U N G
M A N UA L D E I N S T R U C C I O N E S E I N S TA L A C I Ó N
IULIPCLJ 1201 - 6976445_00
E
I N S T A L L A Z I O N E
M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Omnia UL 16 N and is the answer not in the manual?

Questions and answers

Related Manuals for AERMEC Omnia UL 16 N

Summary of Contents for AERMEC Omnia UL 16 N

  • Page 1 M A N U A L E D ’ U S O I N S T A L L A Z I O N E U S E A N D I N S T A L L A T I O N M A N U A L M A N U E L D ’...

  • Page 2: Table Of Contents

    INDICE • TABLE OF CONTENTS • INDEX • INHALTSVERZEICHN • ÍNDICE fan coil with plasmacluster air purifier omnia uli_pc use (omnia uli_pc) ventilation logic in aux position light visualisations (uli_pc in the standard configuration) functioning characteristics packaging unit installation electrical wirings rotating the coil dip switch configuration important information and maintenance...

  • Page 3: Fan Coil With Plasmacluster Air Purifier

    FAN COIL WITH PLASMACLUSTER AIR PURIFIER OMNIA ULI_PC Congratulations on your purchase of the Aermec OMNIA ULI fan coil. Made with materials of superior quality in strict compliance with safety regulations, "OMNIA" is easy to use and will have a long lifespan.

  • Page 4: Use (Omnia Uli_Pc)

    USE OMNIA ULI_PC COMMANDS: Ventilation is only allowed when the fins are open; if necessary, open them manu- ally. Closing the fins switches off ventilation although the electronic thermostat remains active and continually records ambient data to ensure a prompt restart if the fins are opened again.

  • Page 5: Functioning Characteristics

    FUNCTIONING CHARACTERISTICS therefore vary from a minimum of 0'00" to a maximum of 2'40". Frost Protection (anti-freeze protection) The OMNIA ULI_PC fan coils are supplied ready to operate in the The anti-freeze protection allows you to check that the room tem- standard configuration, but the installer can adapt them to the perature never falls to freezing values, even when the fan coil is specific needs of the system with special accessories, and can cus-...

  • Page 6: Electrical Wirings

    drainage with the consequent spilling of liquid. Use H05V-K or N07V-K type cables with 300/500V with insula- The assembly site must be chosen in such a way that the maxi- tion, piped or ducted. mum and minimum ambient temperature limits are respected Use power supply cables with a minimum cross-section of 0÷45°C (<85% U.R.).

  • Page 7: Dip Switch Configuration

    DIP SWITCH CONFIGURATION The board has specific configuration dip-switches for the possible installations. There are 8 microswitches are and they have the fol- lowing functions: Dip_Board Posi on Meaning With shut-o valve Dip1 No shut-o valve Water probe upstream of the 3-way valve Dip2 Water probe downstream of the 3-way valve Dead band 2°C...

  • Page 8: Operating Limits

    DURING OPERATION OPERATING LIMITS Always leave the filter fitted on the fan coil during operation Maximum water inlet temperature: 80°C (otherwise dust in the air could soil the coil surface area). Maximum operating pressure: 8 bar Minimum average water temperature: IT IS NORMAL To avoid condensate on the external structure of the device In cooling mode, water vapour may be present in the air deliv-...
  • Page 9 PROBLEMA • PROBLEM PROBABILE CAUSA • PROBABLE CAUSE SOLUZIONE • REMEDY PROBLEME • PROBLEM CAUSE PROBABLE • MÖGLICHE URSACHE SOLUTION • ABHILFE PROBLEMA CAUSA PROBABLE SOLUCIÓN Errata impostazione della velocità sul pannello comandi. Scegliere la velocità corretta sul pannello comandi. Wrong speed setting on the control panel.

This manual is also suitable for:

Omnia ul 21 nOmnia ul 36 n
