AERMEC VMF-E18 Use And Installation  Manual

AERMEC VMF-E18 Use And Installation Manual

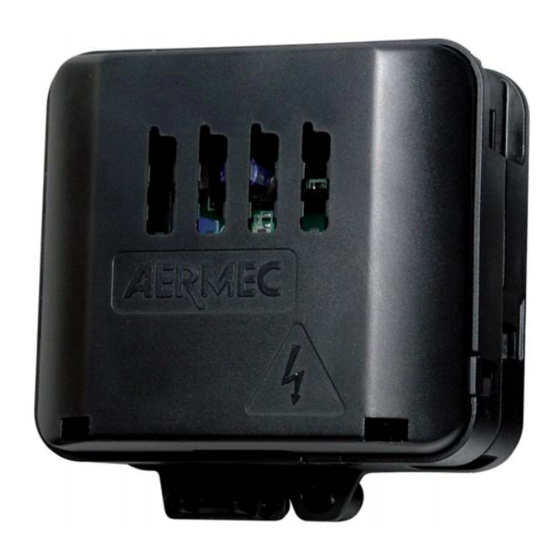

Vmf system expandable thermostat board for inverter fan coils

Advertisement

Quick Links

Sistema VMF
Scheda termostato espandibile per ventilconvettori Inverter
VMF system
Expandable thermostat board for Inverter fan coils
Système VMF
Platine thermostat extensible pour ventilo-convecteurs Inverter
VMF-System
Erweiterbare Thermostatplatine für Inverter-Gebläsekonvektoren
Sistema VMF
Tarjeta termostato expansible para fan coils Inverter
VMF-E18
M A N U A L E
D ' U S O
U S E
A N D
I N S T A L L A T I O N
MANUEL D'UTILISATION ET D'INSTALLATION
BEDIENUNGS- UND INSTALLATIONSANLEITUNG
MANUAL DE INSTRUCCIONES E INSTALACIÓN
AVMFE18LJ1101 - 6795746_02
E
I N S T A L L A Z I O N E
M A N U A L

Advertisement

loading
Need help?

Need help?

Do you have a question about the VMF-E18 and is the answer not in the manual?

Questions and answers

Summary of Contents for AERMEC VMF-E18

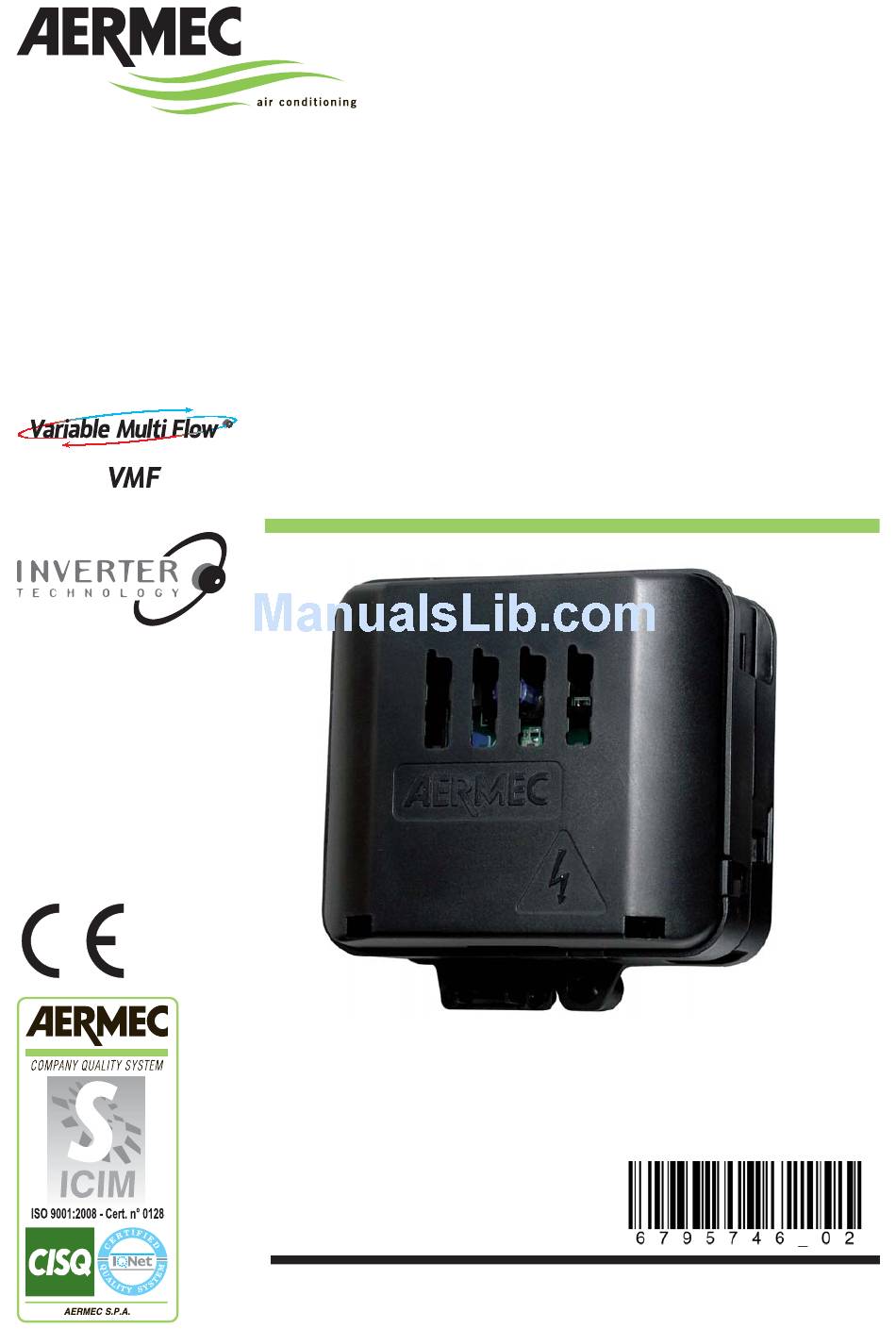

  • Page 1 Scheda termostato espandibile per ventilconvettori Inverter VMF system Expandable thermostat board for Inverter fan coils Système VMF Platine thermostat extensible pour ventilo-convecteurs Inverter VMF-System Erweiterbare Thermostatplatine für Inverter-Gebläsekonvektoren Sistema VMF Tarjeta termostato expansible para fan coils Inverter VMF-E18 AVMFE18LJ1101 - 6795746_02...
  • Page 2 Congratulations on your purchase of this “VMF-E18” Aermec kit containing an ELECTRONIC EXPANDABLE THERMOSTAT BOARD. Made with top quality materials in strict compliance with safety regulations, “VMF-E18” will provide you with outstanding performance for a long time to come. INDEX Important information •...
  • Page 3 E0 (VMF-E0) type board, the Inverter Heating operation requires a water automatic swap to Heating operation. Slave fan coil with the VMF-E18 board circuit with boiler, heat pump or solar If the actual ambient temperature is will lose the continuous control of the system.
  • Page 4 equal to the dead band, there is an the Master probe alone. In this case, • External contact automatic swap to Cooling operation. ventilation is always enabled on the The board offers the possibility of a con- In the fan coil networks, the values of the Slave fan coil.
  • Page 5 the Heating set point by a value equal • Heating mode with electric heater which the thermostat will operate at to the dead band, there is an automatic (if present) the ventilation speed determined by swap to Cooling operation. The electric heater must be enabled by the microprocessor on the basis of the If the actual ambient temperature falls configuring the dip-switches on the...
  • Page 6 Adjusting a 2-pipe system Upstream water probe Downstream water probe Water probe fi tted Water probe not fi tted Water probe fi tted Water probe not fi tted Water side changeover Air side changeover Air side changeover Air side changeover Pre-heating delay Pre-heating delay No ventilation delay...
  • Page 7: Network Settings

    - Consisting of up to 6 fan coils (one electronic board with microprocessor the main fan coil (Master) are received Master and 5 Slaves) (VMF-E18, VMF-E1 or VMF-E0 by the other fan coils (Slaves). - Maximum TTL line length 30m. accessory) which has outputs in order The units connected to the TTL network to be inserted in a TTL network.
  • Page 8 BOARD INSTALLATION AND CONNECTIONS • The VMF-E18 Kit includes the system with connection cables to the Inverter Control Module. The cables are wired with connectors for quick connection. The installation of the VMF-E18 kit requires that standard control board and connection cables to the Inverter Control Module (Signal and Supply) are removed from the fan coil.
  • Page 9 ELECTRONIC BOARD CONNECTIONS Connections key: L - N = Power supply SA = Air probe RS485 / E5 = Supervision serial + 230V AC - 50Hz Analogue input Power supply VMF-E5 (5 Poles) Screw clamps Removable-type connector Removable-type connector Minimum cable section = 0.5mm Maximum cable length = 3m Shielded cable size AWG22-5 Maximum cable section = 2.0mm...
  • Page 10: Dip Switch Settings

    DIP-SWITCH SETTINGS Turn off the power to the unit. This operation should be carried **Warning: if the thermostats are inserted in systems with out in the installation phase, by suitably trained and qualified Centralised Control or Supervisor (e.g. VMF-E5), it is necessary personnel only.
  • Page 11 E18 TECHNICAL CHARACTERISTICS Power supply 230V AC +/-10%, 50-60 Hz Max input power (excluding loads controlled by TRIACs) 4.5VA Digital inputs 4 free contacts Analogue inputs 3 for reading NTC 10K probes Analogue outlets 2 (0-10V) for Inverter reference and valve control Digital outputs 2, 230V AC with Triac Assembly...
  • Page 12 COLLEGAMENTI • CONNECTIONS • RACCORDEMENTS • ANSCHLÜSSE • CONEXIONES Out 0-10V Rif.Inverter Out 0-10V In Fault Inverter Alimentazione modulo Inverter Inverter module power supply Alimentation du module Inverter Stromversorgung Inverter-Steuermodul Alimentación módulo Inverter Alimentazione elettrica Y1 Comando valvola VC/VF + Y2 Comando accessorio Power supply Y1 VC/VF control + Y2 Accessory control Alimentation électrique...
  • Page 13 COLLEGAMENTI • CONNECTIONS • RACCORDEMENTS • ANSCHLÜSSE • CONEXIONES SP Sensore presenza + CE Contatto esterno Sonda temperatura aria SP Presence sensor + CE External contact Air probe SP Capteur de présence + CE Contact extérieur Sonde d’air SP Anwesenheitssensor + CE Außenkontakt Lufttemperaturfühler SP Sensor de presencia + CE Contacto externo Sonda aire...
  • Page 14 RS485 Liaison série de supervision + E5 Alimentation VMF-E5 RS485 Serielle Überwachungsschnittstelle + E5 Versorgung VMF-E5 RS485 Serial supervisión + E5 Alimentación VMF-E5 22AWG-5 22AWG-3 VMF-E5 VMF-E18 22AWG-5 22AWG-3 MAX. 30m VMF-E5 RS485 Seriale supervisione (Alimentazione esterna VMF-E5) RS485 Supervision serial (VMF-E5 external power supply) RS485 Liaison série de supervision (Alimentation externe VMF-E5)
  • Page 15 Serielle Überwachungsschnittstelle RS485 (VMF_E18 - VMF_E18) Serial supervisión RS485 (VMF_E18 - VMF_E18) 22AWG-3 22AWG-3 22AWG-3 VMF-E18 VMF-E5 Seriale supervisione RS485 (VMF_E18 - MODU_485A) Supervision serial RS485 (VMF_E18 - MODU_485A) Liaison série de supervision RS485 (VMF_E18 - MODU_485A) Serielle Überwachungsschnittstelle E18 - MODU_485A Serial supervisión RS485 (VMF_E18 - MODU_485A)
  • Page 16 CN22 CN25 CN26 CN19 CN18 CN14 VMF-E18 ROSA CN7-B CN7-A VC/F Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina. A l l...
  • Page 17 CN22 CN25 CN26 CN19 CN18 CN14 VMF-E18 ROSA CN7-B CN7-A VC/F Dis. 5384005_01 Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina. A l l...
  • Page 18 SCHEMI ELETTRICI • WIRING DIAGRAMS • SCHEMAS ELECTRIQUES • ELEKTRISCHE SCHALTPLÄNE • ESQUEMAS ELECTRICOS VMF-E18 (master + slave) VMF-E5 VMF-E2/E4 Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina.
  • Page 19 SCHEMI ELETTRICI • WIRING DIAGRAMS • SCHEMAS ELECTRIQUES • ELEKTRISCHE SCHALTPLÄNE • ESQUEMAS ELECTRICOS VMF-E18 (master + slave) VMF-E5 VMF-E2/E4 CN11 CN12 Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina.
  • Page 20 SCHEMI ELETTRICI • WIRING DIAGRAMS • SCHEMAS ELECTRIQUES • ELEKTRISCHE SCHALTPLÄNE • ESQUEMAS ELECTRICOS TTL Seriale locale TTL Local serial TTL Liaison série locale TTL Lokale serielle Schnittstelle TTL Serial Local Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina. A l l w i r i n g d i a g r a m s...
  • Page 21 RE485 Seriale supervisione (Alimentazione esterna VMF-E5) RE485 Supervision serial (VMF-E5 external power supply) RE485 Liaison série de supervision (Alimentation externe VMF-E5) RE485 Serielle Überwachungsschnittstelle (Externe Stromversorgung VMF-E5) RE485 Serial supervisión (Alimentación externa VMF-E5) 22AWG-3 22AWG-3 VMF-E5 VMF-E18 22AWG-3 22AWG-3 VMF-E5 CN11 CN12 12Vac 14Vdc Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina.
  • Page 22 RE485 Supervision serial + E5 VMF-E5 power supply RE485 Liaison série de supervision + E5 Alimentation VMF-E5 RE485 Serielle Überwachungsschnittstelle + E5 Versorgung VMF-E5 RE485 Serial supervisión + E5 Alimentación VMF-E5 22AWG-3 22AWG-5 VMF-E5 VMF-E18 22AWG-5 22AWG-3 MAX. 30m VMF-E5 CN11 CN12 Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina.
  • Page 23 Liaison série de supervision RS485 (VMF_E18 - MODU_485A) Serielle Überwachungsschnittstelle E18 - MODU_485A Serial supervisión RS485 (VMF_E18 - MODU_485A) 22AWG-3 22AWG-3 MODU-485A VMF-E18 VMF-MCR 22AWG-3 22AWG-3 CN11 CN12 Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina.
  • Page 24 Liaison série de supervision RS485 (VMF_E18 - VMF_MCR) Serielle Überwachungsschnittstelle RS485 (VMF_E18 - VMF_MCR) Serial supervisión RS485 (VMF_E18 - VMF_MCR) 22AWG-3 22AWG-3 VMF-MCR VMF-E18 VMF-MCR 22AWG-3 22AWG-3 CN11 CN12 Los esquemas eléctricos están sujetos a modificaciones continuas, por lo tanto es obligatorio tomar la referencia de los que se encuentran a bordo de la máquina.
  • Page 25 AERMEC S.p.A. si riserva la facoltà di apportare in qualsiasi momento tutte le modifiche ritenute necessarie per il miglioramento del prodotto. Les données mentionnées dans ce manuel ne constituent aucun engagement de notre part. Aermec S.p.A. se réserve le droit de modifier à tous moments les données considérées nécessaires à...
