Pt 100 Thermostat TR 600 with interface RS 485
Short Description

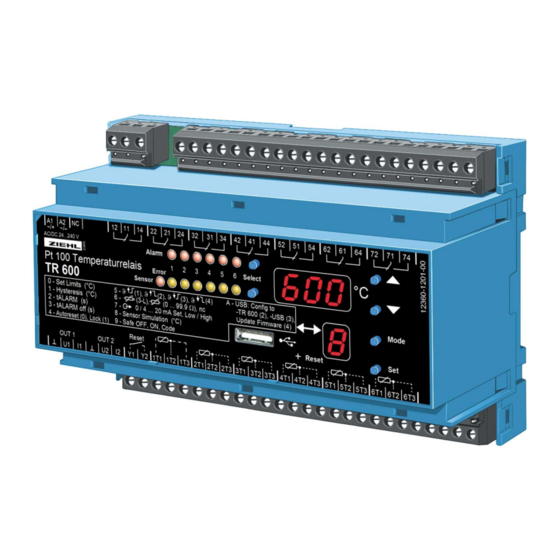

The Pt 100 thermostat TR 600 is a temperature controller and monitors up to six Pt 100
sensors at the same time. Six switching points and six relays permit almost any
combination of switching action. It also can select the highest temperature of a group of
three or six sensors. Temperatures and switching states of alarms/relays are available at
the interface RS 485. Programming is very variable and simple.
Application
Due to the fact that 6 type Pt 100 sensors can be connected, the unit is especially
suitable for temperature monitoring wherever up to 6 different measuring points must be
monitored simultaneously:
• motors and generators with simultaneous monitoring of bearings and coolant.
• transformers with additional monitoring of the core temperature also.
• power machines and plants
Approval
Wiring scheme:
Us
DC + –
AC ~ ~
A1 A2 PE
~/+ ~/–
