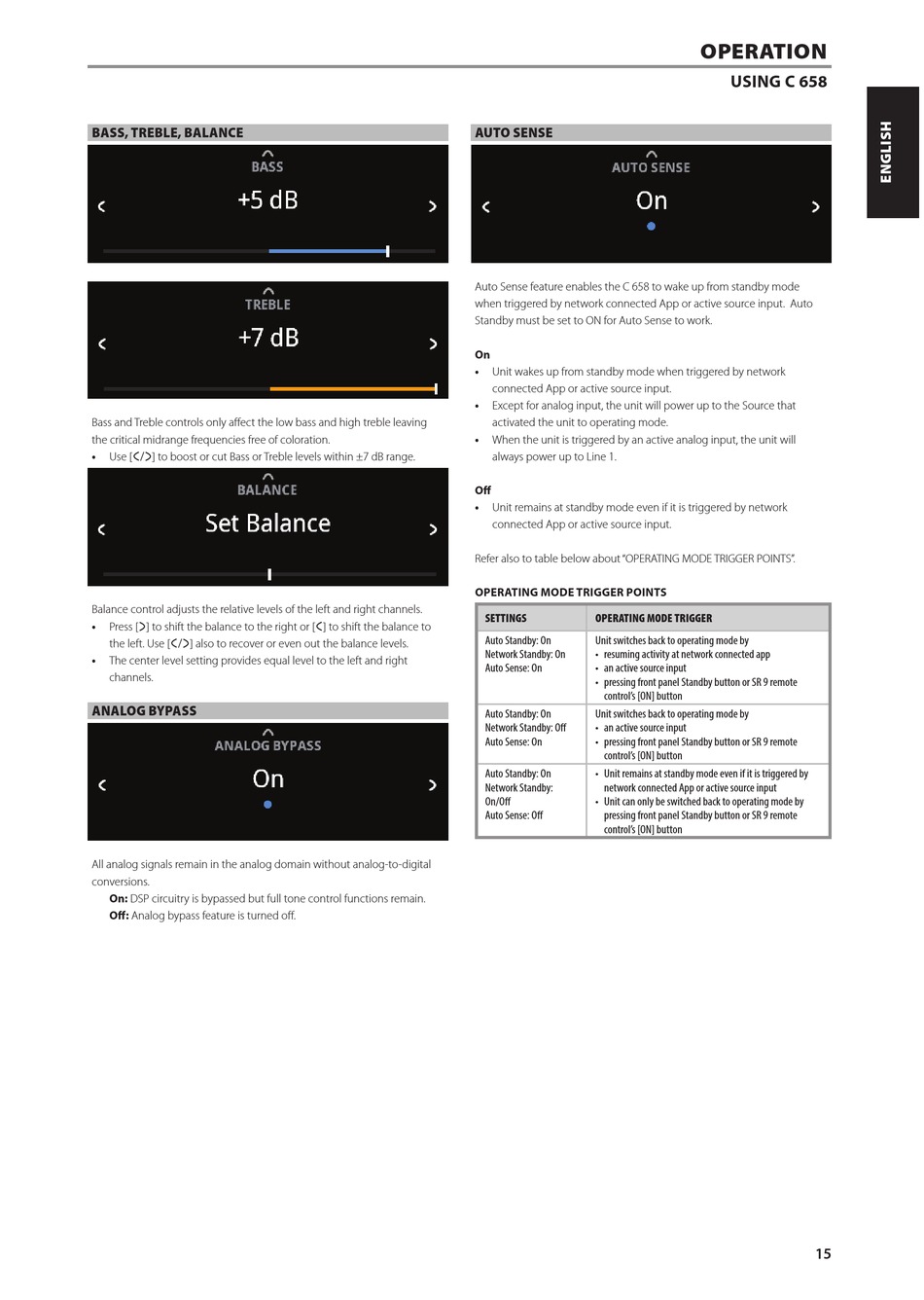

Bass, Treble, Balance; Analog Bypass; Auto Sense - NAD C 658 Owner's Manual

BASS, TREBLE, BALANCE

Bass and Treble controls only affect the low bass and high treble leaving
the critical midrange frequencies free of coloration.
• Use [a/s] to boost or cut Bass or Treble levels within ±7 dB range.
Balance control adjusts the relative levels of the left and right channels.
•
Press [s] to shift the balance to the right or [a] to shift the balance to
the left. Use [a/s] also to recover or even out the balance levels.
•
The center level setting provides equal level to the left and right
channels.

ANALOG BYPASS

All analog signals remain in the analog domain without analog-to-digital
conversions.
On: DSP circuitry is bypassed but full tone control functions remain.
Off: Analog bypass feature is turned off.

AUTO SENSE

Auto Sense feature enables the C 658 to wake up from standby mode
when triggered by network connected App or active source input. Auto
Standby must be set to ON for Auto Sense to work.
On
• Unit wakes up from standby mode when triggered by network
connected App or active source input.
•
Except for analog input, the unit will power up to the Source that
activated the unit to operating mode.
•
When the unit is triggered by an active analog input, the unit will
always power up to Line 1.
Off
•
Unit remains at standby mode even if it is triggered by network
connected App or active source input.
Refer also to table below about "OPERATING MODE TRIGGER POINTS".
OPERATING MODE TRIGGER POINTS
SETTINGS OPERATING MODE TRIGGER
Auto Standby: On Unit switches back to operating mode by
Network Standby: On • resuming activity at network connected app
Auto Sense: On • an active source input
• pressing front panel Standby button or SR 9 remote
control's [ON] button
Auto Standby: On Unit switches back to operating mode by
Network Standby: Off • an active source input
Auto Sense: On • pressing front panel Standby button or SR 9 remote
control's [ON] button
Auto Standby: On • Unit remains at standby mode even if it is triggered by
Network Standby: network connected App or active source input
On/Off • Unit can only be switched back to operating mode by
Auto Sense: Off pressing front panel Standby button or SR 9 remote
control's [ON] button
OPERATION
USING C 658
15
