Useful when sensing object can be set

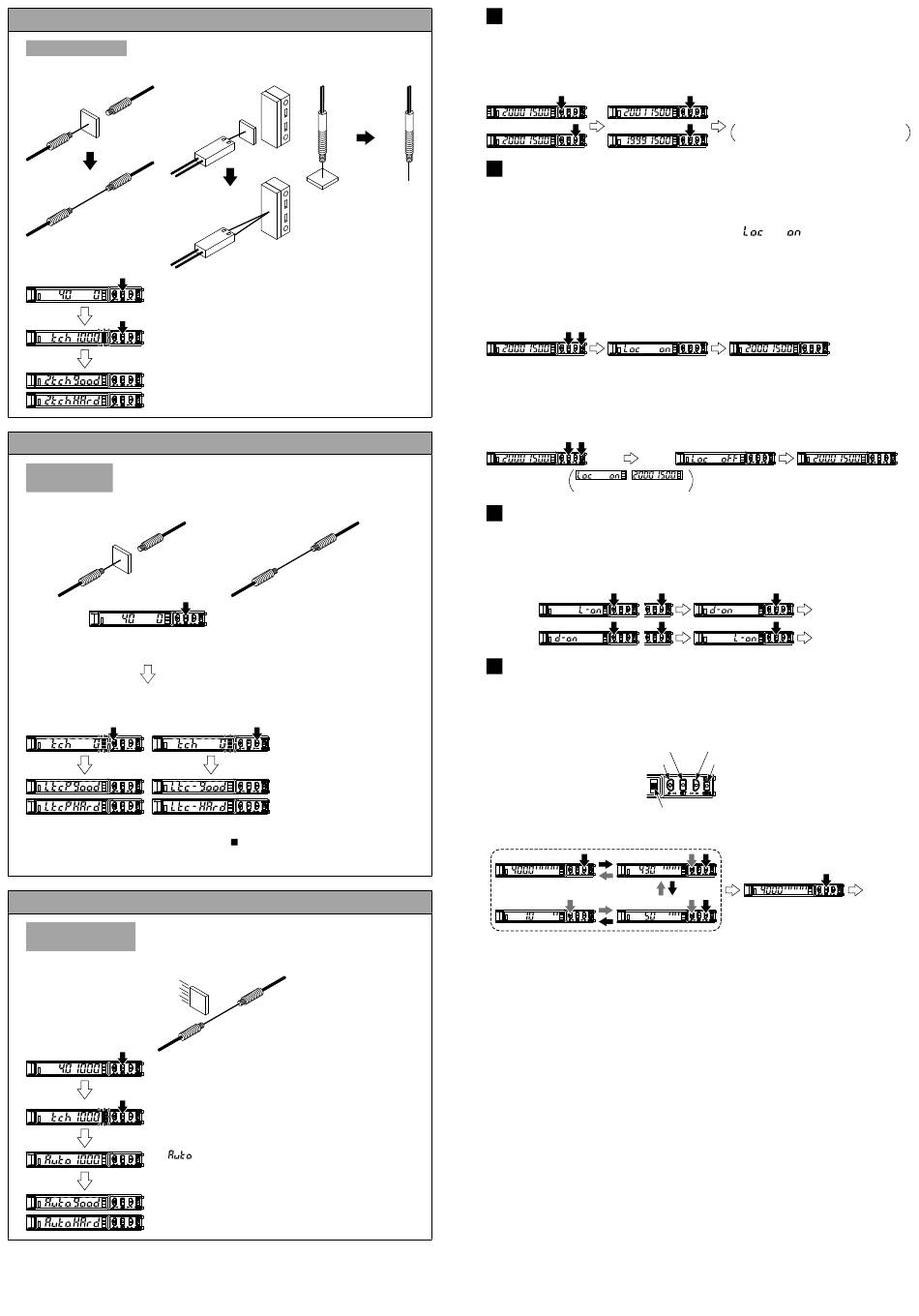

2-point teaching
This is basic teaching method.
<Thru-beam type>
<Mirror refl ection type>
1
1
2
2
1. Press the SET key in the sensing object present condition
(System command / Index2: 0x43)
2. Press the SET key in the sensing object absent condition
(System command / Index2: 0x44)
Stable sensing is possible
Stable sensing is not possible
Useful when sensing object cannot be set
This is teaching method in case small object or object in
Limit-teaching
back ground are existing.
<Common to thru-beam type, mirror refl ection type and refl ective type>
Note 1: The shift value of approx. 15% is an initial value. Display of the shift value can be changed to
percentage [approx. 0 to 999% (unit 1 %)] or incident light intensity [0 to 9999 (unit 1)].
For setting the shift amount, refer to <PRO1> in "
Note 2: At the time of limit teaching. UP key (System command / Index2: 0x4B)
DOWN key (System command / Index2: 0x4C)
Useful when not want to stop production line and to keep the sensing object move
This is method to conduct teaching doing sensing
Full-auto teaching
object is moving.
<Common to thru-beam type, mirror refl ection type and refl ective type>
1. Pressing SET key down
Pressing
down long
2. Run the sensing object on the line and hold down the SET
key
(System command / Index2: 0x47)
3. "
when the sensing object passed through, release the SET
key
(System command / Index2: 0x48)
Automatic
Stable sensing is possible
Stable sensing is not possible
<Refl ective type>
1
.
.
or
1. Press the SET key in the sensing object present
condition or non sensing object present condition.
2. Thru-beam type, mirror reflection
type: Threshold level is shifted to
high value (low sensitivity) when
UP key is pressed down, and it is
shifted to low value (high sensitivity)
when DOWN key is pressed down.
(Note 1) (Note 2)
Reflective type: Threshold level is
shifted to high value (low sensitivity)
when DOWN key is pressed down,
and it is shifted to low value (high
sensitivity) when UP key is pressed
down. (Note 1) (Note 2)
Stable sensing is possible
Stable sensing is not possible
PRO MODE ."
12
..
" is displayed on the digital display (green) and
..
8
THRESHOLD VALUE FINE ADJUSTMENT FUNCTION
● Set the fine adjustment of threshold value in RUN mode (And during IO-link
communication).
Press down
UP / DOWN key
2
9
KEY LOCK FUNCTION
● The key lock function prevents key operations so that the conditions set in each
setting mode are not inadvertently changed (It is also possible to set at IO-link
communication).
● If operating key switch after key lock is set, "
digital display.
<Set key lock>
Press down SET
+ MODE keys
simultaneously for
3 sec or longer
<Release key lock>
Press down SET
+ MODE keys
simultaneously for
3 sec or longer
10
SENSING OUTPUT OPERATION MODE
● When MODE indicator: L / D (yellow) lights up, sensing output operation can be
set (And during IO-link communication).
11
LIGHT SENSITIVITY SETTING MODE
● When the MODE indicator: CUST (yellow) lights up, light sensitivity setting can be
displayed (And during IO-link communication).
● By pressing down UP key or DOWN key, light sensitivity setting can be changed.
● Press SET key to confi rm the setting.
Press down UP / DOWN key
Press down
SET key
Confi rmed
Automatically set without pressing down SET
key in approx. 2 sec.
Automatic
,
are displayed
Press down
UP / DOWN key
SET key
DOWN key
UP key
MODE key
MODE indicator
CUST (Yellow)
" is indicated on the
Automatic
Press down
SET key
Confi rmed
Confi rmed
Press down
SET key
Confi rmed
