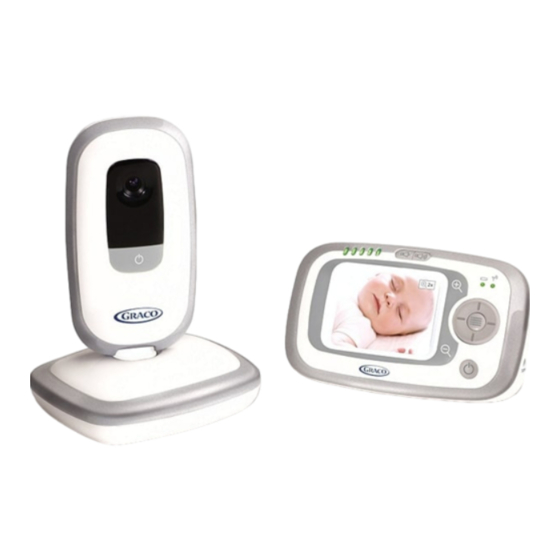

Graco True Focus 2V00 Owner's Manual

Hide thumbs Also See for True Focus 2V00:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

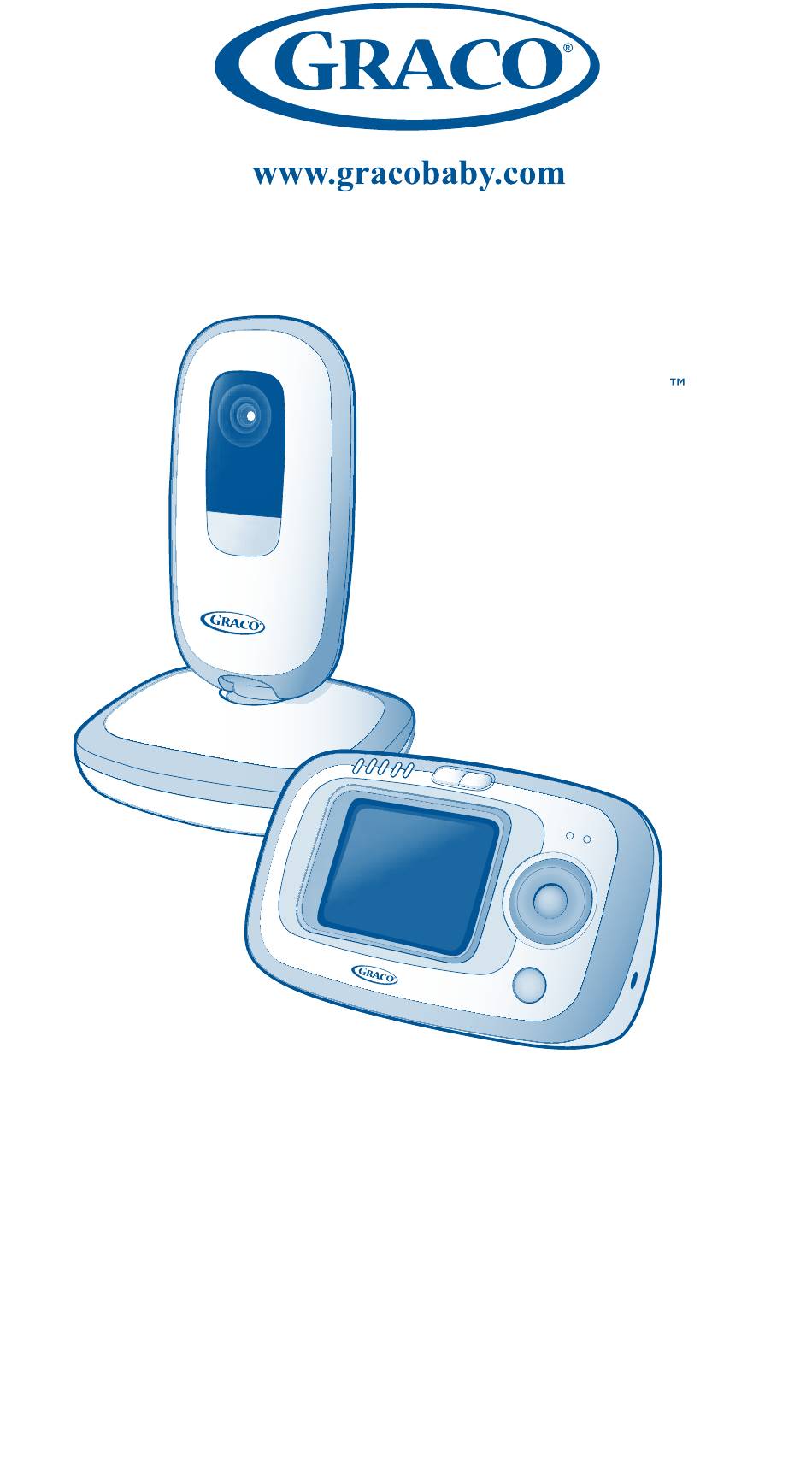

True Focus
Model 2V00
OWNER'S MANUAL
Keep Instructions For Future Reference
©2010 Graco PD141639A
5/10
US

Advertisement

Table of Contents
loading

Related Manuals for Graco True Focus 2V00

Summary of Contents for Graco True Focus 2V00

  • Page 1 True Focus Model 2V00 OWNER’S MANUAL Keep Instructions For Future Reference ©2010 Graco PD141639A 5/10...

  • Page 2: Warnings To Parents And Other Users

    Warnings to Parents and Other Users Failure to follow these warnings and the assembly instructions could result in serious injury or death. This device is designed to aid in the monitoring of your child. When using the monitor, you must still provide the supervision necessary for the continued safety of your child.
  • Page 3 • DO NOT place unit near water and moisture. Do not use the Nursery Unit outdoors. Do not use the Nursery Unit near possible wet areas, such as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc. •...
  • Page 4 These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

  • Page 5: Parts List

    Parts List Adult assembly required. Tool required: Phillips screwdriver (1) Parent Unit Battery Parent Unit (PD141402) (1) AC Adapter (1) AC Adapter Nursery Unit (PD141481)

  • Page 6: Parent Unit

    Parent Unit Belt Clip DC Adapter Jack Battery Compartment Zoom Volume Up/Down Battery Status Indicator SoundLights Signal Strength Indicator Navigation buttons Menu Zoom Out Power...

  • Page 7: Installing Batteries

    Installing Batteries • The battery must be plugged into the Parent Unit before the unit will be ready for use. Use a Phillips head screwdriver to remove the battery door. NOTE: Screw should be loosened but stay attached to battery door. Remove the battery pack from the packaging and plug into the back of the unit.
  • Page 8 AC adapters, plug the connector on the cord into the DC adapter jack on the side of the Parent Unit. Then plug adapter into a standard wall outlet. • Use ONLY the Graco adapters included with the unit. Do not use these adapters with other equipment under any circumstances.

  • Page 9: Nursery Unit

    Nursery Unit Camera Power DC Adapter Jack Battery Compartment...

  • Page 10: Battery Installation

    Battery Installation Use a Phillips head screwdriver to remove the battery door. NOTE: Screw should be loosened but stay attached to battery door. Insert 3-AA (1.5V-LR03) batteries. Make sure they are inserted correctly. • Batteries will power the Nursery Unit in the event of a power outage.
  • Page 11 Nursery Unit. Then plug adapter into a standard wall outlet. ● Use ONLY the Graco adapters included with the unit. Do not use these adapters with other equipment under any circumstances. ● If units do not work, check that AC adapters are plugged into working outlets.
  • Page 12 Static Cling Labels Remove and discard static cling labels.
  • Page 13 Setting Up the Baby Monitor NOTE: It is very important that the steps below be followed for first time power-up. ● Place the Nursery Unit within 10 feet (3 meters) of your baby. Plug an AC adapter into the jack on the back of the Nursery Unit.

  • Page 14: Testing The System

    When a new baby unit is detected, the “Camera Detected” message displays on the screen of the Parent Unit. The video feed does not Cam 1: Detected change. The message fades away after 3 seconds. Testing the System It is VERY IMPORTANT to test the system when first set up, and at regular times thereafter.
  • Page 15 Nursery Unit Power On/Off Depress button for 1 sec. to turn camera on. To change camera angle, swivel the nursery unit in the desired direction. 15 15...
  • Page 16 Nursery Unit. Make sure Nursery Unit is turned on. The parent unit will display the Graco logo on the status screen until the nursery unit is found. The live video feed will then be shown.
  • Page 17 Press and hold ON/OFF button for 1 second to turn unit off. To activate or deactivate the live video feed, press the video button. Pressing the video but- ton will allow the user to view the image from the nursery unit.
  • Page 18 To set up preferences or change status, press the “MENU” button. To cycle through the different choices, press up or down. After choosing one of the options, press the “MENU” button to make the selection. NOTE: Once you make a selection (MENU), the unit will automatically advance you to the next option/screen or return you to the live video feed (if applicable).
  • Page 19 Zoom Press button to Zoom In on baby. Zooms in on the center of the video feed one level. The zoom levels are 1x and 2x. Press button to Zoom In on baby. Zooms out on the center of the video feed one level.
  • Page 20 Brightness The brightness for the LCD ranges from 0% to Brightness 100%, in 10% Contrast increments. Screen Timeout Camera Cam 1 The default value is 50%. Language English Press Menu to Exit Brightness Decreases the Contrast brightness level by 10%. Screen Timeout Camera Cam 1...
  • Page 21 Contrast The contrast for the LCD ranges from 0% to 100%, Brightness in 10% increments. Contrast The default value is 50%. Screen Timeout Camera Cam 1 Language English Press Menu to Exit Brightness Decreases the contrast Contrast level by 10%. If the con- Screen Timeout Cam 1 Camera...

  • Page 22: Screen Timeout

    Screen Timeout The Screen Timeout settings for the LCD are Brightness Off, 15 sec, 30 sec, and Contrast 60 sec. Screen Timeout The default value is 15 Camera Cam 1 Language English sec. Press Menu to Exit Decreases the Screen Brightness Contrast Timeout.

  • Page 23: Parent Unit

    Camera The video feed settings are Cam 1, Cam 2, Cam 3, and Brightness Contrast Cam 4. The left/right Screen Timeout arrows in the menu only Camera Cam 1 Language English appear if more than one Press Menu to Exit baby unit is paired with the parent unit.
  • Page 24 To remove one of the Brightness Contrast cameras from the system, Screen Timeout scroll down to “Camera” Camera Cam 1 Language English field. Press Menu to Exit Brightness Contrast Use left/right scroll to Screen Timeout choose Camera you wish to Cam 1 Camera Language...
  • Page 25 Language The language settings are English, French, Brightness and Spanish. The default Contrast Screen Timeout setting is English. Camera Cam 1 Language English Press Menu to Exit Moves back to the Brightness Contrast previous language. If the Screen Timeout first language is reached, Cam 1 Camera Language...

  • Page 26: Volume Up/Down

    Volume Up/Down Adjust the volume on the Parent Unit by pressing the Volume Up/ Down buttons. This indicator disappears after a 2 second timeout. Note that the Sound Lights LEDs illuminate as the volume button is pressed up or down to provide a visual feedback for the volume level.

  • Page 27: Battery Information

    Battery Information Parent Unit Battery Level When the battery is low in the Parent Unit, the low battery light blinks red on and off. The Parent Unit beeps once every minute. When battery is charging, LED blinks green on and off.
  • Page 28 The Battery Icon shows how much power is left in the batteries: Low Battery • When the parent unit is low on battery, a “Low Battery” message shows on the screen. The video feed does not change. The message fades away after 3 seconds.
  • Page 29 Nursery Unit Backup Batteries • When the batteries are low in the Nursery Unit, the power LED will change from green to red. You may also experience a poor signal and the connection light on the Parent Unit blink red on and off and the Parent Unit beeps once every minute.

  • Page 30: Signal Strength Indicator

    Signal Strength Indicator • If the Parent Unit begins to lose the signal from the Nursery Unit, connection light blink red on and off and the Parent Unit beeps once every minute. Additionally, the “Lost Signal” message will come up on the screen.

  • Page 31: Troubleshooting

    Trouble Shooting Most problems have a simple solution. First, check that: • Power is turned ON for both units • Both units are plugged in (or batteries are fresh in Nursery Unit and fully charged in Parent Unit) • Electrical outlet works •...
  • Page 32 • Nursery Unit too far from baby — move closer. • Parent Unit too far from Nursery Unit — move them closer. • Large objects blocking the signal — try repositioning Nursery Unit. • Volume setting too low — turn it up. •...
  • Page 33 Pairing the Parent Unit and Child Unit To ensure privacy, your Parent Unit is paired with your Nursery Unit at the factory. Your Parent Unit will not work with any other Nursery Units. If your Parent Unit won’t lock onto your Nursery Unit, or you purchased a new Parent Unit or Nursery Unit, follow the procedure below to pair the Parent Unit and Nursery Unit.
  • Page 34 2. Pair the Parent Unit with the Nursery Unit • If the Parent Unit is not on, turn it on now. • The Parent Unit will display “Looking for a Nursery Unit to pair with. Turn on your Nursery Unit now.” •...
  • Page 35 Notes...
  • Page 36 150 Oaklands Blvd. Exton, PA 19341 www.gracobaby.com 1-800-345-4109 Product Registration (USA) To register your Graco product from within the U.S.A. visit us online at www.gracobaby.com/productregistration. We currently do not accept product registrations from those living outside the United States of America...
