Summary of Contents for Hoshizaki Steelheart Series

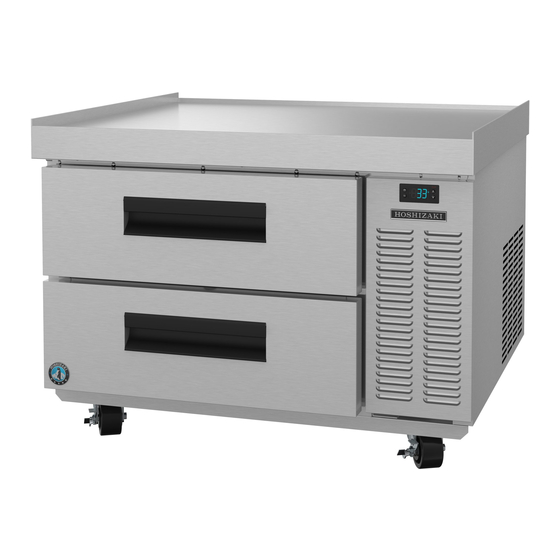

- Page 1 Instruction Manual Steelheart Series Refrigerated Kitchen Equipment Models Refrigerated Equipment Stand hoshizakiamerica.com Issued: 5-22-2018 Revised: 10-31-2018...
- Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, send an e-mail message, or write to the Hoshizaki Technical Support Department for assistance. Phone: 1-800-233-1940; (770) 487-2331 Fax: 1-800-843-1056;...
-
Page 3: Table Of Contents
IMPORTANT This manual should be read carefully before the appliance is installed and operated. Read the warnings and guidelines contained in this manual carefully as they provide essential information for the continued safe use and maintenance of the appliance. Retain this manual for any further reference that may be necessary. CONTENTS Important Safety Information .................... -
Page 4: Important Safety Information
Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. Indicates a hazardous situation that, if not avoided, will result in DANGER death or serious injury. - Page 5 • THE APPLIANCE MUST BE WARNING GROUNDED. The appliance is equipped The appliance should be destined with a NEMA 5-15 three-prong grounding only to the use for which it has been plug to reduce the risk of potential expressly conceived. Any other use shock hazards.
- Page 6 • For cooking equipment on the cabinet, do WARNING, continued not exceed the total maximum weight listed • Children should be properly supervised for your model. around the appliance. Total Maximum Weight for Cooking • Do not climb, stand, or hang on the Equipment on the Cabinet appliance or drawers or allow children or CR36A...
- Page 7 NOTICE WARNING, continued • Protect the floor when moving the • Do not store items near air outlets. appliance to prevent damage to the floor. Otherwise, items may freeze up and crack or break causing a risk of injury or •...
-
Page 8: Installation Instructions
I. Installation Instructions WARNING • The appliance must be installed in accordance with applicable national, state, and local regulations. • Appliance is heavy. Use care when lifting or positioning. Work in pairs when needed to prevent injury or damage. Do not lift using the top section or the drawers. •... -
Page 9: Checks Before Installation
B. Checks Before Installation WARNING The rating label and nameplate provide electrical and refrigerant data. The rating label can be seen by removing the front panel. The nameplate is located on the rear panel. For certification marks, see the nameplate. For electrical connection details, see "I.D. Electrical Connection."... -
Page 10: Electrical Connection
3. Position the Appliance and Lock All Casters All casters on the appliance are lockable. After positioning the appliance in its final location, lock all casters. D. Electrical Connection WARNING • Electrical connection must meet national, state, and local electrical code requirements. -
Page 11: Final Checklist
E. Final Checklist 1) Have the appliance and accessories been checked for shipping damage? 2) Is the appliance level? Have all casters been locked? 3) Is the appliance in a site where the ambient temperature is within 45°F to 100°F (7°C to 38°C) all year around? 4) Have the shipping carton, tape, and packing material been removed from the appliance? Has the protective plastic film been removed from both the exterior panels... -
Page 12: Operating Instructions
II. Operating Instructions A. Important Notes About Usage DANGER Risk of Fire or Explosion Flammable Refrigerant Used • Do not use mechanical devices to defrost. • Do not puncture refrigerant tubing. Risk of fire or explosion due to puncture of refrigerant tubing;... - Page 13 • The appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 14 NOTICE • Protect the floor when moving the appliance to prevent damage to the floor. • Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Blockage of airflow could negatively affect performance and damage the appliance.
-
Page 15: Startup
B. Startup WARNING All parts are factory-adjusted. Improper adjustments may adversely affect safety, performance, component life, and warranty coverage. Allow the appliance to cool down prior to loading it with food products. 1) Plug the appliance into the electrical outlet. WARNING! To reduce the risk of electric shock, do not touch the plug with damp hands. -
Page 16: Adjusting The Temperature Setpoint
2. Adjusting the Temperature Setpoint The temperature setpoint is the value for the average cabinet temperature. The temperature differential for the compressor to turn on and off is ±3°F (±1.7°C) of the temperature setpoint. For example, for a refrigerator temperature setpoint of 36°F (2°C), the compressor comes on at 39°F (3.7°C), and the compressor goes off at 33°F (0.3°C). -
Page 17: Defrost
E. Defrost DANGER Risk of Fire or Explosion Flammable Refrigerant Used • Do not use mechanical devices to defrost. • Do not puncture refrigerant tubing. Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. Risque De Feu Ou D'Explosion Le Frigorigène Est Inflammable •... -
Page 18: Alarm Safeties
F. Alarm Safeties Alarm signals are designed to protect the appliance and food product. These alarms give information or warnings in the event the appliance is operating out of acceptable parameters. Should one of the alarms occur, follow the instructions in the table below to address the alarm. -
Page 19: Food Storage
There is a 2-minute minimum off-time and on-time for the compressor. Note: Time may vary with compressor overload or high-pressure switch activation. 3. High-Pressure Switch If high-side refrigeration pressure exceeds Hoshizaki specifications, the high-pressure switch activates and de-energizes the compressor circuit until the refrigeration pressure returns to an acceptable level. -
Page 20: Cooling Performance
I. Cooling Performance Be sure the appliance is properly installed and located for optimum cooling performance. If cooling performance is not at its optimum level, check the following items: • Drawers opened too often. • Drawers left open. Close. • Cabinet too tightly packed or air inlets/outlets blocked. Allow some space between items to ensure good air flow. -
Page 21: Cleaning And Maintenance Instructions
III. Cleaning and Maintenance Instructions A. Cleaning WARNING • Unplug the appliance before cleaning to prevent electric shock by unexpected entrance of water into the appliance or injury by moving parts. To reduce the risk of electric shock, do not touch the plug with damp hands. •... - Page 22 4. Drawers Drawers and drawer slides are removable. • To remove a drawer: Remove all items from the drawer. Pull the drawer out to its fully extended position. Open the safety clips (one on each side) by sliding them forward. See Fig.
-
Page 23: Maintenance
2. Power Supply Connection If the plug or power cord is damaged, contact your local Hoshizaki service representative or local Hoshizaki distributor immediately and ask for repairs. All other maintenance or service on the appliance should be performed in accordance... -
Page 24: Preparing The Appliance For Periods Of Non-Use
IV. Preparing the Appliance for Periods of Non-Use When shutting down the appliance for more than one week, follow the instructions below. WARNING When preparing the appliance for long storage, prevent the drawers from closing to reduce the risk of children getting trapped. NOTICE When preparing the appliance for long storage, clean the appliance. -
Page 25: Disposal
V. Disposal DANGER Risk of Fire or Explosion Flammable Refrigerant Used • Follow handling instructions carefully in compliance with U.S. government regulations. • Do not puncture refrigerant tubing. Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. •... - Page 26 618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) 770.487.2331 (F) 770.487.3360 hoshizakiamerica.com 1A5170-012...
