Hoshizaki Steelheart Series Service Manual

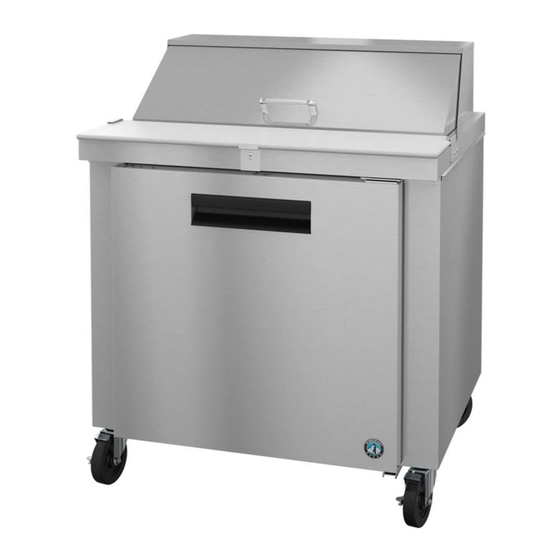

Refrigerated kitchen equipment. undercounter,worktop,prep table.
Hide thumbs Also See for Steelheart Series:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Instruction Manual
Service Manual
Steelheart Series
Refrigerated Kitchen Equipment
Models
Undercounter
Worktop
Prep Table
hoshizakiamerica.com
Number: 73217
Issued: 11-2-2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Steelheart Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoshizaki Steelheart Series

Summary of Contents for Hoshizaki Steelheart Series

  • Page 1 Service Manual Steelheart Series Refrigerated Kitchen Equipment Models Undercounter Worktop Prep Table Number: 73217 hoshizakiamerica.com Issued: 11-2-2018...
  • Page 2 Hoshizaki provides this manual primarily to assist qualified service technicians in the service of the appliance. Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, send an e-mail message, or write to the Hoshizaki Technical Support Department for assistance. Phone: 1-800-233-1940; (770) 487-2331 Fax: 1-800-843-1056;...

  • Page 3: Table Of Contents

    IMPORTANT This manual should be read carefully before the appliance is serviced. Read the warnings and guidelines contained in this booklet carefully as they provide essential information for the continued safe use, service, and maintenance of the appliance. Retain this booklet for any further reference that may be necessary. CONTENTS Important Safety Information ....................

  • Page 4: Important Safety Information

    Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. Indicates a hazardous situation that, if not avoided, will result in DANGER death or serious injury.
  • Page 5 • THE APPLIANCE MUST BE WARNING GROUNDED. The appliance is equipped The appliance should be destined only to with a NEMA 5-15 three-prong grounding the use for which it has been expressly plug to reduce the risk of potential conceived. Any other use should be shock hazards.
  • Page 6 • Do not block air inlets or outlets, otherwise WARNING, continued cooling performance may be reduced. • Children should be properly supervised • Do not tightly pack the cabinet. Allow some around the appliance. space between items to ensure good air •...
  • Page 7 NOTICE WARNING, continued • Protect the floor when moving the Additional Warnings for Prep Table appliance to prevent damage to the floor. Models • Keep ventilation openings, in the • The entire rail must always be covered appliance enclosure or in the built-in by rail dividers and pans (1/6 size, up structure, clear of obstruction.

  • Page 8: Construction And Refrigeration Circuit Diagram

    I. Construction and Refrigeration Circuit Diagram A. Construction Undercounter, Worktop, Prep Table Common Parts • Evaporator • Evaporator Fan • Evaporator Fan Shroud Nameplate Thermometer Door Cabinet Temperature Control Dial Door Gasket Model Shown: UF60A Control Module Cover Control Condenser Module Condenser Fan Motor Rear Panel...

  • Page 9: Refrigeration Circuit Diagram

    B. Refrigeration Circuit Diagram Condenser Condenser Fan Drier High-Pressure Switch Capillary Tube Compressor Evaporator Fans (1, 2, or 3 depending on model) Evaporator Cabinet Thermostat Bulb Prep Table and Freezer Models: Defrost Heater, Defrost Safety Thermostat, and Defrost Thermistor...

  • Page 10: Sequence Of Operation And Service Diagnosis

    II. Sequence of Operation and Service Diagnosis The steps in the sequence are as outlined below. See the table for default cabinet temperature control settings. Model Default Cabinet Temperature Approximate Default Temperature Control Setting Undercounter Between 4 and 5 Refrigerator: 34°F (1°C) Worktop Freezer: -5°F (-21°C) Prep Table...

  • Page 11: Prep Table: Refrigerator

    2. Prep Table: Refrigerator...

  • Page 12: Undercounter And Work Top: Freezer

    3. Undercounter and Work Top: Freezer...

  • Page 13: Service Diagnosis

    B. Service Diagnosis Risque De Feu Ou D'Explosion DANGER Le Frigorigène Est Inflammable Risk of Fire or Explosion • Suivre attentivement les instructions Flammable Refrigerant Used de manipulation conformément à la • Follow handling instructions carefully réglementation gouvernementale. in compliance with U.S. government •...
  • Page 14 The diagnostic procedure is a sequence check that allows you to diagnose the electrical system and components. Before proceeding, check for correct installation and proper voltage per nameplate. See the table for default cabinet temperature control settings. Model Default Cabinet Temperature Approximate Default Temperature Control Setting Undercounter...
  • Page 15 c) CM Diagnosis: Confirm green LED is flashing. If not, check for 115VAC between CM 2 (L) black (BK) wire and CM 3 (N) neutral white (W) wire. If 115VAC is not present, check power cord connections and breaker/fuse. Confirm wiring connections are secure for both CM 2 (L) black (BK) (power supply) and CM 3 (N) white (W) (neutral).
  • Page 16 6) Defrost–Manually initiated defrost, off cycle defrost, and time-initiated temperature-terminated heated defrost. 1a) Manually-Initiated (All): Turn the TD all the way to the right. Wait 1 to 3 sec. then back to original setting. Defrost initiated. If defrost does not initiate, wait 1 to 2 min. and repeat process.
  • Page 17 Defrost Diagnosis: 1) Manual-Initiation: TD rotated to max. position and back. Prep Table 6-hr. DT or Freezer 8-hr. DT terminates. After rotating TD several times and defrost still not activated, wait 1 to 2 min. and repeat process. Replace TD as needed. (2) CM Diagnosis: Confirm DH energizes (if applicable) and Comp, ConFM, and EvapFM (if applicable) de-energize.

  • Page 18: Control Module Check

    C. Control Module Check 1. Control Module Before replacing a CM that does not show a visible defect and that you suspect is bad, conduct the following check procedure. This procedure will help you verify your diagnosis. Always choose a neutral (W) to establish a good power supply and neutral connection to CM: 115VAC at CM 2 (L) (BK) 2.
  • Page 19 4. Defrost Termination 8) Check that all components restart after defrost termination. a) UC/WT Refrigerator: CTh above setpoint. Cool cycle starts. Comp, ConFM, and EvapFM energize. b) Prep Table: DTh warms to 46°F (7.7°C). DH de-energizes. Confirm continuity of DTh. Replace as needed.

  • Page 20: Diagnostic Table

    D. Diagnostic Table Before consulting the diagnostic tables, check the following: • Check the cabinet temperature control setting. See the table for default cabinet temperature control settings. Model Default Cabinet Temperature Approximate Default Temperature Control Setting Undercounter Between 4 and 5 Refrigerator: 34°F (1°C) Worktop Freezer: -5°F (-21°C)
  • Page 21 1. Appliance Not Cooling Appliance Not Cooling - Possible Cause Power Supply Unplugged, blown fuse, or tripped or defective circuit breaker. Loose connection. Not within specifications. Power Supply Cord and Plug Loose connection. Defective. Wiring Loose connection or open. Faulty. Cabinet Thermostat or Cabinet Loose, disconnected, or defective.
  • Page 22 2. Evaporator is Frozen Up Evaporator is Frozen Up - Possible Cause Evaporator Dirty. Evaporator Fan Motor Defective. Fan blade binding. Refrigerant Charge Low. Defrost Heater (if applicable) Defective. Defrost Timer or Control Module Defective. (if applicable) Defrost Safety Thermostat Open Defective.

  • Page 23: Controls And Adjustments

    III. Controls and Adjustments A. Temperature Settings 1. Temperature Reading A thermometer with both °F and °C scales is mounted in the cabinet. See Fig. 1. 2. Cabinet Temperature The appliance features a cabinet temperature control dial (TD). The warmest setting is 1 and the coldest setting is 7.
  • Page 24 2. Prep Table and Freezer Temperature/Time-Initiated Defrost Cycle: Defrost cycle occurs once every 6 hrs. for prep tables or 8 hrs. for freezers when defrost initiation temperature achieved (50 F (10 C) for ° ° Prep Tables or 41 F (5 C) for the Freezers).

  • Page 25: Safety Devices

    2. High-Pressure Switch If pressure on the high-side of the appliance exceeds Hoshizaki specifications, the high-pressure switch activates and interrupts the compressor circuit, de-energizing the compressor until the pressure returns to an acceptable level.

  • Page 26: Refrigeration Circuit And Component Service Information

    IV. Refrigeration Circuit and Component Service Information DANGER Risk of Fire or Explosion Flammable Refrigerant Used • Follow handling instructions carefully in compliance with U.S. government regulations. • Do not use mechanical devices to defrost. • Do not puncture refrigerant tubing. Risk of fire or explosion due to puncture of refrigerant tubing;...
  • Page 27 WARNING • Wear appropriate personal protective equipment (PPE) when servicing the appliance. • Technician must utilize a combustible gas leak detector at all times. • Notify everyone in the immediate area that you are working with flammable refrigerant. • Do not work on appliance in a confined space. Confirm area is well ventilated. •...

  • Page 28: Refrigeration Circuit Service Information

    A. Refrigeration Circuit Service Information WARNING • Repairs requiring the refrigeration circuit to be opened must be performed by properly trained and EPA-certified service personnel. • Use an electronic leak detector or soap bubbles to check for leaks. Add a trace of refrigerant to the system (if using an electronic leak detector), and then raise the pressure using nitrogen gas (140 PSIG).
  • Page 29 2. Brazing DANGER Risk of Fire or Explosion Flammable Refrigerant Used • Servicing shall be done by factory authorized service personnel to minimize the risk of possible ignition due to incorrect parts or improper service. Risque De Feu Ou D'Explosion Le Frigorigène Est Inflammable •...
  • Page 30 5) Disconnect the gauge manifold hose from the vacuum pump and attach it to a refrigerant service cylinder. Remember to loosen the connection and purge the air from the hose. For the required refrigerant charge, see the nameplate. Hoshizaki recommends only virgin or reclaimed refrigerant which meets ARI Standard 700 (latest edition) be used.

  • Page 31: Component Service Information

    B. Component Service Information NOTICE When replacing a component listed below, see the notes to help ensure proper operation. Component Notes Compressor Install a new start relay and compressor external protector. WARNING! To reduce the risk of electric shock, be sure to reconnect the compressor's ground wire. Thermostatic •...

  • Page 32: Preparing The Appliance For Periods Of Non-Use

    V. Preparing the Appliance for Periods of Non-Use When shutting down the appliance for periods of non-use, follow the instructions below. WARNING Prevent the doors from closing to reduce the risk of children getting trapped. NOTICE Clean the cabinet interior, door gaskets, and shelves. 1) Before shutting down the appliance, move the stored food into another refrigerator or freezer.

  • Page 33: Disposal

    VI. Disposal DANGER Risk of Fire or Explosion Flammable Refrigerant Used • Follow handling instructions carefully in compliance with U.S. government regulations. • Do not puncture refrigerant tubing. Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. •...

  • Page 34: Technical Information

    VII. Technical Information A. Electrical and Refrigerant Data Design Pressure (PSIG) Refrigerant (oz.) AC Supply Model (includes drawer models) Voltage Amperes HIGH LOW R290 U/WR27A(-xxx) 115/60/1 UR27A-GLP01 U/WF27A(-xx) UF27A-LP 115/60/1 UF27A-GLP01 SR27A-(xxxxx) 115/60/1 U/WR36A(-xx) 115/60/1 SR36A(-xxx) 115/60/1 U/WR48A(-01) 115/60/1 U/WR48A-D2(-D4) UR48A-GLP01 115/60/1 U/WF48A(-xx)

  • Page 35: Wiring Diagrams

    B. Wiring Diagrams 1. Undercounter and Worktop: Refrigerator...

  • Page 36: Prep Table

    2. Prep Table...

  • Page 37: Undercounter And Work Top: Freezer

    3. Undercounter and Work Top: Freezer...
