Alpine X009-WRA Installation Manual page 13

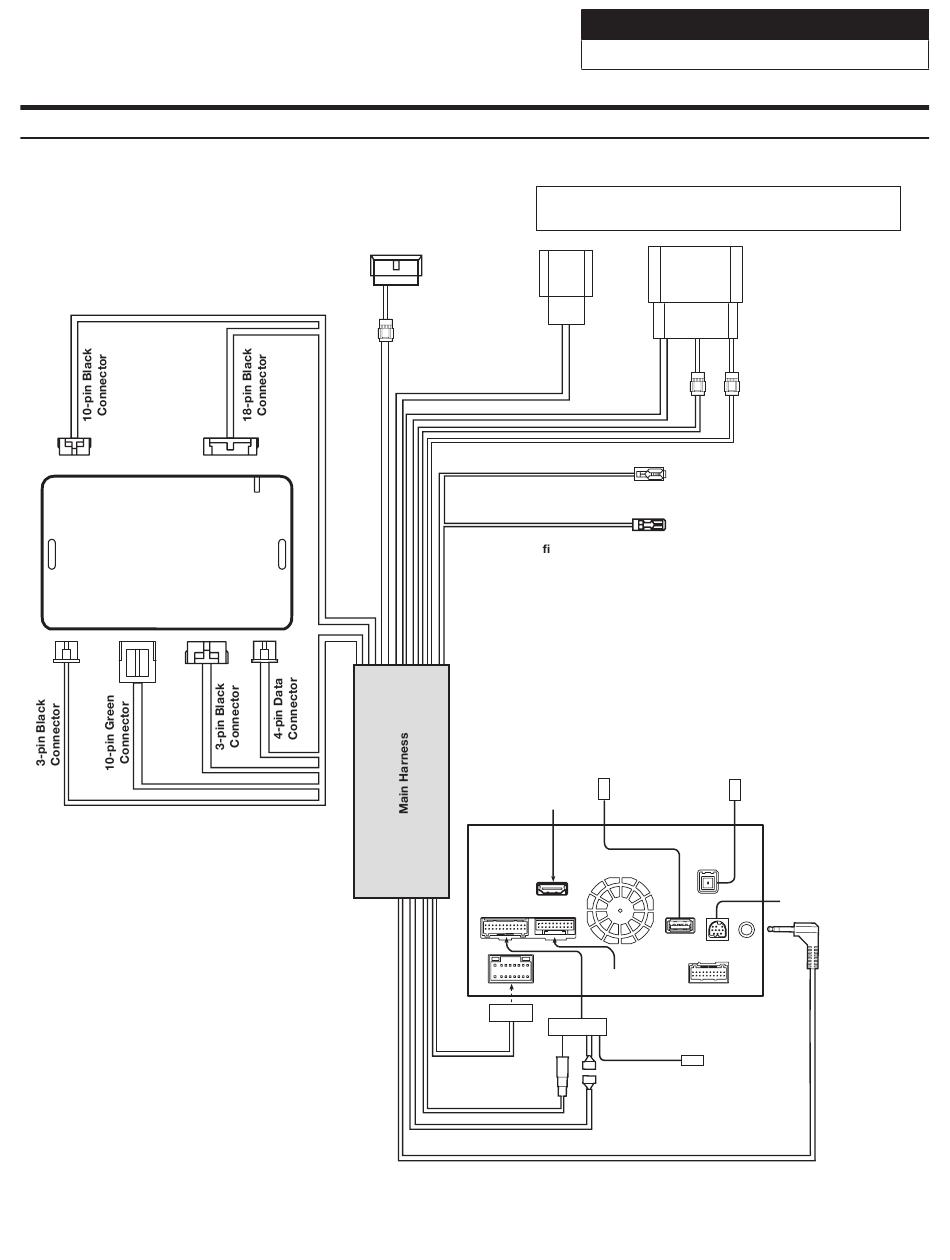

X009-WRA System Wiring
iDatalink MAESTRO Module
To ODB II
Connector
(2-pin Black Connector)
Blue Power Antenna
Blue/White Amp Turn-on
(Use only with aftermarket
HDMI Input
X009
Power
Harness
Speed Pulse
4-pin Data Connector
WRANGLER
To Vehicle Connectors
(Not used)
ampli ers)
USB Extension
Cable
Aux
X009 Head Unit
X009-WRA
Key Panel
X009 Camera
Harness
Green/
White
Camera Input
Jeep Wrangler
˜ 13/13
GPS Antenna
To SXM
3.5 Mini plug
