Alpine DPR-RDS1 Owner's Manual

Fm radio interface for ipod and iphone

Download this manual

This Package Contains the Following:

DPR-RDS1

Antenna

iPod dock cable

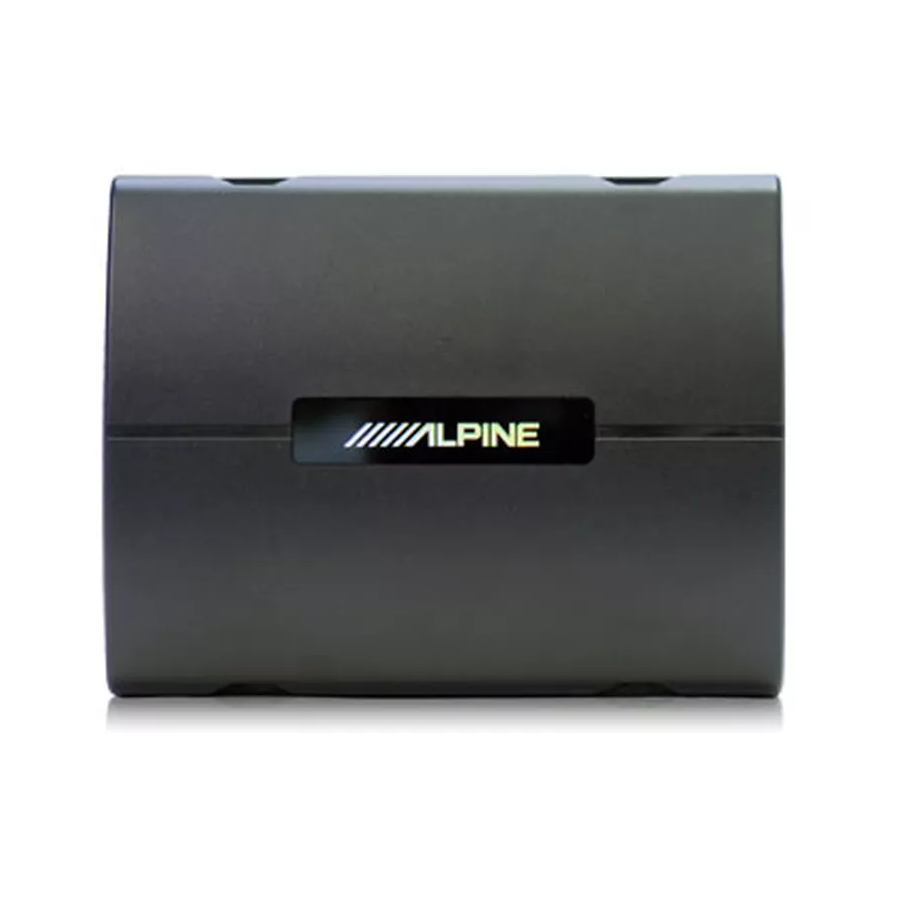

Interface Unit

Power Harness

Need help?

Do you have a question about the DPR-RDS1 and is the answer not in the manual?

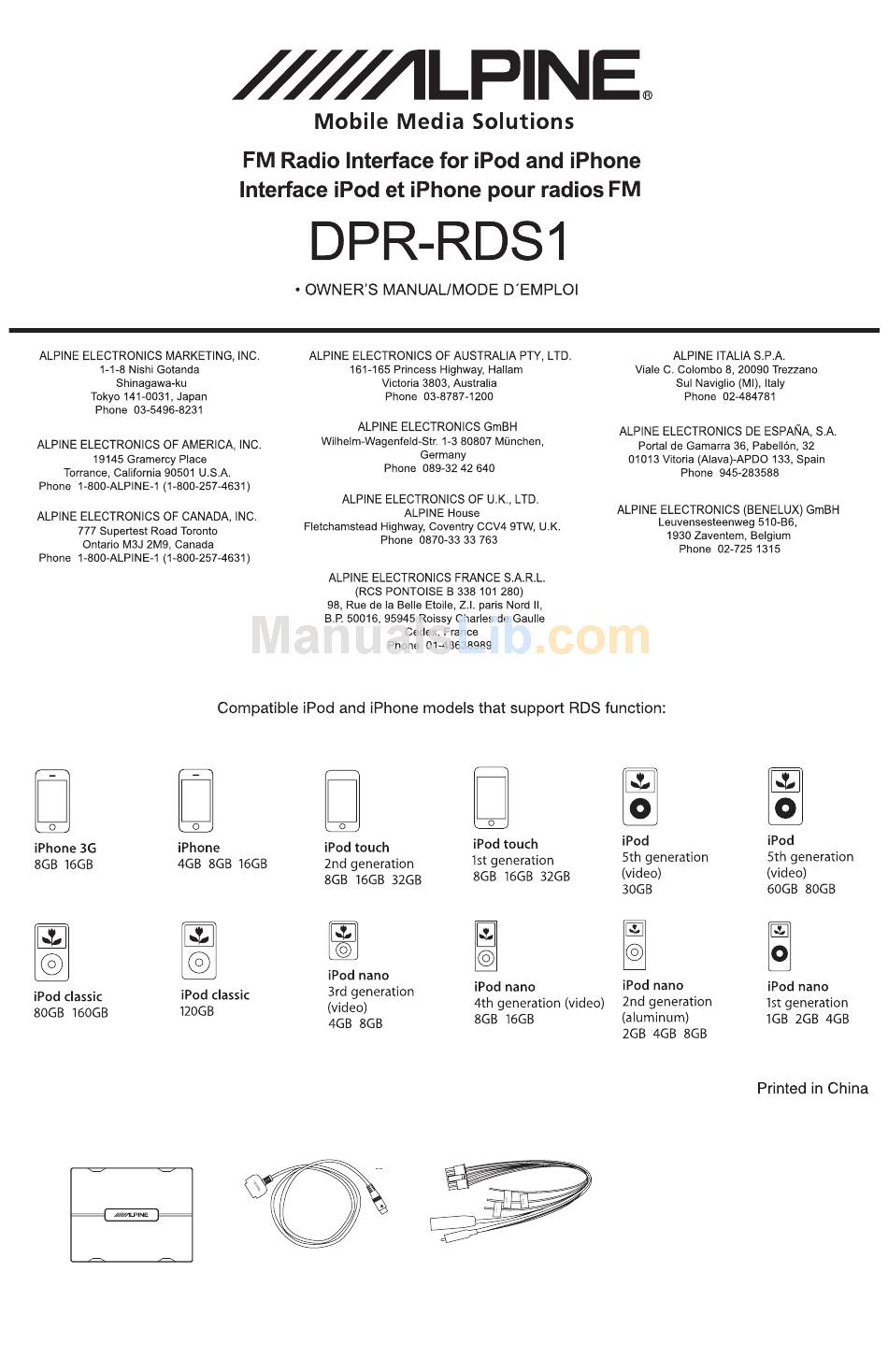

Page 1 This Package Contains the Following: DPR-RDS1 Antenna iPod dock cable Interface Unit Power Harness...
Page 2 Step 1: Set the DPR-RDS1’s FM transmission frequency The frequency selector switch is located on the interface unit and is used to set the optimal transmitting frequency. Incorrect dip switch settings may cause the interface not to work properly or not to operate at all.
Page 3 Step 3: Install the DPR-RDS1 in the vehicle (continued) 4. You can access the factory antenna port located on the back of the radio. If the factory antenna cable is connected, unplug it and plug the universal antenna connector into the receptacle.
Page 4: About Rds
Using the DPR-RDS1 Select the FM radio source on the radio and tune to the frequency that was selected on the interface unit. As soon as the radio is tuned to the appropriate frequency, audio from the iPod will be heard.
