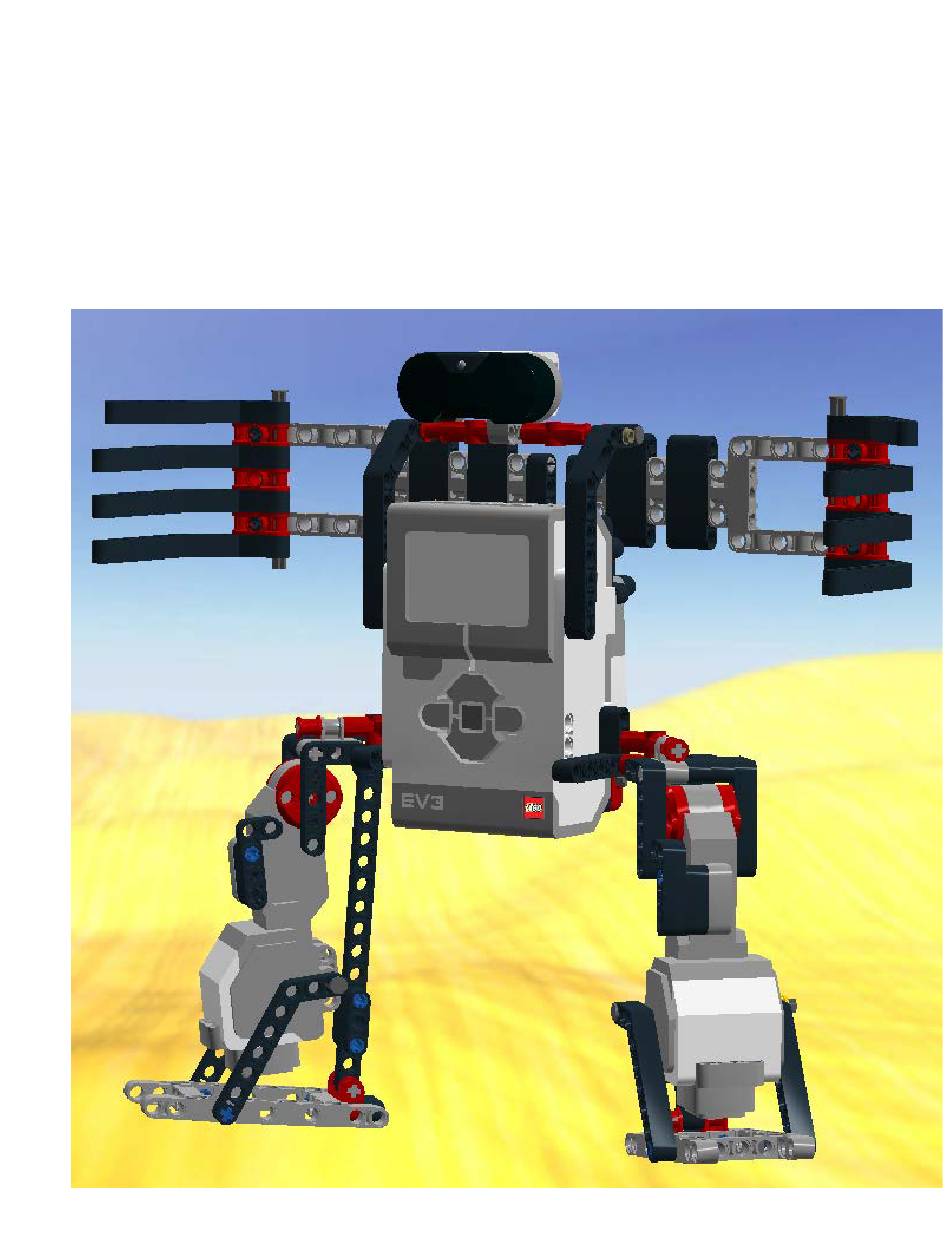

- Page 1 LEGO Mindstorms EV3 BASK3TBALL Robot Build Instructions...
- Page 2 Body...
- Page 24 Before Next Step: Route 4 wires (1 x 25cm, 1 x 35cm, 2 x 50cm) along the back side of the EV3 brick. The next 2 pieces will secure the wires in place.
- Page 26 Arms...
- Page 38 Arm Control Motor...
- Page 42 Attach arms and small motor assembly.
- Page 43 Right Leg...
- Page 59 Left Leg...
- Page 78 Slide legs into position and secure with red cross axle couplings.
- Page 79 Connect Wires: 25cm Wire from EV3 Infrared Sensor --> EV3 Brick Port 2 35cm Wire from Medium Motor EV3 Brick Port A (Route behind medium motor) 50cm Wire from Left Leg large motor EV3 Brick Port C 50cm Wire from Right Leg large motor EV3 Brick Port B (Route 50cm Wires behind 8cm leg pins and behind medium motor)
- Page 80 Parts List...
