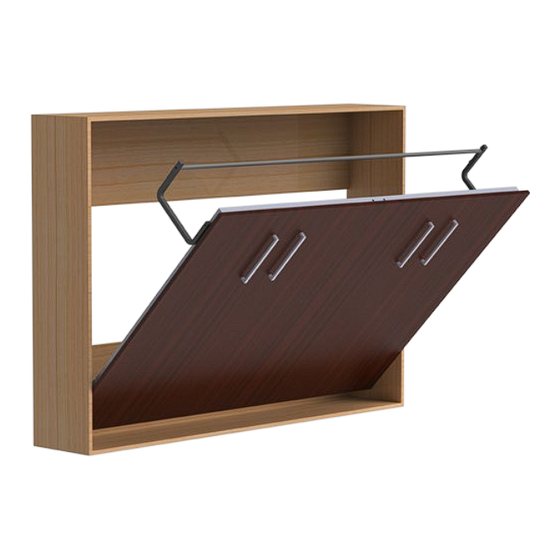

INSTALLATION INSTRUCTIONS: HORIZONTAL WALL BED HARDWARE KIT WITH FRAME
MODEL CODES:
50479 (Twin horizontal wall bed)
53155 (Double horizontal wall bed)
58262 (Queen horizontal wall bed)
*Our more compact model for shipping.
Rockler Woodworking and Hardware
4365 Willow Drive, Medina, MN 55340
1-800-279-4441
1
Advertisement
Table of Contents
Related Manuals for I-Semble 50479
Summary of Contents for I-Semble 50479
- Page 1 INSTALLATION INSTRUCTIONS: HORIZONTAL WALL BED HARDWARE KIT WITH FRAME MODEL CODES: 50479 (Twin horizontal wall bed) 53155 (Double horizontal wall bed) 58262 (Queen horizontal wall bed) *Our more compact model for shipping. Rockler Woodworking and Hardware 4365 Willow Drive, Medina, MN 55340...
- Page 2 HARDWARE Head bar of the frame (with bearings) Foot bar of the frame Center frame support with slat holes Center frame supports Long center frame support Left and right frame bars Flat bars Pistons (non locking) Single: 90kg, Double: 90kg, Queen: 110kg Mattress Supports Mounting plates (left and right) Saddle locking plates...
- Page 3 Wrench Allen Key 4mm Allen Key 5mm x16 x16 x16 Threaded inserts x16 x16 x16 M8 x 16mm Screws x26 x28 x28 #10 x 55mm Screws (Step 12) x36 x52 x52 #8 x 15mm Screws (Steps 11-12) #10 x 15mm Screws #10 x 30mm Screws M5 x 15mm Screws M6 x 30mm Bolts...
- Page 4 Overall Cabinet Dimensions Cabinet Parts Dimension Guide C C C C C C C C * Suggested dimensions...
- Page 5 DRILLING GUIDE The holes should be 3/8” in diameter and 1/2” deep for threaded inserts. Front Back 16 " 8 " 16 " Bottom All measurements are for 3/4’’ thick board. *See full sized template in product box.
-
Page 6: Installing The Mounting Brackets
INSTALLING THE MOUNTING BRACKETS Right side Wood Left side U + T Bottom ASSEMBLING THE CABINET * See guide on page 4 for suggested cabinet dimensions. -
Page 7: Securing To The Wall
SECURING TO THE WALL Brackets can be installed on the inside or on the top of the cabinet. * Needs to be secured into at least two wood or metal studs. * Nylon wall anchors are NOT recommended * Professional installation recommended. ASSEMBLING THE FRAME Insert E into A1 and A2. - Page 8 Attach D to A1 and A2 with BB and FF. inside Attach F and B to the of E, then attach the B supports to both sides of D. These tabs should be Flat bar “F” flat on the ground.
- Page 9 Bolt both ends of the supports C to the frame assembly. INSTALLING THE SLATS Place P on one end of each slat. Attach two slats together with Q. Insert P and Q into their designated holes along the frame. Insert all of the slats except for the first and last rows of slats.
- Page 10 Example below works for both single and double. Queen has 19 rows of slats For each bed size, do not insert the rows of slats on both ends of the frame. ATTACHING THE PISTONS TO THE FRAME Secure the longer metal ends of the pistons to the frame. This end...
- Page 11 INSTALLING THE FRAME ONTO THE MOUNTING BRACKETS Place the bearing into the saddle on the mounting bracket. Secure the bearing in place with:...
-
Page 12: Installing The Legs
INSTALLING THE PISTONS TO THE CABINET Tilt the frame inside past the edge of the cabinet to install the pistons on the mounting brackets. INSTALLING THE LEGS Install the temporary stoppers onto the top corners of the bed cabinet. Secure the legs to the bed frame. Do not overtighten. -
Page 13: Installing The Doors
Double/Queen: INSTALLING THE DOOR BRACKETS 4 doors The door brackets must point downward. Install the door brackets 3/16” 3/16” in alignment with the support bars on the bed frame. 6” 6” Measurements (right) are for the placement of this hole on the backside of the doors. - Page 14 11.2 Attach the doors to the frame while putting weight on the frame to keep the bed open. We recommend to have someone else sit on the frame during this step. * The bed will not stay open on its own without the weight of a mattress.
- Page 15 INSTALLING THE REMAINING SLATS Insert P and Q into their designated holes along the frame. Insert all of the remaining slats. INSTALLING THE MATTRESS SUPPORTS Insert the mattress supports into the designated holes on the bed frame.
- Page 16 OPERATING ALL I-SEMBLE WALL BEDS WITH NON-LOCKING PISTONS** The wall bed is assembled and shown in Pivot the leg towards the inside of the unit. Make lowered position. sure that the leg is fully retracted. Pull up gently to close. The leg serves as a mattress retaining system.
