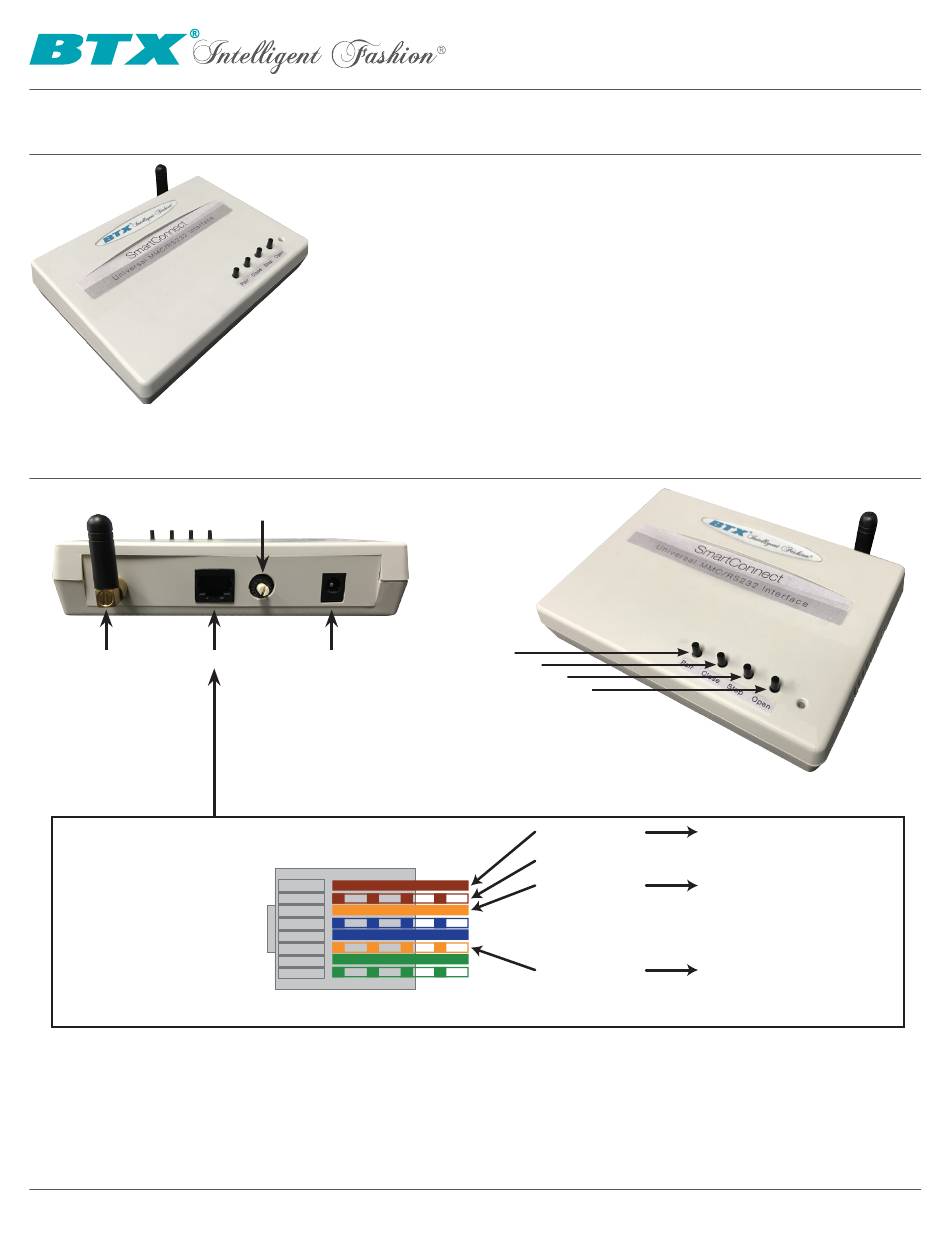

U n i v e r s a l M M C / R S 2 3 2 I n t e r f a c e
L a y o u t & C o n n e c t i o n s
Antenna
RS232 Input
RS232 Pin-Out
(Shown Tab-side Down)
BTX Window Automation - 2016 Smar tConnect Instructions
© 2016 BTX Intelligent Fashion, LLC
(800) 422-8839 | www.btxinc.com

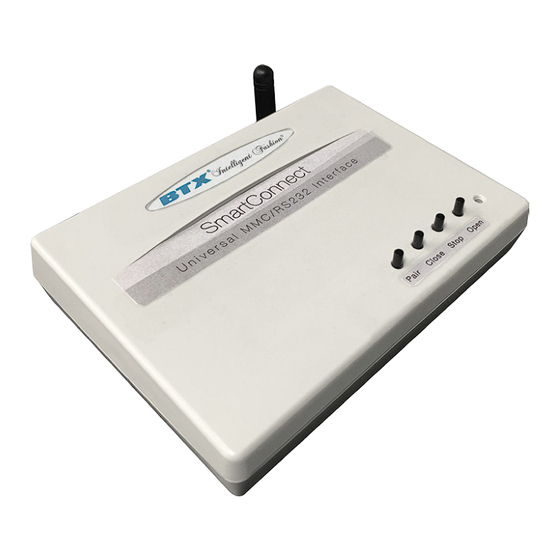

The BTX SmartConnect can be used to communicate between third-
party automation systems and BTX's MMC RF motors and controls.
The SmartConnect can control units individually or as groups, and
is operated via RS232 input. Once the input is executed, a wireless
MMC RF radio command is sent to the automated BTX window
coverings system.
RF Channel Dial
Power
Pin 8
Pin 1
B T X S m a r t C o n n e c t
Pair
Close
Stop
Open
Common
Common
RS232 RX
RS232 TX
To RS232 Ground
To RS232 TX
To RS232 RX
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Intelligent Fashion SmartConnect and is the answer not in the manual?

Questions and answers

Summary of Contents for BTX Intelligent Fashion SmartConnect

  • Page 1 The SmartConnect can control units individually or as groups, and is operated via RS232 input. Once the input is executed, a wireless MMC RF radio command is sent to the automated BTX window coverings system. L a y o u t & C o n n e c t i o n s...
  • Page 2 SmartConnect. The window treatment should move appropriately. The LED will flash red to indicate the radio signal has been transmitted. B. RS232 Operation 1. The BTX SmartConnect interface uses the following communications settings: 9600 Baud, 8 Data Bits, 1 Stop Bit, No Parity 2. Set the RF Channel Dial to position 1 3.
  • Page 3 *Motor must be in Programming Mode **Motor must be in Pairing Mode ***Only applies to Tumo Drapery motors. Motor must be in Programming Mode. BTX Window Automation - 2016 Smar tConnect Instructions © 2016 BTX Intelligent Fashion, LLC (800) 422-8839 | www.btxinc.com...
  • Page 4 -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. BTX Window Automation - 2016 Smar tConnect Instructions © 2016 BTX Intelligent Fashion, LLC...
