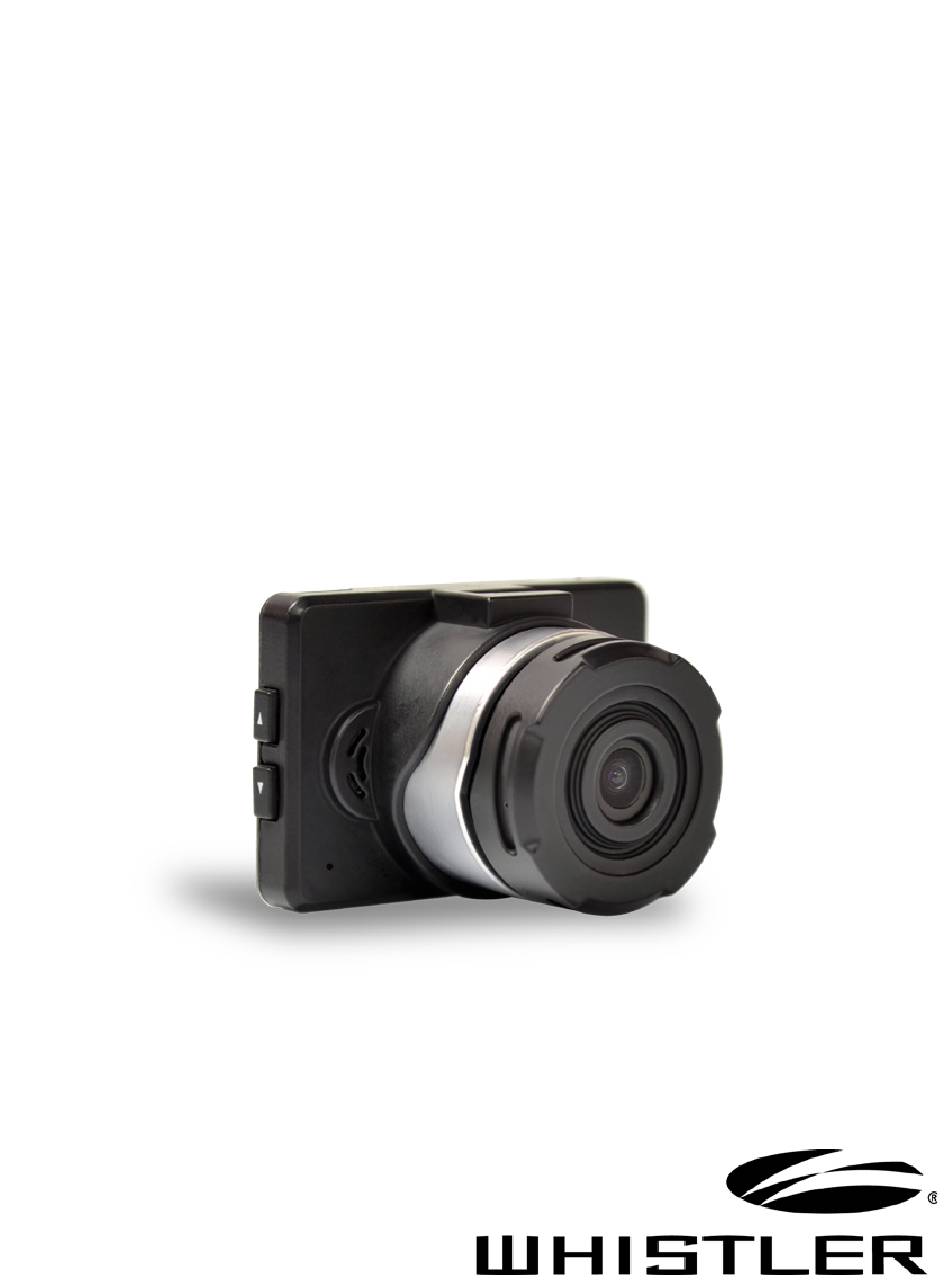

  • Page 1 D24RS User Guide DASH CAM AUTOMOTIVE DIGITAL VIDEO RECORDER...

  • Page 2: Table Of Contents

    TABLE OF CONTENT What's Included ............. 3 Welcome ..............3 Product Introduction ..........4 Feature Descriptions ......... 5-6 Getting Started ........... 7-8 Device Functions ..........9-24 Specifications ..........25-26 Menu Options ............27 Warranty ............28-31...

  • Page 3: What's Included

    Reader CARD Guide WELCOME Thank you for choosing a Whistler product. We are dedicated to providing products that represent both quality and value. Please read the user guide carefully before using this product. If you have additional questions, please visit the FAQ page on our website www.whistlergroup.com...

  • Page 4: Product Introduction

    PRODUCT INTRODUCTION Speaker Power Lens Mount connector Microphone Micro SD slot LCD Display Up/Down Menu Micro USB port OK/Record/Enter Reset Mode...

  • Page 5: Feature Descriptions

    FEATURE DESCRIPTIONS 1. Microphone – Audio receiver for video recording. 2. Lens – 110 ° wide-angle lens. 3. Speaker – Provides audio for playback and device tones. 4. LCD Display – View photo and video. 5. Menu – In standby mode, press to view Video menu options.

  • Page 6: Feature Descriptions

    FEATURE DESCRIPTIONS 8. Power – Press and hold for 2 seconds to power unit on or off. While recording, a quick press will turn display off, if unit is recording it will continue to record. 9. Mount connector – Connects unit to suction cup mount.

  • Page 7: Getting Started

    GETTING STARTED Remove plastic film Remove all plastic protective film from the dash cam lens and LCD display. Image quality Images on display are shown in low quality. To view better quality images either download video to computer using the USB cable provided or remove SD card to transfer video to computer.
  • Page 8 GETTING STARTED (3) When removing the microSD card, you need to press it in then allow it to release slightly before removing from the camera. NOTE: Before inserting or removing micro SD card, please make sure unit is turned off. Formatting Micro SD Card Before the first use, please format the micro SD card to FAT 32 format.

  • Page 9: Device Functions

    DEVICE FUNCTIONS Powering up Camera Plug the micro USB end of the power cord supplied into the micro USB jack of the camera. Insert the other end of the power cord into the vehicle's 12 Volt power port. Unit will automatically turn on and start recording when power is applied.
  • Page 10 DEVICE FUNCTIONS Resolution 1. While in standby mode, press the to view Video menu. 2. Use p or q keys to highlight Resolution. 3. Press OK to select. 4. Use p or q to highlight one of the selections. 5. Press OK to select your option. 6.
  • Page 11 DEVICE FUNCTIONS Loop Recording Loop recording allows the camera to record videos in segmented units that can be recorded over when needed for space. 1. When in standby mode press to view Video menu. 2. Use p or q keys to highlight loop recording. 3.
  • Page 12 DEVICE FUNCTIONS Record Audio Your unit will default to record audio, however we provide you with the option to turn this off. When selecting this function, you will be given the options of Off or On. This function can also be turned ON/ OFF by pressing UP button while recording.
  • Page 13 DEVICE FUNCTIONS Date Stamp If you would like each video to contain a date stamp, you will need to verify that the date stamp is turned 1. While in standby mode, press to view Video menu. 2. Use p or q keys to highlight Date Stamp. 3.
  • Page 14 DEVICE FUNCTIONS G-Sensor G-Sensor setting will lock video file if it detects an impact. This will stop the camera from recording over the video. 1. While in standby mode, press to view Video menu. 2. Use p or q keys to highlight G-Sensor. 3.
  • Page 15 DEVICE FUNCTIONS Setting Time and Date With the camera on and the recording paused, press twice, to enter the Setup menu. Press the q to select Date/Time, press OK. Press the p or qbutton to set the date and time. Press OK to advance to the next item to be set.
  • Page 16 DEVICE FUNCTIONS Auto Power Off Auto Power Off will turn camera off when the unit is not recording. 1. While in standby mode, press twice to view Setup menu. 2. Use p or q key to highlight Auto Power Off. 3.
  • Page 17 DEVICE FUNCTIONS Screen Saver Screen Saver will turn the display off while continuing to record. This helps cut down on distractions especially at night. 1. While in standby mode, press twice to view Setup menu. 2. Use p or q keys to highlight Screen Saver. 3.
  • Page 18 DEVICE FUNCTIONS Manual Screen Saver While in standby or record mode, a quick press to the will turn the display off while the unit remains on and recording. Beep Sound and Language Your unit will default to provide a beep when any button is pressed however we provide you with the option to turn this off.
  • Page 19 DEVICE FUNCTIONS Lens Flip While in standby mode, press twice to view Setup menu. 1. Use p or q keys to highlight Lens Flip. 2. Press OK to select. 3. Use p or q key to highlight ON/OFF. 4. Press OK to select. 5.
  • Page 20 DEVICE FUNCTIONS Frequency The default setting is 60Hz however an option is provided at 50Hz should this be necessary to reduce flickering when recording monitors, TV's or when using florescent lighting. Night Mode During low lighting conditions, the camera will automatically sense this and adjust for better detail.
  • Page 21 DEVICE FUNCTIONS Formatting 1. While in standby mode press twice to view Setup menu. 2. Use p or q keys to highlight Format. 3. Press OK to select. 4. Use p or q key to highlight selection Cancel or 5. Press OK to select. NOTE: If you format your SD card all information will be erased, including any locked files.
  • Page 22 DEVICE FUNCTIONS Default Setting and Version Default setting will reset the unit features back to the factory defaults. Version will provide the firmware version installed in your device. Should newer FW versions be released, you may update your unit and a new FW version will be displayed as confirmation.
  • Page 23 DEVICE FUNCTIONS Capture photos While in standby mode, press the MODE, then camera icon will be on the top left corner of the screen. Press the OK, to take photos. Video Preview While in standby mode, press MODE twice to playback video on camera.
  • Page 24 DEVICE FUNCTIONS Resetting the Camera There is a small reset button on the bottom edge of the camera. If the camera malfunctions and the buttons are unresponsive, reset it with the reset pin or a small paper clip. When reset successfully, the camera will turn off right away.

  • Page 25: Specifications

    SPECIFICATIONS LCD Screen 1.5 inch Size Power Supply Car Charger; Output: 5V,1A Battery 85mAh Capacity Video Format FHD1920×1080 Resolution HD1280×720 VGA 640×480 Lens Angle 110° SD Card Capacity 8GB - 32GB SD card supported Supported Range Power 220mAh Consumption...

  • Page 26: Specifications

    SPECIFICATIONS USB Interface Micro 5P Type Charging* Steady yellow Fully charged* Yellow LED turns off Flashing red icon (displayed on Recording LCD) Recording Red icon OFF, stops flashing Paused * Unit must be plugged into power for use, once power is removed unit will power off. Basic functions • Low illumination high-definition video 1080FHD@30fps 720HD@30fps...

  • Page 27: Menu Options

    MENU OPTIONS Video Resolution: FHD / HD / VGA Loop Recording: OFF / 1 min / 2 min / 3 min / 5 min / 10 min Exposure: -3 -- +3 Motion Detecting: ON / OFF Record Audio: ON / OFF G-Sensor: OFF / 2G / 4G / 8G Date Stamp: ON / OFF System Settings...

  • Page 28: Warranty

    All express or implied warranties for this product are limited to one (1) year. Whistler is not liable for damages arising from the use, misuse, or operation of this product...
  • Page 29 Service Under Warranty During the warranty period, defective units will be repaired or replaced (with the same or a comparable model), at Whistler’s option, without charge to the purchaser when returned prepaid, with dated proof of purchase to the address below.
  • Page 30 IMPORTANT: To validate that your unit is within the warranty period, make sure you keep a copy of your dated proof of purchase. For warranty verification purposes, a copy of your dated store receipt must accompany any Whistler product sent in for warranty work. Service Out-Of-Warranty Units will be repaired at “out-of-warranty”...
  • Page 31 VISA or American Express. Personal checks are not accepted. In the event repairs cannot be covered by the minimum service fee, you will be contacted by a Whistler technical service special- ist who will outline options available to you. IMPORTANT: When returning your unit for service, be certain to include a daytime telephone number and an email address (if applicable).
  • Page 32 CORPORATE HEADQUARTERS 1716 SW Commerce Dr. Ste. 8 Bentonville, AR 72712 Toll Free (800) 531-0004 TEL (479) 273-6012 www.whistlergroup.com CUSTOMER RETURN CENTER 1412 South 1st St. Rogers, AR 72756 Email: support@whistlergroup.com 10C18 © 2018 The Whistler Group, Inc.
