Automotive digital video recorder

Advertisement

Quick Links

D230
User Guide
AUTOMOTIVE
DIGITAL VIDEO RECORDER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D230 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whistler D230

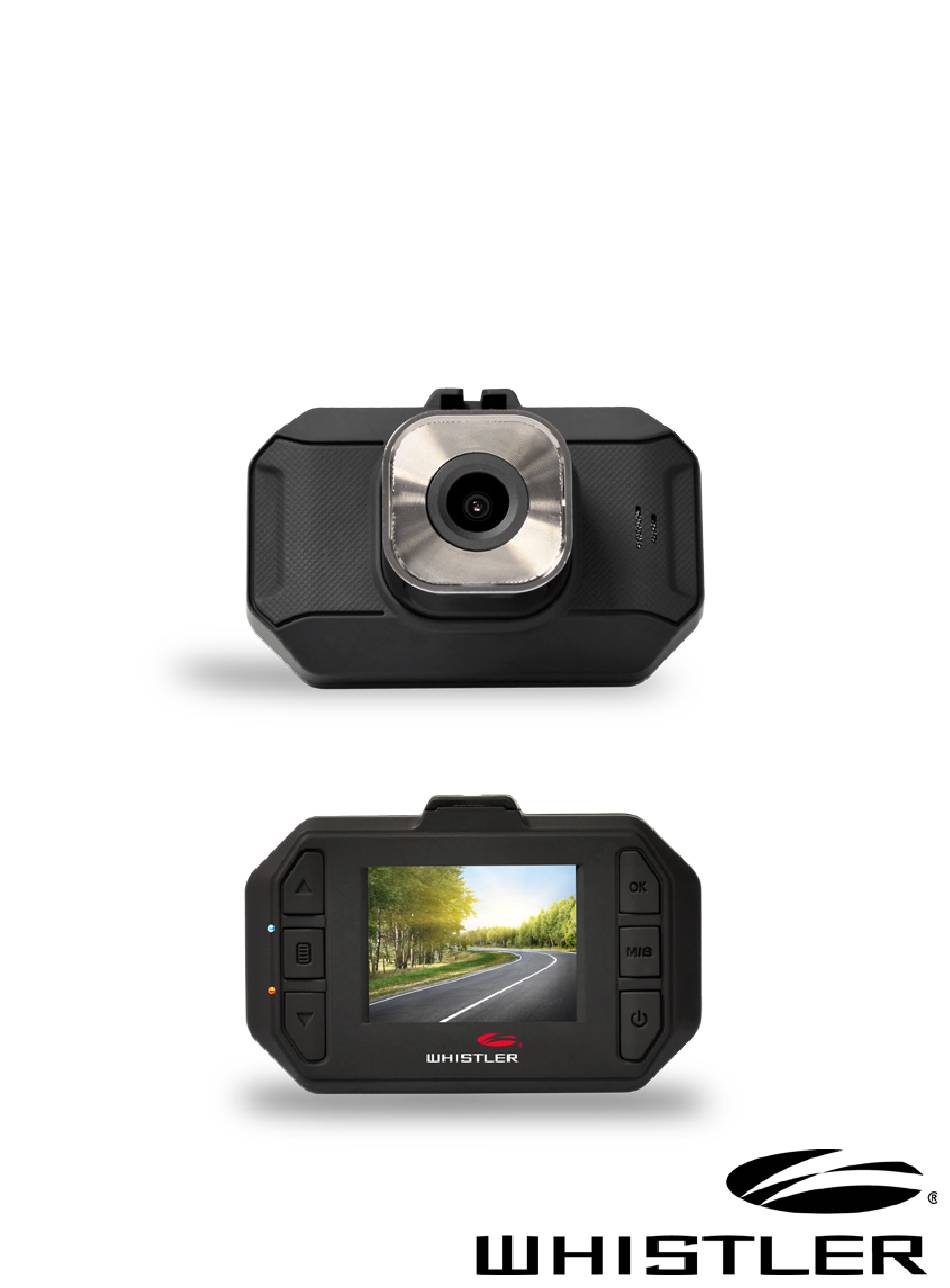

  • Page 1 D230 User Guide AUTOMOTIVE DIGITAL VIDEO RECORDER...
  • Page 2: What's Included

    DC POWER GUIDE CORD Welcome Thank you for choosing a Whistler product. We are dedicated to providing products that represent both quality and value. Please read the user guide carefully before using this product. If you have additional questions, call toll free...
  • Page 3: Product Introduction

    PRODUCT INTRODUCTION Features Camera Lens Mode / Lock Button Speaker Power Button LCD Display Up Button Microphone Menu Button Bracket Mount Down Button USB Jack Micro SD Card slot Status LEDs OK Button...
  • Page 4: Feature Description

    FEATURE DESCRIPTION Camera Lens – 140º wide-angle lens Speaker – Provides audio for playback and device tones. LCD Display – View photo and video. Microphone – Audio receiver for video recording. Bracket Mount – Windshield bracket attachment. USB Jack – Allows PC interface to access micro SD card, PC camera and charge the battery.
  • Page 5 FEATURE DESCRIPTION Mode / Lock Button – Press to switch modes: Video, Camera, Playback. Press while recording to lock current file. 10. Power Button – Press to power ON. Press and hold to power OFF. 11. Up Button – Press to zoom in. In menu allows scrolling of menu items.
  • Page 6 OPERATIONS Designed exclusively for motor vehicles operating at 12 or 24 volts DC. Inserting a micro SD card Before initial use, insert a micro SD card (Suggest at least an 8GB (Class 6 minimum), up to 32GB. NOTE: Turn DVR off before inserting or removing the micro SD card.
  • Page 7 OPERATIONS Installing the Windshield Bracket The included windshield bracket securely places the DVR onto the vehicle’s windshield. Follow the procedure below to secure the bracket: 1. Slide the collar into the bracket mounting point on top of the DVR. 2. If applicable, remove protective film from the suction cup.
  • Page 8 OPERATIONS Power Connection in Vehicle Plug the mini USB end of the vehicle power cord into the USB jack of the DVR. Insert the other end of the power cord into the vehicle’s lighter socket / power port. NOTE: Unit will automatically turn on and start recording when power is applied.
  • Page 9 OPERATIONS Initial Settings Date & Time Setting Once connected with car charger, the device will power ON and start recording. Press the OK button to switch into standby mode.   Press the MENU button twice then Press the select Date/Time. Press OK to enter into setting. ...
  • Page 10 OPERATIONS Recording or Review a Video or Image Recording Video 1. Power on: Press to turn on DVR. 2. The icon is shown in the top left corner with a blinking red dot when recording. Press OK to stop recording if desired. NOTE: When powered externally the DVR will automatically be in Video Record mode and begin recording after initial power ON.
  • Page 11 OPERATIONS Anti-shaking Mode On Picture Count Camera Mode Exposure Picture Resolution Compensation Auto White Balance SD Card Battery Charging Digital Zoom Review Press MODE (M) to enter review screen. Use  or  to highlight a file. Press OK to select Press OK again to play a video.
  • Page 12 OPERATIONS USB Settings Connect the unit to a computer using the USB cable included.   Two options are available. Use and OK buttons to select an option. Mass Storage - In this mode the recorded files can be accessed directly from the micro SD card installed into the DVR.
  • Page 13 OPERATIONS Special Functions • G-Sensor function. If a sudden shock is detected (such as in an accident) the video segment recorded is protected from being overwritten. • Seamless loop recording allows camera to record over oldest video when the micro SD card is full. •...
  • Page 14: Troubleshooting

    TROUBLESHOOTING Confirm that the micro SD card is of Can’t record or proper class (C6 min.) and has available take photo capacity. If the unit does not recognize the card, remove the SD card and insert it again. If Unit doesn’t still not recognized, the SD card may be work with my damaged or device does not support this...
  • Page 15 TROUBLESHOOTING NOTE: No user serviceable parts inside. Do not open product. Use and Care Unit does not use a Touch Screen to control its functions! Do not touch screen with any objects as damage to screen may occur. Do not leave unit in direct sunlight for extended period of time, especially in a vehicle.
  • Page 16: Specifications

    SPECIFICATIONS Specifications are subject to change without notice. Features HD camera, HD video recording Unit 38.1 mm x 50.8 mm x 31.75mm Dimensions (1.5” x 2.5” x 1.25”) HxWxD Unit Weight 36.9 g (1.3 oz) LCD Screen 1.5" LCD Screen Size Zoom 4X Digital...
  • Page 17 SPECIFICATIONS Date Stamp Off / On G-Sensor Off, 2G, 4G, 8G Screen Saver Off, 3 Minutes, 5 Minutes, 10 Minutes Photo JPEG Memory Micro SD card – C6MIN / 32GB Max USB 1.1 / 2.0 Battery 200mAh Capacity Operating 0° ~ 50°C (32° ~ 122°F) @ Humidity of Temperature 10% - 80% Range...
  • Page 18 SPECIFICATIONS Basic functions • 1.5 inch LCD • Impact sensitivity adjustment automatically locks file • Supports cycle video • Supports up to 32GB micro SD card • Charges while in use...
  • Page 19: Menu Options

    MENU OPTIONS Video resolution: 1080HD 1920 x 1080 / 1080P 1440 x 1080 / 720P 1280 x 720 / VGA 640 x 480 Loop recording: OFF/ 1 Minute / 2 Minutes / 3 Minutes Exposure: -2.0 -- +2.0 Motion detection: OFF / ON Record audio: OFF / ON Date stamp: OFF / ON G-Sensor: OFF / 2G / 4G / 8G...
  • Page 20: Warranty Information

    All express or implied warranties for this product are limited to one (1) year. Whistler is not liable for damages arising from the use, misuse, or operation of this product including but not limited...
  • Page 21 Service Under Warranty During the warranty period, defective units will be repaired or replaced (with the same or a comparable model), at Whistler’s option, without charge to the purchaser when returned prepaid, with dated proof of purchase to the address below. Units...
  • Page 22 IMPORTANT: To validate that your unit is within the warranty period, make sure you keep a copy of your dated proof of purchase. For warranty verification purposes, a copy of your dated store receipt must accompany any Whistler product sent in for warranty work. Service Out-Of-Warranty Units will be repaired at “out-of-warranty”...
  • Page 23 VISA or American Express. Personal checks are not accepted. In the event repairs cannot be covered by the minimum service fee, you will be contacted by a Whistler technical service specialist who will outline options available to you. IMPORTANT: When returning your unit for service, be certain to include a daytime telephone number and an email address (if applicable).
  • Page 24: Corporate Headquarters

    CORPORATE HEADQUARTERS 1716 SW Commerce Dr. Ste. 8 Bentonville, AR 72712 Toll Free (800) 531-0004 TEL (479) 273-6012 www.whistlergroup.com CUSTOMER RETURN CENTER 1412 South 1st St. Rogers, AR 72756 Email: support@whistlergroup.com 03B18 © 2018 The Whistler Group, Inc.
