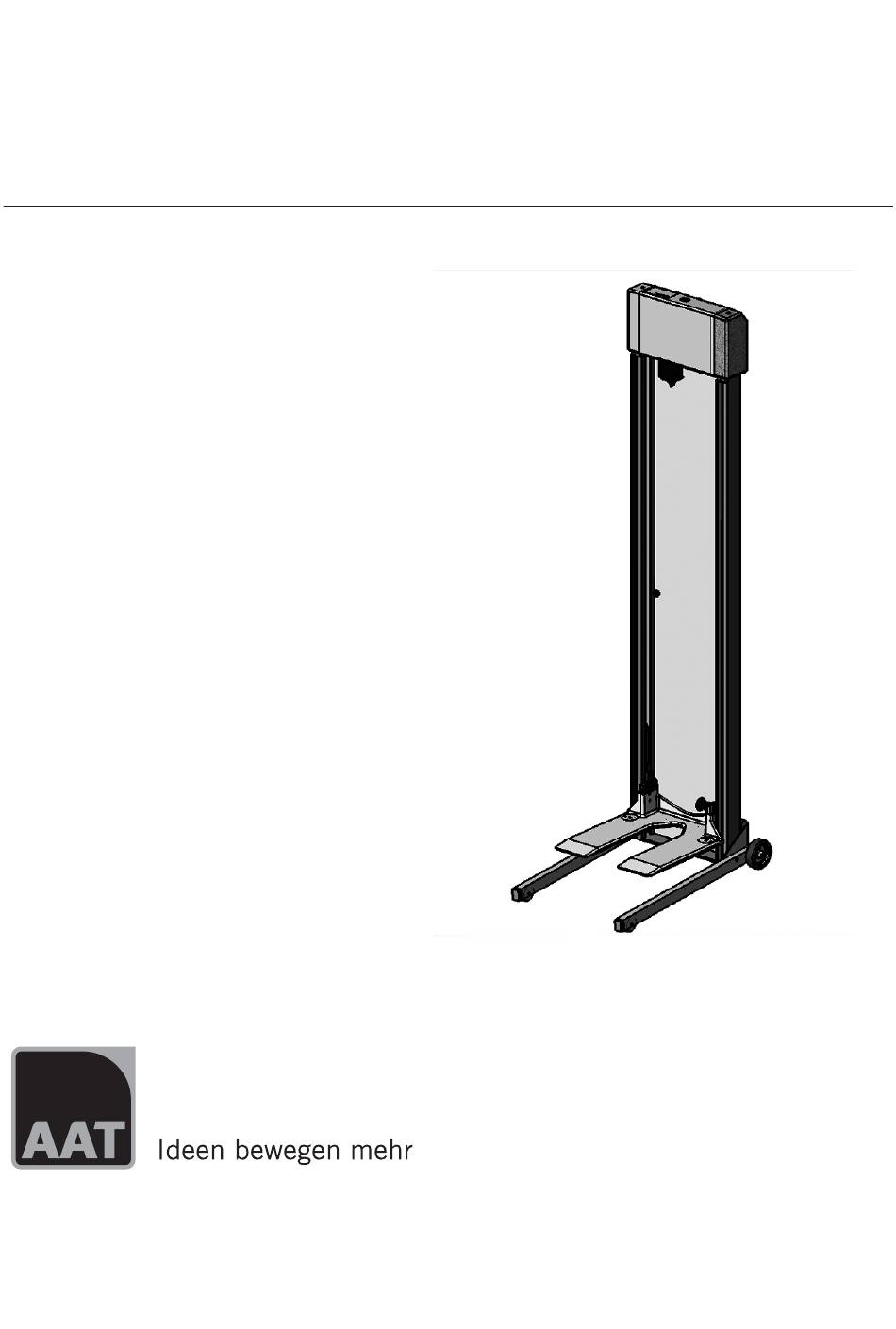

- Page 1 Vertical lift V1001 Translation of the original user’s manual...
-
Page 2: Ce Declaration Of Conformity
CE Declaration of conformity The company AAT Alber Antriebstechnik GmbH herewith declares that the vertical lift V1001 was designed and produced according to the relevant re- gulations of the European Union for machinery 2006/42/EG. Any tampering or alteration done to the above mentioned device that has not been confirmed by AAT Alber Antriebstechnik GmbH makes this declaration void. -
Page 3: Table Of Contents
Vertical lift V1001 Table of contents CE Declaration of conformity ....Table of contents ..... . -
Page 4: General Information
Other than that your vertical lift is low in maintenance and does not need special care or maintenance. For detailed information, please go to chapter Warranty and liability For damage due to non-observance of this manual’s instructions AAT does not assume any liability. Detailed information you find in chapter 7. -
Page 5: Description Of The Product
Vertical lift V1001 Description of the product Adequate use The vertical lift is used inside in industrial areas to lift and lower mobile goods, mainly to load and unload shelves or vehicles. It can only be used in connection with a carrier device (Cargo Master C-Sys- tem, AMEISE trolley, Expresso dolliers or Sano stair climbers). -
Page 6: Overview
Vertical lift V1001 Overview 1 = housing 2 = on-/off switch 3 = LED (light emitting diode) for battery display 4 = bar 5 = hinged blade 6 = locking bolt (for folding mechanism) 7 = support (optional with folding mechanism) -
Page 7: Technical Data
Vertical lift V1001 Technical data Model V1001-550: height = 900 mm Dimension width = 430 mm depth = 610 mm Weight 15,8 kg Max. lifting capacity 100 kg Lifting range 55 cm Batteries 2 x 12 V / 5 Ah... - Page 8 Vertical lift V1001 Model V1001-1150: height = 1500 mm Dimension width = 430 mm depth = 660 mm Weight 18 kg Max. lifting capacity 100 kg Lifting range 115 cm Batteries 2 x 12 V / 5 Ah Direct current motor...
-
Page 9: Dimensional Drawing
Vertical lift V1001 Dimensional drawing Model V1001-550:... - Page 10 Vertical lift V1001 Model V1001-750:...
- Page 11 Vertical lift V1001 Model V1001-1150:...
-
Page 12: Serial Scope Of Delivery
Vertical lift V1001 Serial scope of delivery 1 = charger including user's manual 2 = Vertical lift Optimal accessories 1 = blade extension 2 = support (foldable) 3 = carrier device... -
Page 13: First Operation
Vertical lift V1001 First operation Please charge the batteries completely before you use the device for the first time. Please note that the vertical lift topples backward without a carrier device. On-/Off switch Before operating, please turn on the vertical lift with the On-/Off switch Œ. -
Page 14: Adjusting The Vertical Lift
Vertical lift V1001 Adjusting the vertical lift Due to allowances it might be necessary to adjust the vertical lift to your car- rier device. This is the case when the base plate of the vertical lift does not rest on the base plate of the carrier device. In such case you need to move the vertical lift’s... -
Page 15: Disconnecting The Vertical Lift
Vertical lift V1001 Removing the vertical lift 1. Stand behind the carrier device and loosen the locking bolts at the two up- per handles by pulling and turning them. Now the handles are unlocked. 2. Hoist the vertical lift at its two bars until the handles are lifted out of the carrier device’s horizontal bar. -
Page 16: Loading A Vehicle Or A Shelf
Vertical lift V1001 3.10 Loading of a vehicle or a shelf Drive as closely as possible to the sill of the car’s boot or the shelf. Press the Up/Down switch in direction “UP” until the blade is approximately 10 mm above the sill of the car’s boot or the shelf Œ. -
Page 17: Transportation
Vertical lift V1001 3.13 Transportation The blade (optional the support) can be folded for transportation (please see chapter 3.1 and 3.2). Pick up the vertical lift at the beams on the right and the left. If necessary a second person should assist you. -
Page 18: Safety Instructions
Before maintenance work, please turn off the vertical lift and take it off the charger. Repairs may only be done by the manufacturer or authorized person- nel. Please only use original AAT accessories. Please note the detailed care and maintenance instructions in chapter 6. Condition of paths, walkways... -
Page 19: Battery Charge
Vertical lift V1001 Battery charge: The vertical lift should only be operated with fully charged batteries. The diode on the battery display shows the capacity left on the battery. If the battery is empty, the LED is red. If the battery is fully charged, the LED is green. -
Page 20: Operation
Vertical lift V1001 Operation Maximum load Please make sure that you never exceed the indicated load of 100 kg. Lead batteries Please fully charge the batteries before you use the device for the first time (for detailed information see chapter 6.2). -
Page 21: Care, Maintenance And Recycling
To charge the batteries, please use exclusively the included charger by AAT. 6.1.1 Automatic charger The charger does not call for special maintenance. The charger by AAT is a standard part of the scope of delivery. Plug Πplugged into the wall outlet and plug ... -
Page 22: Sealed Lead Acid Batteries
Should your fully charged batteries deplete faster than usual, they are proba- bly exhausted. In such case you need to have them checked and replaced, if necessary. Exhausted batteries can be recycled properly at the appropriate collection places. It is also possible to give them back to AAT Alber Antriebstechnik GmbH. - Page 23 Please always turn off the vertical lift before you charge the batte- ries. 6.2.2 Charge the batteries with the charger Connect the vertical lift to the AAT charger to charge the lead batteries. 1. Put the charger’s plug into the power jack at the bottom of the hou- sing.
-
Page 24: Tighten The Chain
Recycling Your vertical lift and its lead batteries are products of long durability. Once their life-span is exhausted, you can turn in the components to AAT Alber Antriebstechnik GmbH for recycling. The law for electronics (ElektroG) handling the taking back and recycling of old electrical and electronic devices has come into effect March 3 , 2005. -
Page 25: Warranty And Liability
AAT Alber Antriebstechnik GmbH assumes a warranty of 6 months from the date of purchase for the lead batteries; however, always provided that they have been properly maintained. - Page 26 Vertical lift V1001 Notes:...
- Page 27 Vertical lift V1001...
- Page 28 Vertical lift V1001 AAT Alber Antriebstechnik GmbH Postfach 10 05 60 · D-72426 Albstadt Tel. +49.74 31.12 95-0 · Fax +49.74 31.12 95-35 www.aat-online.de · info@aat-online.de...
