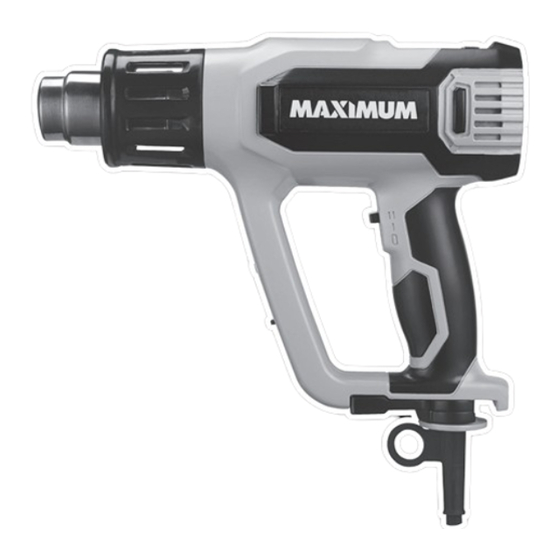

- Page 1 Pro-grade Heat Gun with LCD Model No. 054-0403-4 IMPORTANT: INSTRUCTION Please read this manual carefully before using MANUAL this product, and save it for reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS GENERAL SAFETY WARNINGS ADDITIONAL SAFETY RULES FOR YOUR HEAT GUN SYMBOLS KEY PARTS DIAGRAM ACCESSORIES PARTS LIST OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING WARRANTY NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-888-670-6682. -
Page 4: Technical Specifications
054-0403-4 | contact us 1-888-670-6682 TECHNICAL SPECIFICATIONS VOLTAGE 120 V 60 Hz AC POWER INPUT I = 120 — 1100°F (50 — 600°C), TEMPERATURE/FLOW RATE 8.1 CFM (300 L/min) II = 120 — 1100°F (50 — 600°C), 13.5 CFM (500 L/min) -
Page 5: General Safety Warnings
PERSONS REMOVING PAINT SHOULD FOLLOW THESE GUIDELINES: Move the workpiece outdoors. If this is not possible, keep the work area well ventilated. Open the windows and put an exhaust fan in one of them. Be sure the fan is moving the air from inside to outside. Remove or cover any carpets, rugs, furniture, clothing, cooking utensils and air ducts. - Page 6 054-0403-4 | contact us 1-888-670-6682 Work in one room at a time. Furnishings should be removed or placed in the centre of the room and covered. Work areas should be sealed off from the rest of the dwelling by sealing doorways with drop cloths.
-
Page 7: Additional Safety Rules For Your Heat Gun
ADDITIONAL SAFETY WARNINGS FOR HEAT GUN This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. -
Page 8: Symbols
054-0403-4 | contact us 1-888-670-6682 SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear eye protection Wear dust mask Don’t use in the rain For indoor use only... -
Page 9: Key Parts Diagram
No. Description No. Description Wind pipe LED light cover Heat protection guard LCD cover Main body Temperature control button Air cooling window °F/°C button On/off switch Scraper Stand supporter Flat nozzle Hook Glass protection nozzle Power cord Hook nozzle LED light switch Concentration nozzle... - Page 10 054-0403-4 | contact us 1-888-670-6682 Not all the accessories illustrated or described are included in standard delivery.
-
Page 11: Accessories
ACCESSORIES Scraper Glass protection nozzle Flat nozzle Hook nozzle Concentration nozzle We recommend that you purchase your accessories from the same store that sold you the tool. Use good-quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. -
Page 12: Parts List
054-0403-4 | contact us 1-888-670-6682... - Page 13 No. Description No. Description Heat-proof cover Wind pipe Switch button Mica paper Cable clip Heating element Screw ST4x16 Commutate cover LED board Screw M2.5X12 LED switch Right support foot Screw M2.5X5 Left support foot Motor holder Cable Motor Cable sleeve Wire Hook nozzle Left/right housing...
-
Page 14: Operating Instructions
054-0403-4 | contact us 1-888-670-6682 BEFORE USING THE TOOL Before starting the job it is advisable to test the workpiece for the ideal temperature to use. The description below gives an indication of the likely heat settings required but always start with the low heat setting. - Page 15 3. NOZZLE SELECTION The kit is supplied with 4 different nozzles which can be used as follows: 1) Concentration nozzle This nozzle directs a concentrated heat flow to the workpiece. It is ideal when removing paint in awkward corners, crevices, mouldings, beading, architraves or whenever precise paint removal is required.
- Page 16 054-0403-4 | contact us 1-888-670-6682 5. REMOVING PAINT Choose the required nozzle and fit onto the heat outlet. Select the scraper or shave hook required. Hold the gun with the nozzle approximately 2’’ (5 cm) from the surface of the paintwork and start with the lower heat setting.
- Page 17 Fig. B 10. STAND SUPPORTER USE (See Figs. C and D) This gun can be used in stationary mode. 1. Firstly fold down the stand supporter (6). 2. Set the gun onto a level, stable workbench. Be sure that the tool will not tip over. 3.
-
Page 18: Maintenance
054-0403-4 | contact us 1-888-670-6682 MAINTENANCE Remove the power cord from the socket before carrying out any adjustment, servicing or maintenance. There are no user-serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. -
Page 19: Troubleshooting
TROUBLESHOOTING 1. If your heat gun will not operate, check the power at the power outlet. 2. If the outlet of the heat gun is very hot, please rest until cold. 3. If a fault can not be rectified return the tool to an authorized dealer for repair. -
Page 20: Warranty
054-0403-4 | contact us 1-888-670-6682 This MAXIMUM product is guaranteed for a period of 5 years from the date of original retail purchase against defects in workmanship and materials only and is subject to the following components: Component A: The carrying case is guaranteed for... - Page 21 This warranty applies for a period of 5 years from the date of original retail purchase, as indicated on the bill of sale. Neither the retailer, Maximum Canada, nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
- Page 22 In addition to the 5-Year Limited Warranty, this MAXIMUM product is covered by our: 1-YEAR REPAIR WARRANTY...
