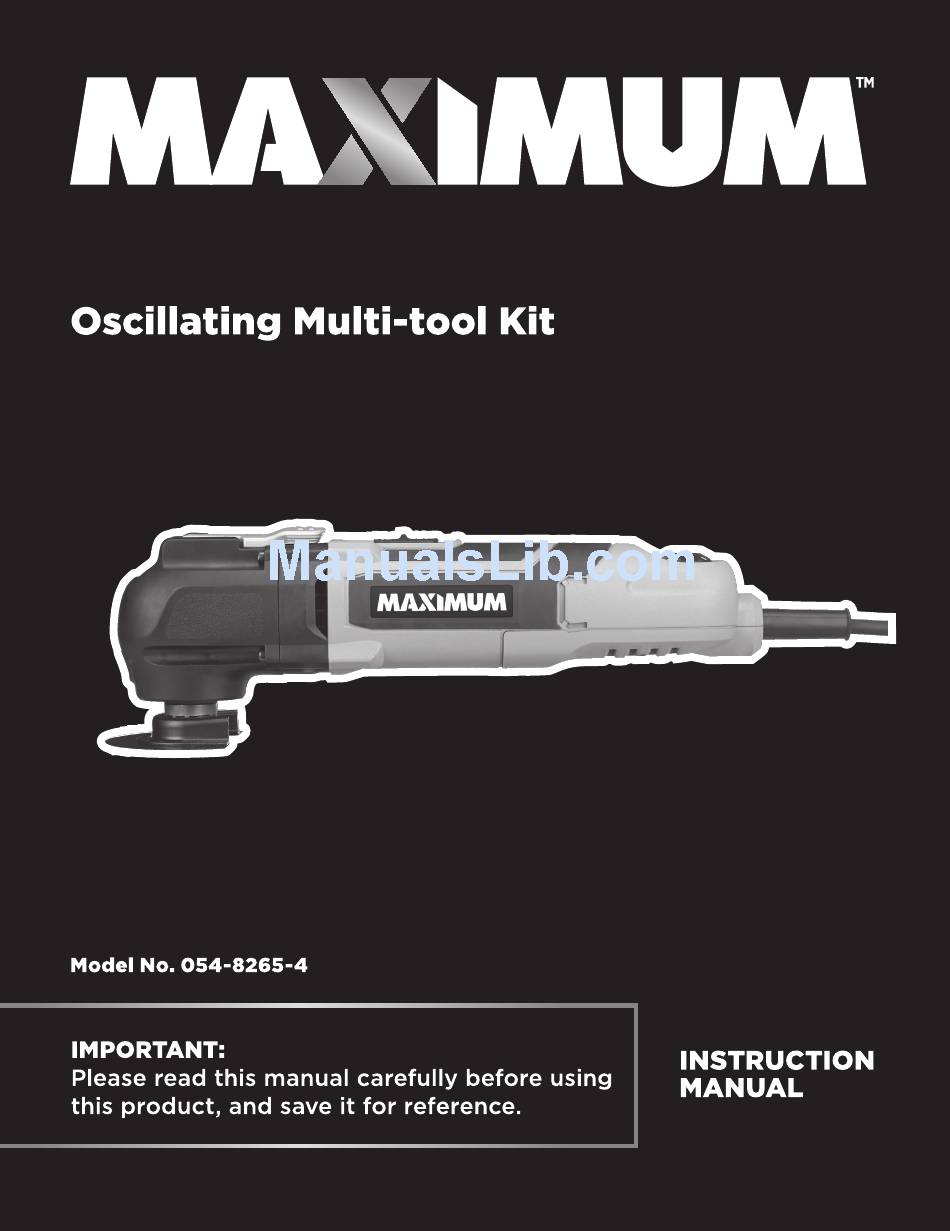

Maximum 054-8265-4 Instruction Manual
  1. Manuals
  2. Brands
  3. Maximum Manuals
  4. Power Tool
  5. 054-8265-4
  6. Instruction manual

Maximum 054-8265-4 Instruction Manual

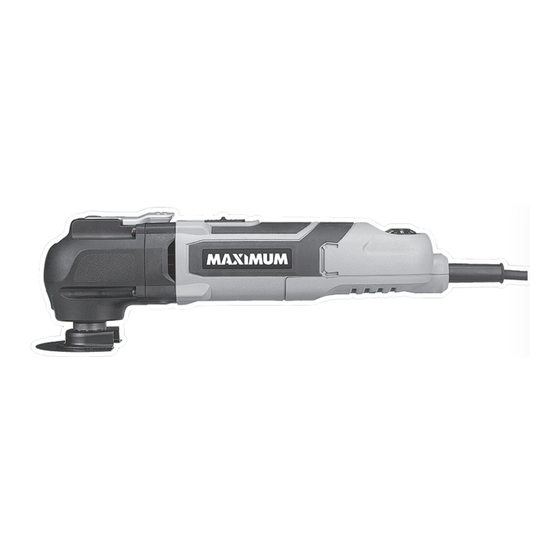

Oscillating multi-tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 054-8265-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Maximum 054-8265-4

Summary of Contents for Maximum 054-8265-4

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TECHNICAL SPECIFICATIONS GENERAL POWER TOOL SAFETY WARNINGS SYMBOLS PARTS LIST ACCESSORIES KNOW YOUR OSCILLATING MULTI -TOOL OPERATING INSTRUCTIONS APPLICATION WORKING HINTS FOR YOUR TOOL MAINTAIN TOOLS WITH CARE WARRANTY NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-888-670-6682 SAVE THESE INSTRUCTIONS This manual contains important safety and...

  • Page 4: Technical Specifications

    054-8265-4 | contact us 1-888-670-6682 TECHNICAL SPECIFICATIONS VOLTAGE 120 V 60 Hz AC CURRENT NO LOAD SPEED 11,000-20,000 OPM OSCILLATING ANGLE 3.2° POWER CORD 10’ (3 m) WEIGHT 3 lb 8 oz (1.6 kg)

  • Page 5: General Power Tool Safety Warnings

    WORK AREA SAFETY Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of • flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 6 054-8265-4 | contact us 1-888-670-6682 ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not • use any adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
  • Page 7 that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the • power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

  • Page 8: Symbols

    054-8265-4 | contact us 1-888-670-6682 SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Don’t use in the rain...
  • Page 9 No. Description No. Description Tool-free blade release Accessory interface* On/off switch LED work light Variable speed dial Flange Washer Constant speed electronics Spare flange Venting slots *Works with other oscillating tool brands’ accessories. The following compatible brands are trademarks owned by third parties which may be registered by their respective owners: Rockwell , Dewalt...

  • Page 10: Accessories

    054-8265-4 | contact us 1-888-670-6682 ACCESSORIES 1 3/8" (3.5 cm) bi-metal end-cutting blade 3 1/8" (7.9 cm) high-speed steel semicircle blade Sanding pad Sandpaper—40-grit Sandpaper—80-grit Sandpaper—120-grit We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name.
  • Page 12 054-8265-4 | contact us 1-888-670-6682 No. Description No. Description Spanner Bracket support Magnet Screw Armature Cylindrical pin Dustproof ring Spanner base Ball bearing race Hot board Magnet ring Wind baffle ring Spindle Screw Linkage Stator Compression spring Trigger...

  • Page 13: Operating Instructions

    MOUNTING ACCESSORIES CAUTION: For all work or when changing accessories, always wear protective gloves. Avoid risk of injury from the sharp edges of the accessories. Accessories can become very hot while working, presenting danger of burns. Make sure the tool is unplugged prior to changing accessories. TO CHANGE ACCESSORIES The tool-less blade change lever allows you to change the accessories without using a hex key.
  • Page 14 Closed-Ended Closed-Ended model no. 054-8265-4 | contact us 1-888-670-6682 • Insert the accessory onto the accessory interface, then (if necessary, re-insert the flange) press down the flange with finger to keep the blade temporarily secure. (Fig. B) • Flip lever back down to seated position to secure accessory.
  • Page 15 Fig. C MOUNTING / CHANGING THE SANDING SHEET • Completely remove the flange. • Install the sanding pad over the accessory interface. • Reinstall the flange. • Align the holes of the perforated sanding sheet with the slots of the perforated sanding pad and press the sheet onto the pad.

  • Page 16: Application

    054-8265-4 | contact us 1-888-670-6682 APPLICATION The workpiece must be clamped tightly before it is cut. UNIVERSAL ACCESSORIES AVAILABLE FROM MAXIMUM ® Function Accessory Name Application Wood, plastic, fibreglass, nails, Bi-metal metal/wood Sawing non-ferrous metals, thin sheet end cut blade...

  • Page 17: Working Hints For Your Tool

    If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no-load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp.

  • Page 18: Maintain Tools With Care

    054-8265-4 | contact us 1-888-670-6682 MAINTAIN TOOLS WITH CARE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.

  • Page 19: Warranty

    (with the same model, or one of equal value or specification), at the sole discretion of the Maximum Canada authorized repair centre (“Service Provider”). We will bear the cost of any repair or replacement and any costs of labour relating thereto.
  • Page 20 This warranty applies for a period of 5 years from the date of original retail purchase, as indicated on the bill of sale. Neither the retailer, Maximum Canada, nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
  • Page 21 In addition to the 5-Year Limited Warranty, this MAXIMUM product is covered by our: 1-YEAR REPAIR WARRANTY Maximum Canada will maintain this product and replace critical parts which have worn beyond reasonable use through normal use of such product, any time during the first year after purchase.
