Operation Guide
Professional, Wearable Digital Video Recording System
860-00177-00 Rev D
Copyright © 2013 Digital Ally, Inc. All Rights Reserved. This publication may not be reproduced, stored in a retrieval system,
or transmitted in whole or part in any form or by any means electronic, mechanical, recording, photocopying, or in any other
manner without the prior written approval of Digital Ally, Inc.
Advertisement
Table of Contents
Related Manuals for Digital-Ally FirstVu HD
Summary of Contents for Digital-Ally FirstVu HD

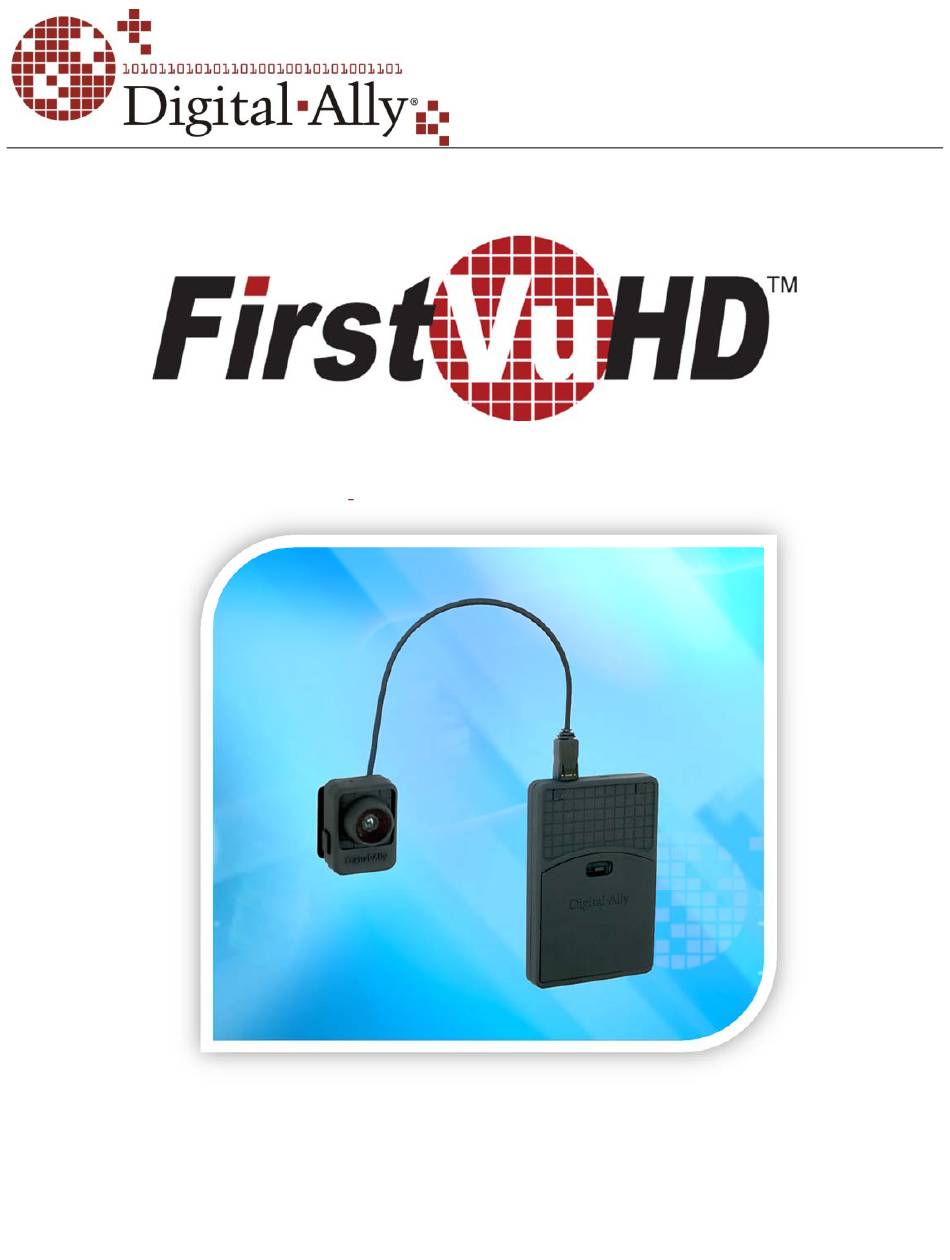

- Page 1 Operation Guide Professional, Wearable Digital Video Recording System 860-00177-00 Rev D Copyright © 2013 Digital Ally, Inc. All Rights Reserved. This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or part in any form or by any means electronic, mechanical, recording, photocopying, or in any other manner without the prior written approval of Digital Ally, Inc.
-
Page 2: Table Of Contents
Charging From a Computer .........................2-1 Charging In a Vehicle ...........................2-1 Charging Using an AC Power Outlet ......................2-1 Charging Using the Battery Charger ......................2-1 FirstVu HD Charging and Battery Indicators ....................2-1 ..........................2-2 ONNECTING THE AMERA ..........................2-2 ETTING THE ATE AND ... - Page 3 FirstVu™ HD Operation Guide 860-00177-00 REV D & B ..........................5-9 EMORY ATTERY LERTS Memory Alerts: .............................5-9 Battery Alerts: ..............................5-9 Battery Replacement: ...........................5-9 SECTION - 6 STATUS INDICATORS ........................6-1 SECTION - 7 SPECIFICATIONS ..........................7-1 SECTION - 8 WARRANTY INFORMATION ......................8-1 ...
-
Page 4: Section - 1 Introduction
FirstVu™ HD Operation Guide 860-00177-00 REV D Section - 1 Introduction The FirstVu™ HD is a Professional, Evidentiary, Wearable, Mountable, and Weather- Resistant Digital Video System. Record video and audio, evidence wherever the job requires, day or night while also collecting useful information such as a date/time stamp, and marks (video bookmarks). -
Page 5: Parts And Accessories List
Cable, USB 2.0 Type A to Mini-B, 3.3 ft. 050-10101-00 Kit, Velcro Mount 050-10090-00 Assembly, Fabric Clip 860-00182-00 FirstVu HD Quick Reference Guide 050-10096-00 Assembly, Button Mount 009-00004-00 Charger, 110Vac wall to USB Type A 009-00005-00 Charger, 12Vdc Auto Plug to USB Type A 135-00398-00 Battery, 3.7V 2200mAh Li-Po... -
Page 6: Section - 2 Getting Started
Battery Charging Information The FirstVu HD should be fully charged before initial use using the AC power outlet or DC auto adapter. With the unit powered off, charge the unit initially for 12~16 hours. -
Page 7: Connecting The Camera
6 hours to the current time to reflect the UTC time. 3. Go to File>Save As and name the file “DATE.txt” 4. Connect your FirstVu HD via the supplied USB cable and transfer the DATE.txt file to the root drive. -
Page 8: Section - 3 Device Configuration - Vuvault
FirstVu HD device. VideoManagerII and previous versions of VuVault will not work with the FirstVu HD. VuVault is used to manage FirstVu HD settings as well as activate your device for use within the system. Before you can configure your device for use within VuVault, the serial number must be added into the system. -
Page 9: Location
REV D A configuration field will be available in the Admin>Settings tab within VuVault once a valid FirstVu HD serial number has been added into the system. These global settings will define how all users will interface with the FirstVu. -
Page 10: Settings
The Pre-Event Time option allows you to set the amount of time for the pre- event buffer. The FirstVu HD will buffer the last 0-60 seconds of audio and video so it can be recorded during a record event. If set for 0 seconds, pre- event function will be disabled. -
Page 11: Data Transfer
Activating your FirstVu HD within VuVault The Media Card Administration function is used to erase, format, and activate the FirstVu HD internal memory to be ready for use with VuVault. Digital Ally, Inc. | Device Configuration - VuVault... - Page 12 FirstVu™ HD Operation Guide 860-00177-00 REV D The FirstVu HD must be connected to the VuVault workstation via USB port. Make sure your device is powered on and in the Standby mode. 1. Select Media Card Admin from the Admin navigation bar.
- Page 13 FirstVu™ HD Operation Guide 860-00177-00 REV D Digital Ally, Inc. | Device Configuration - VuVault...
-
Page 14: Section - 4 Device Configuration - Mini Configuration Manager
The Mini Configuration Manager software is used to manage FirstVu HD settings as well as activate a FirstVU HD device or an external memory card for use in a FirstVu HD (non-VuVault installations). Various configurable items can be adjusted to meet your specific setting requirements. -
Page 15: Location
FirstVu™ HD Operation Guide 860-00177-00 REV D Device Configuration Press the button to create or edit a device configuration. The default device configuration screen will then be available for editing. Use the drop down arrows to make your selections. Location Time Zone The local time zone is used to adjust the device when synchronizing to the Greenwich Mean Time. -
Page 16: Settings
The Pre-Event Time option allows you to set the amount of time for the pre- event buffer. The FirstVu HD will buffer the last 0-60 seconds of audio and video so it can be recorded during a record event. If set for 0 seconds, pre- event function will be disabled. -
Page 17: Save Configuration File
FirstVu HD, reboot the device by turning the power OFF then ON. After the configuration file is copied, reboot your FirstVu HD. It is now configured & ready for use. Digital Ally, Inc. | Device Configuration – Mini Configuration Manager... -
Page 18: Section - 5 Operation
Video Recording Start Recording Once the FirstVu HD is powered on, press and release the Record Button at any time. The DVR unit will emit a vibration pulse, and the red LED status indicator on top of the camera will be lit continuously (if configured) during the recording. -
Page 19: Uploading Files To A Computer
Uploading Files using VuVault Non-Secure USB Port method To upload video files from the FirstVu HD when the Secure USB Port is not enabled, plug the supplied USB cable into the computer USB port and insert the other end of the cable into the FirstVu™... - Page 20 860-00177-00 REV D 2. Click the Source button. ‘A dialogue box will appear allowing you to select the appropriate location of your FirstVu HD. The system will verify the files to be uploaded. If event files are being uploaded from a device that is not recognized by the system, the user will be prompted to add them with the built-in Add Device Wizard by clicking on Define Device in the lower right-hand corner of the Device Event Details pane.
-
Page 21: Secure Usb Port Method
FirstVu™ HD cannot record while it is uploading or downloading files. Secure USB Port Method To manually upload video files from the FirstVu HD when the Secure USB Port is enabled, plug the supplied USB cable into the computer USB port and insert the other end of the cable into the FirstVu™... - Page 22 FirstVu HD User’s Guide 860-00177-00 REV D 2. Use the arrow key to highlight and choose your device serial number. Then press refresh. VuVault will load the available recordings from your device and verify the files to be uploaded. If event files are being uploaded from a device that is not recognized by the system, the user will be prompted to add them with the built-in Add Device Wizard by clicking on Define Device in the lower right-hand corner of the Device Event Details pane.
- Page 23 5. After the upload process finishes, the uploaded files will be available for viewing in the My Dashboard, and Search screens. For more information, consult the VuVault User’s Guide. FirstVu HD™ cannot record while it is uploading or downloading files. Digital Ally, Inc. | Operation...
-
Page 24: Video Playback And Management
FirstVu HD User’s Guide 860-00177-00 REV D Video Playback and Management Using VuVault VuVault is Digital Ally’s robust back-office video management solution. The VuVault media player can be opened by double-clicking on a video entry in My Dashboard or Search screens, or by selecting Play from the right-click menu. -
Page 25: Toolbar Controls
FirstVu HD User’s Guide 860-00177-00 REV D Toolbar Controls Browse Media: Browse and select event files (.mtd) to playback. Save Media: Save changes or segment a video event. Segmenting the video allows you to create a new video without altering the original video. -
Page 26: View Selection And Options
15 minutes of recording time remaining based on battery power level. Battery Replacement: Always power off the FirstVu HD prior to removing the battery. Replacement batteries may be obtained by contacting Digital Ally (PN# 135-00398-00) Digital Ally, Inc. | Operation... -
Page 27: Section - 6 Status Indicators
860-00177-00 REV D Section - 6 Status Indicators Status indicators and vibration pulses are used to indicate the operational status of the FirstVu HD. The status indicators are located on the top of the camera module and main module. Blue... -
Page 28: Section - 7 Specifications
FirstVu HD User’s Guide 860-00177-00 REV D Section - 7 Specifications OPERATING -20° to +70° C TEMPERATURE STORAGE -40° to +80° C TEMPERATURE 2 5/8”(w) x 4”(h) x 5/8”(d) (Main Recorder) DIMENSIONS 1 1/8”(w) x 1 1/2”(h) x 1.0”(d) (Camera Module) 3.1 oz. -
Page 29: Section - 8 Warranty Information
STANDARD LIMITED WARRANTY FIRSTVU HIGH DEFINITION COMPACT PERSONAL VIDEO RECORDER. We warranty that our personal video recorder, Model FirstVu HD, will be free from defects in workmanship and material for a period of 12 months from the date of purchase by the original purchaser. -
Page 30: Section - 9 Contact Information
FirstVu HD User’s Guide 860-00177-00 REV D Section - 9 Contact Information 9705 Loiret Blvd Lenexa, KS 66219 Website: www.digitalallyinc.com Support E-Mail: support@digitalallyinc.com Sales E-Mail: sales@digitalallyinc.com Phone: 913-814-7774 Fax: 913-814-7775 Sales / Support Toll Free: 1-800-440-4947 Digital Ally, Inc. | Contact Information... -
Page 31: Section - 10 Regulatory
Reorient or relocate the receiving antenna. Increase the separation between the user equipment and FirstVu HD. Connect the user equipment into an outlet on a circuit different from that to which the FirstVu HD is connected. - Page 32 FirstVu HD User’s Guide 860-00177-00 REV D...
