Digital-Ally DVM-100 Installation Manual

Digital in-vehicle event recorder video system
Hide thumbs
Table of Contents

Advertisement

Quick Links

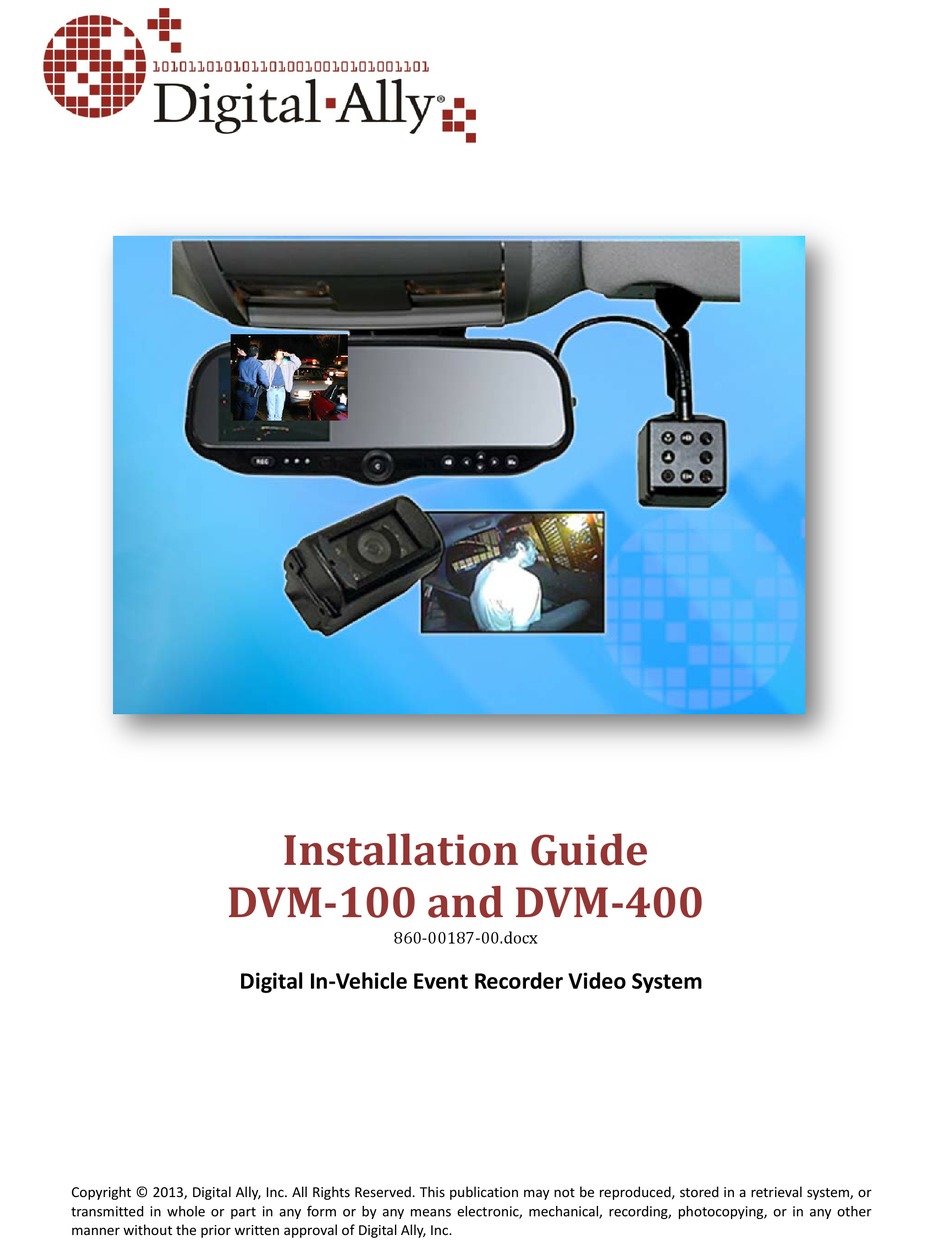

Installation Guide

DVM-100 and DVM-400
860-00187-00.docx
Digital In-Vehicle Event Recorder Video System
Copyright © 2013, Digital Ally, Inc. All Rights Reserved. This publication may not be reproduced, stored in a retrieval system, or
transmitted in whole or part in any form or by any means electronic, mechanical, recording, photocopying, or in any other
manner without the prior written approval of Digital Ally, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVM-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Digital-Ally DVM-100

Summary of Contents for Digital-Ally DVM-100

  • Page 1: Installation Guide

    Installation Guide DVM-100 and DVM-400 860-00187-00.docx Digital In-Vehicle Event Recorder Video System Copyright © 2013, Digital Ally, Inc. All Rights Reserved. This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or part in any form or by any means electronic, mechanical, recording, photocopying, or in any other...

  • Page 2: Table Of Contents

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Table of Contents SECTION - 1: BEFORE YOU BEGIN ....................1-1 ............................ 1-1 OOLS EEDED ........................1-1 AUTIONS AND OTES SECTION - 2: PARTS, CABLES AND ACCESSORIES..............2-1 DVM-100 ............................2-1 Parts and Accessories List ......................2-1 Cables and Optional Accessories ....................

  • Page 3: Before You Begin

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Section - 1: Before you Begin This document covers the installation of the DVM-100 and DVM-400 systems only. Tools Needed • • #2 Phillips head screwdriver 1/8" (4 mm) flat-blade screwdriver •...

  • Page 4: Parts And Accessories List

    DVM-100 Parts and Accessories List The diagram and table below outline the parts that are included with the DVM-100 Package. Cables and optional accessories are not included in the base DVM-100 package and are ordered separately. Refer to page 2-2 for a list of these items.

  • Page 5: Cables And Optional Accessories

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Cables and Optional Accessories The table below outlines cables and optional accessories for the DVM-100 package. Part Number Image Description 001-00010-00 Wi-Fi Assembly 002-05030-00 Drop Mount 002-05102-00 Big Ball Mirror Mount 004-09058-00...

  • Page 6: Dvm-100 Wiring Diagram

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A DVM-100 Wiring Diagram Optional Wi-fi Antenna Wireless microphone and charger Copyright © 2013 Digital Ally, Inc.

  • Page 7: Dvm-400

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A DVM-400 Parts and Accessories List The diagram and table below outline the parts that are included with the DVM-400 Package. Cables and optional accessories are not included in the base DVM-400 package;...

  • Page 8: Cables And Optional Accessories

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Cables and Optional Accessories The table below outlines cables and optional accessories for the DVM-400 package Part Number Image Description 001-00010-00 Wi-Fi Assembly 002-05030-00 Drop Mount 002-05102-00 Big Ball Mirror Mount 004-09058-00...

  • Page 9: Dvm-400 Wiring Diagram

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A DVM-400 Wiring Diagram Optional Wi-fi Antenna Fuse Rear Camera Front Camera Wireless microphone and charger Copyright © 2013 Digital Ally, Inc.

  • Page 10: Installation Instructions

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Section - 3: Installation Instructions Step 1: Factory Mirror Removal The current factory rearview mirror must be removed from the windshield mounting plate. There are several versions of mirror mounting systems. Below are the most common methods of rearview mirror removal.

  • Page 11: Step 2: Dvm Installation

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Step 2: DVM Installation 1. remove front passenger side threshold 2. pull the door seal away and remove side trim piece 3. remove the passenger side front interior A-pillar cover Copyright © 2013 Digital Ally, Inc.

  • Page 12: Step 3: Mirror Connections

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A 4. remove the passenger visor clip with #20 Torx screwdriver 5. remove the passenger side kick panel & pull back the carpet to expose the vehicle chassis Mirror Connections Step 3: Attach the ACC and PWR IN cables to the back of the mirror. For DVM-400, attach the CAM IN cable.
  • Page 13 DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Secure your DVM to the vehicle windshield. For 2011 or 2012 Dodge, attach and orientate the adapter to factory windshield as shown. Use Loctite™ to secure the adapter to the factory windshield mounts. Attach drop down bracket as shown.

  • Page 14: Step 4: Camera Installation (Dvm-400 Only)

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A • Attach the visor mount through the visor clip and attach front camera to the mounting plate (DVM-400 only) Camera Installation (DVM-400 Only) Step 4: Front Camera • Route the cable toward the 10x camera and connect to the CAM- 10XC.

  • Page 15: Step 5: Power, Ignition, And Ground Connection

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Power, Ignition, and Ground Step 5: Connection Remove 6 to 7 inches of the outer jacket at the bare end of the power cable. The wire of the DVM power cable should be connected to the vehicle constant +12Vdc. Connect the wire to the ignition switch where +12vdc is only present when the vehicle ignition key is in the ON position.

  • Page 16: Step 7: Wi-Fi Antenna (Optional)

    DVM. Using the included double-sided tape, attach the antenna to an unobstructed location on the windshield below the roofline. Refer to the DVM-100 or DVM-400 operation guide for configuration of the wireless transfer feature. Copyright © 2013 Digital Ally, Inc.

  • Page 17: Testing The Installation

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Section - 4: Testing the Installation 1. Turn the vehicle ignition switch to the ON position, the vehicle does not have to be running. 2. Press and release the DVM power button and the DVM boot-up process will begin; all 3- status indicators will flash in sequence until boot up is complete.

  • Page 18: Support

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Section - 5: Support Software Updates Log on to www.digitalallyinc.com/tech-support.php and Register for an Account to be an Authorized User. By registering you will be able to download all the latest software updates and be notified of future updates.

  • Page 19: Contact Information

    DVM-100 & DVM-400 Installation Guide 860-00187-00 REV A Section - 6: Contact Information 9705 Loiret Blvd Lenexa, KS 66219 Website: www.digitalallyinc.com Support E-Mail: support@digitalallyinc.com Sales E-Mail: sales@digitalallyinc.com Phone: 913-814-7774 Fax: 913-814-7775 Sales / Support Toll Free: 1-800-440-4947 * Specifications subject to change without notice.
