Caution: Each wire pair must be attached to the RJ-45 connectors
Figure B-1 illustrates how the pins on the RJ-45 connector are
numbered. Be sure to hold the connectors in the same orientation
when attaching the wires to the pins.

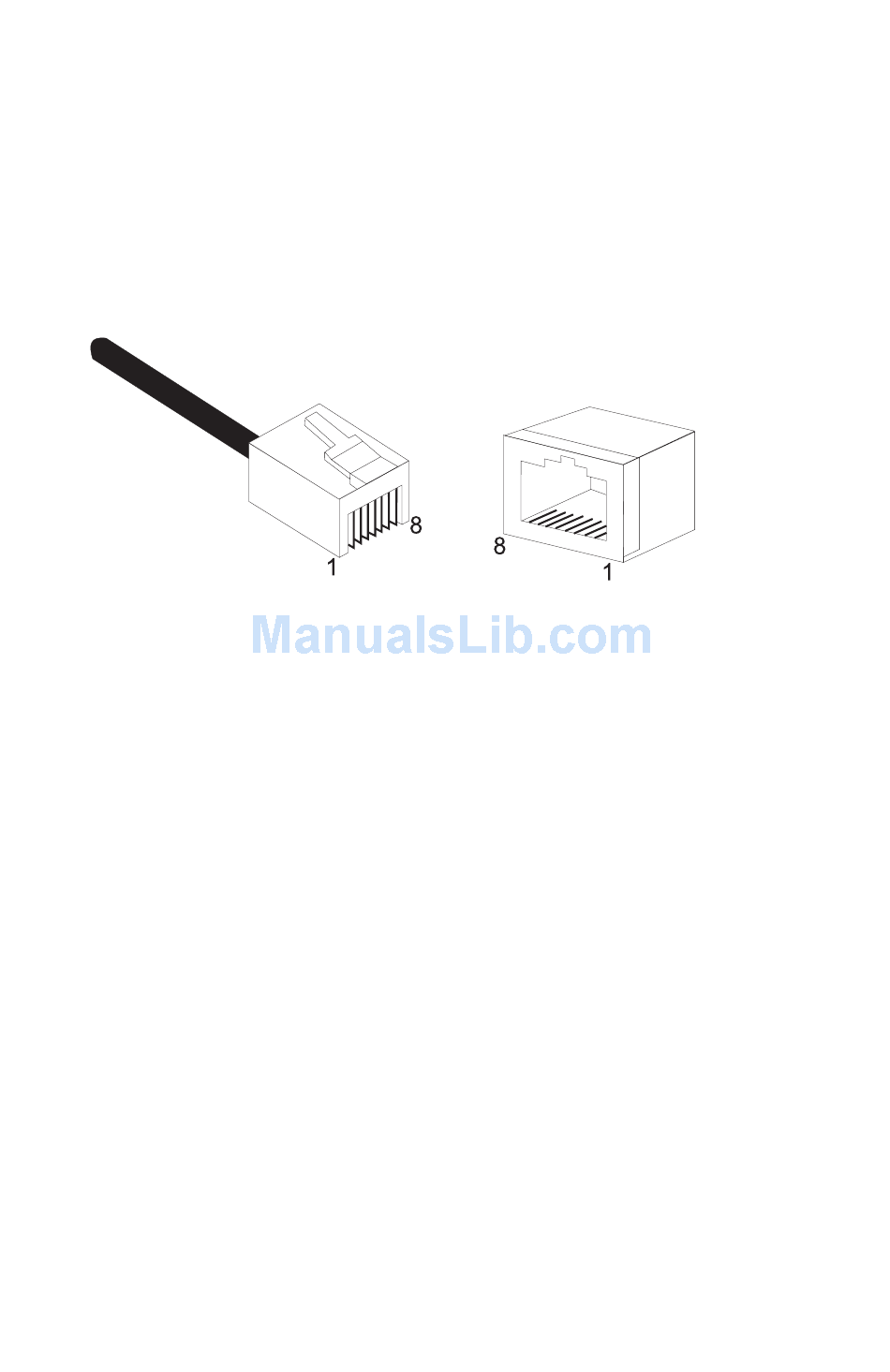

Figure B-1. RJ-45 Connector Pin Numbers
B-2
in a specific orientation.
